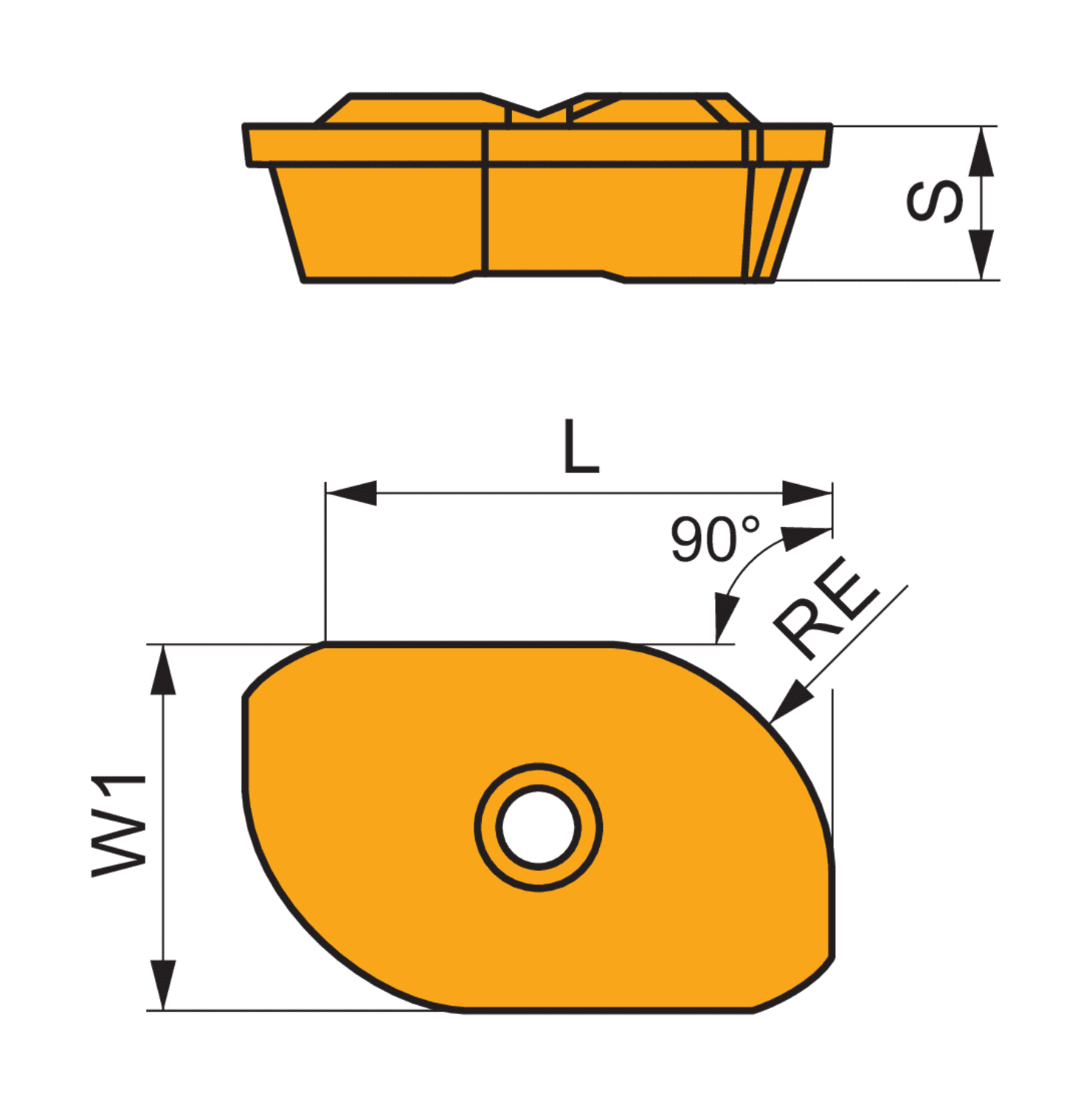

Single-sided milling insert ADKX 15T3, 85° parallelogram for a maximum depth of cut of .3937", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-K and F geometry with rounded cutting edges, M8345 PVD coated WC-Co carbide within ISO-grade ranges P30-P50/M30-M40 and S20-S30 for machining of steel, stainless-steel and superalloy with shoulder mills CAD15
- Product Name ISO: ADKX 15T308ER-F:M8345
- Ordering Code ANSI: ADKX 15T308ER-F:M8345
- EDP Number: 6756225
- Coating: M8345
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 10 |
| Corner Radius (Mm.) | 0.8 |
| Insert Thickness (Mm.) | 3.97 |
| Insert Width (Mm.) | 9.525 |
| Max Depth of Cut (In.) | 0.394 |
| Coating | M8345 |
There are no reviews yet
