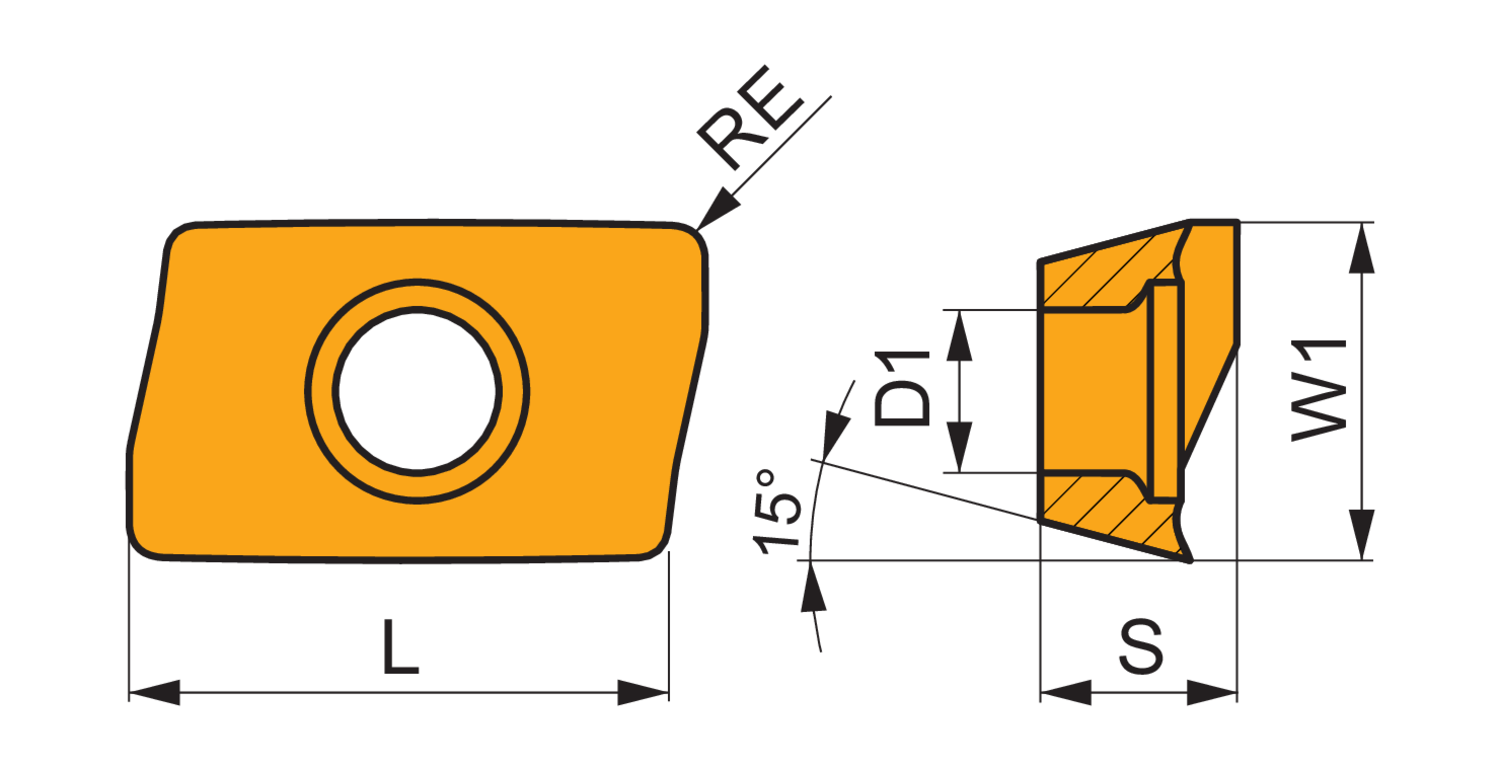

Single-sided milling insert ADMX 0702, 85° parallelogram for a maximum depth of cut of 5.0mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-M and F geometry with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25 -P50 and M20 -M40 for machining of steel and stainless-steel with shoulder mills SAD07D

• Product Name ISO: ADMX 070208SR-F:M8340
• Ordering Code ANSI: ADMX 070208SR-F:M8340
• EDP Number: 7799606
• Coating: M8340
• Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
