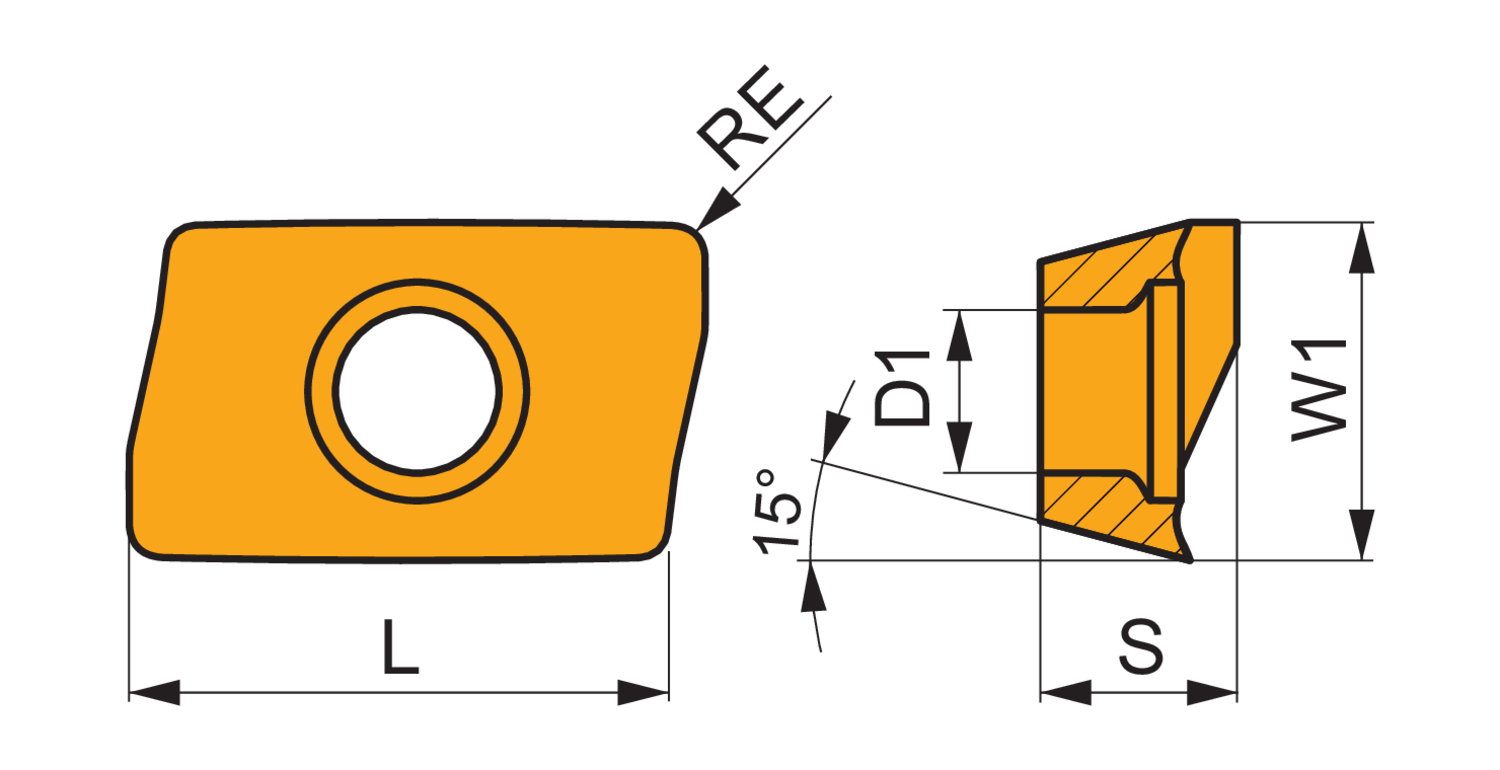

Single-sided milling insert ADMX 0702, 85° parallelogram for a maximum depth of cut of 5.0mm, with 1.6mm corner radius, an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range P20 -P40 for machining of steel with shoulder mills SAD07D

• Product Name ISO: ADMX 070216SR-M:M8330
• Ordering Code ANSI: ADMX 070216SR-M:M8330
• EDP Number: 7799772
• Coating: M8330
• Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
