Single-sided milling insert ADMX 11T3, 85° parallelogram for a maximum depth of cut of .3543", with .0157" corner radius, an indexing accuracy according to ISO-tolerance class-M and F geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range P20-P40 for machining of steel with shoulder mills SAD11E or shoulder mills with extended flute J(T)-SAD11E
- Product Name ISO: ADMX 11T304SR-F:M8330
- Ordering Code ANSI: ADMX 11T304SR-F:M8330
- EDP Number: 7447803
- Coating: M8330
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

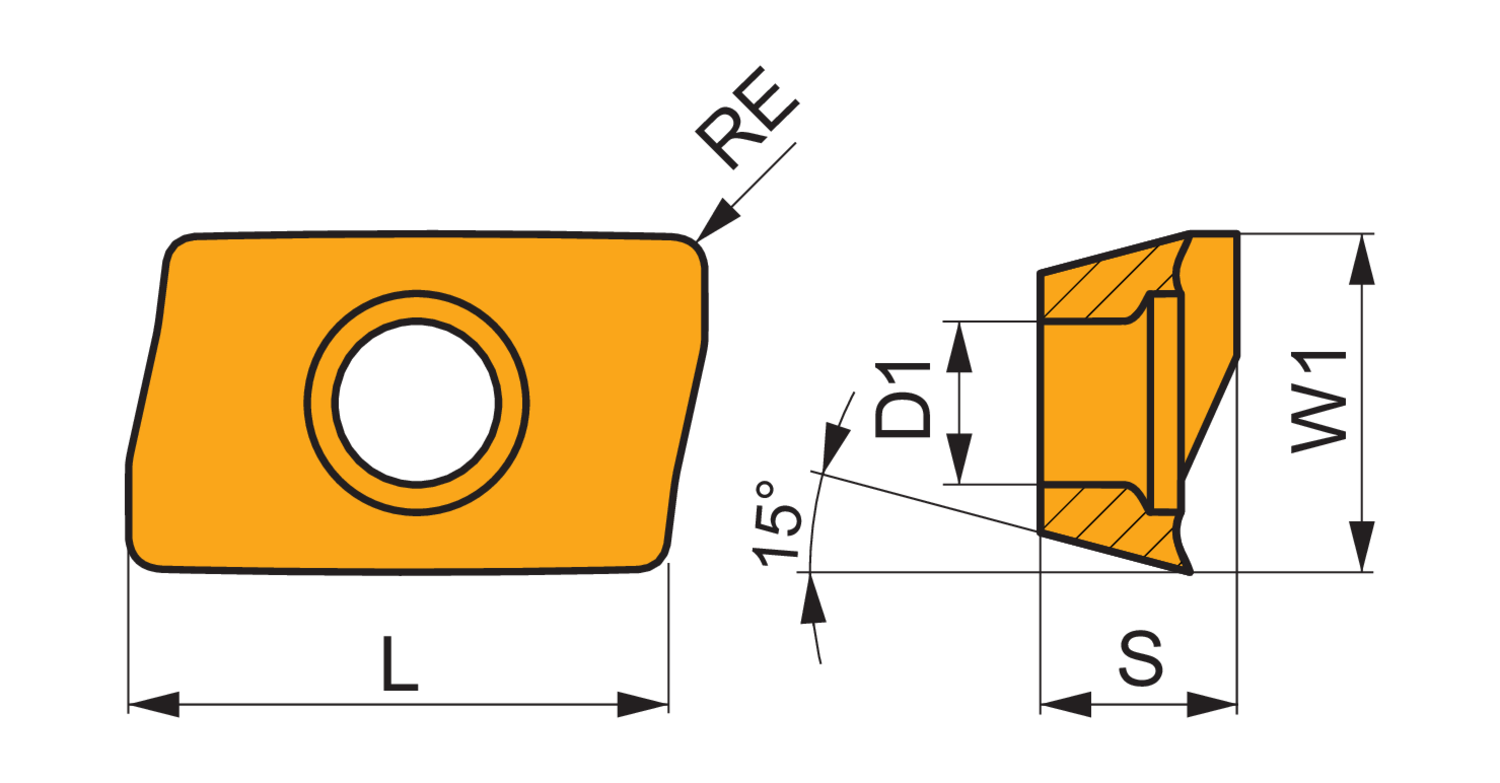

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 9 |
| Corner Radius (Mm.) | 0.4 |
| Fixing Hole Diameter (Mm.) | 2.9 |
| Insert Thickness (Mm.) | 3.97 |
| Insert Width (Mm.) | 6.53 |
| Max Depth of Cut (In.) | 0.354 |
| Coating | M8330 |
