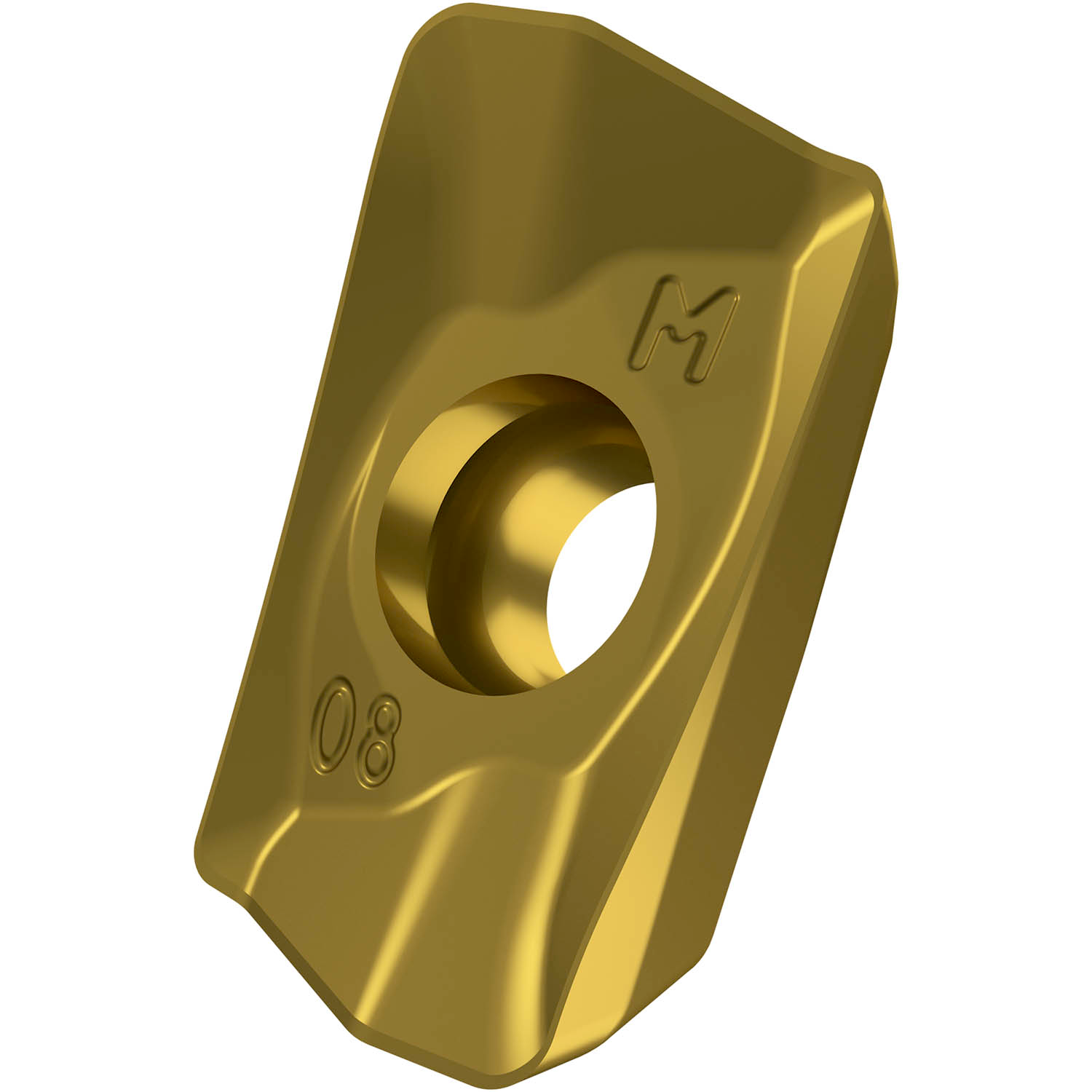

Single-sided milling insert ADMX 11T3, 85° parallelogram for a maximum depth of cut of .3543", with .0984" corner radius, an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P50 and M20-M40 for machining of steel and stainless-steel with shoulder mills SAD11E or shoulder mills with extended flute J(T)-SAD11E
- Product Name ISO: ADMX 11T325SR-M:M8340
- Ordering Code ANSI: ADMX 11T325SR-M:M8340
- EDP Number: 6800772
- Coating: M8340
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |

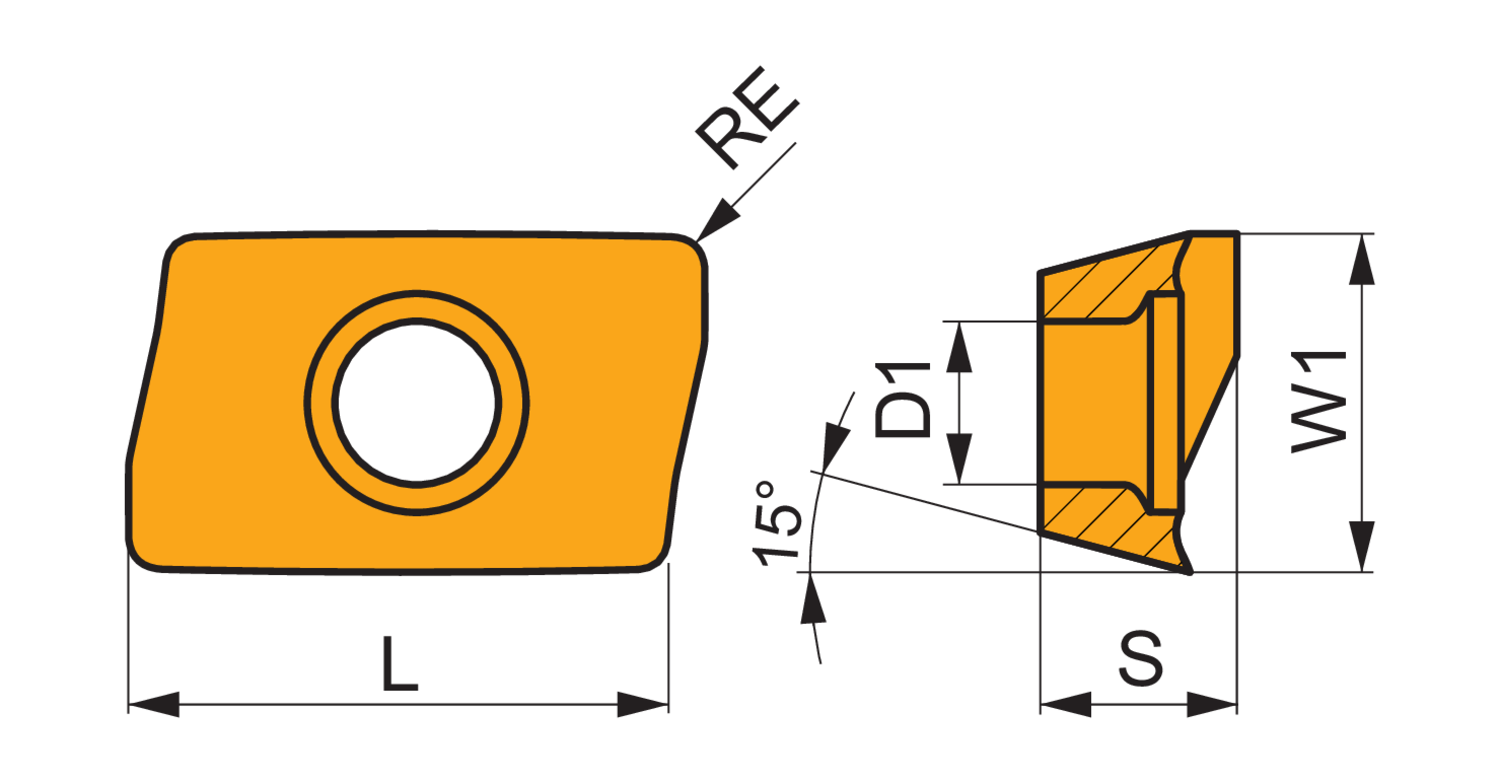

| Depth of Cut Maximum (Mm.) | 9 |
| Corner Radius (Mm.) | 2.5 |
| Fixing Hole Diameter (Mm.) | 2.9 |
| Insert Thickness (Mm.) | 3.97 |
| Insert Width (Mm.) | 6.53 |
| Max Depth of Cut (In.) | 0.354 |
| Coating | M8340 |
