Single-sided milling insert ADMX 1606, 85° parallelogram for a maximum depth of cut of .5118", with .126" corner radius, an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges and facet, M6330 PVD coated WC-Co carbide within ISO-grade range M20-M35 for machining of stainless-steel with shoulder mills SAD16E or shoulder mills with extended flute J(T)-SAD16E
- Product Name ISO: ADMX 160632SR-M:M6330
- Ordering Code ANSI: ADMX 160632SR-M:M6330
- EDP Number: 7601333
- Coating: M6330
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

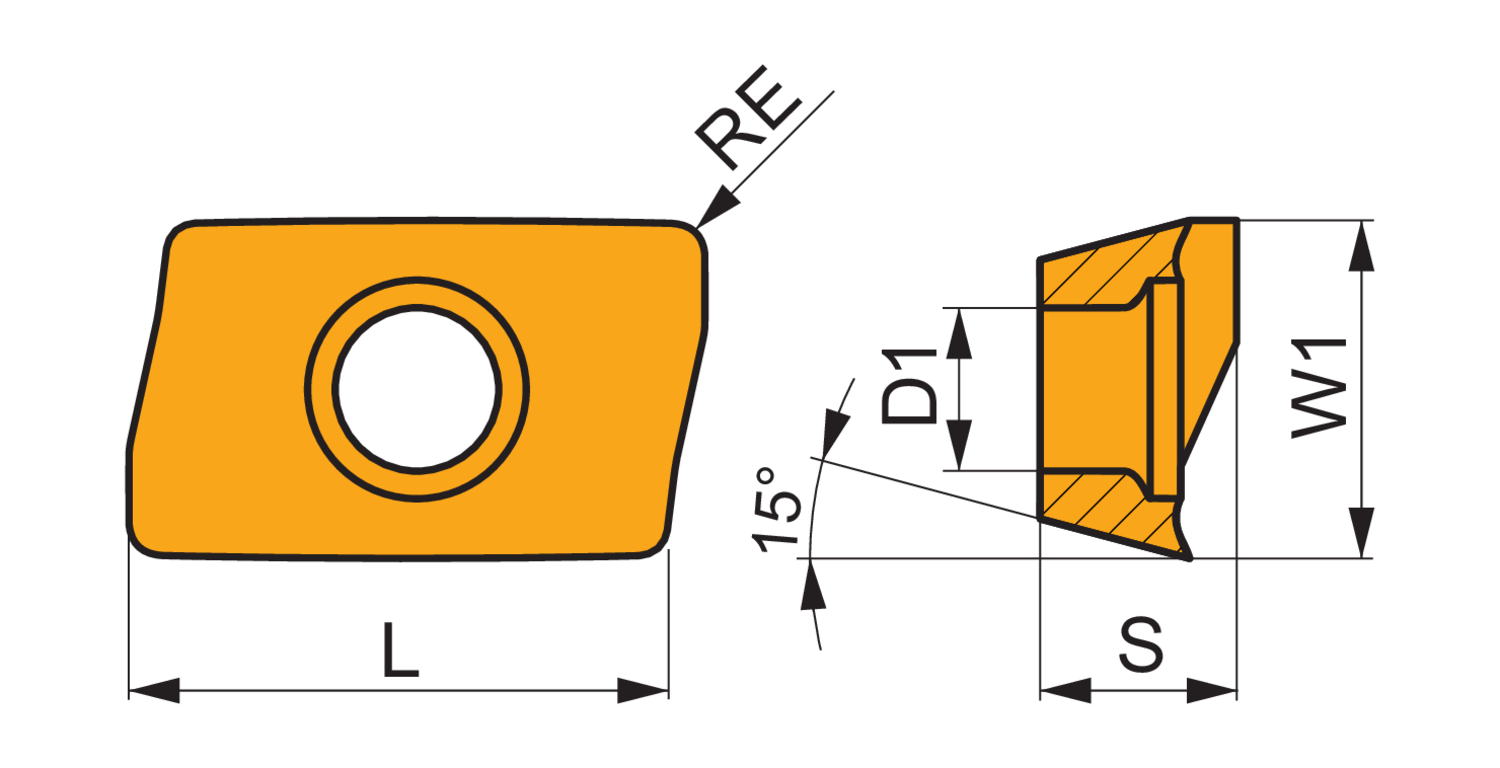

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 13 |
| Corner Radius (Mm.) | 3.2 |
| Fixing Hole Diameter (Mm.) | 4.5 |
| Insert Thickness (Mm.) | 6.25 |
| Insert Width (Mm.) | 9.95 |
| Max Depth of Cut (In.) | 0.512 |
| Coating | M6330 |
