Single-sided milling insert ANHX 10T3, 85° parallelogram for a maximum depth of cut of .1181", with .0787" corner radius, an indexing accuracy according to ISO-tolerance class-H and F geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range P20-P40 for machining of steel with high feed cutters SBN10
- Product Name ISO: ANHX 10T320SR-F:M8330
- Ordering Code ANSI: ANHX 10T320SR-F:M8330
- EDP Number: 7452020
- Coating: M8330
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

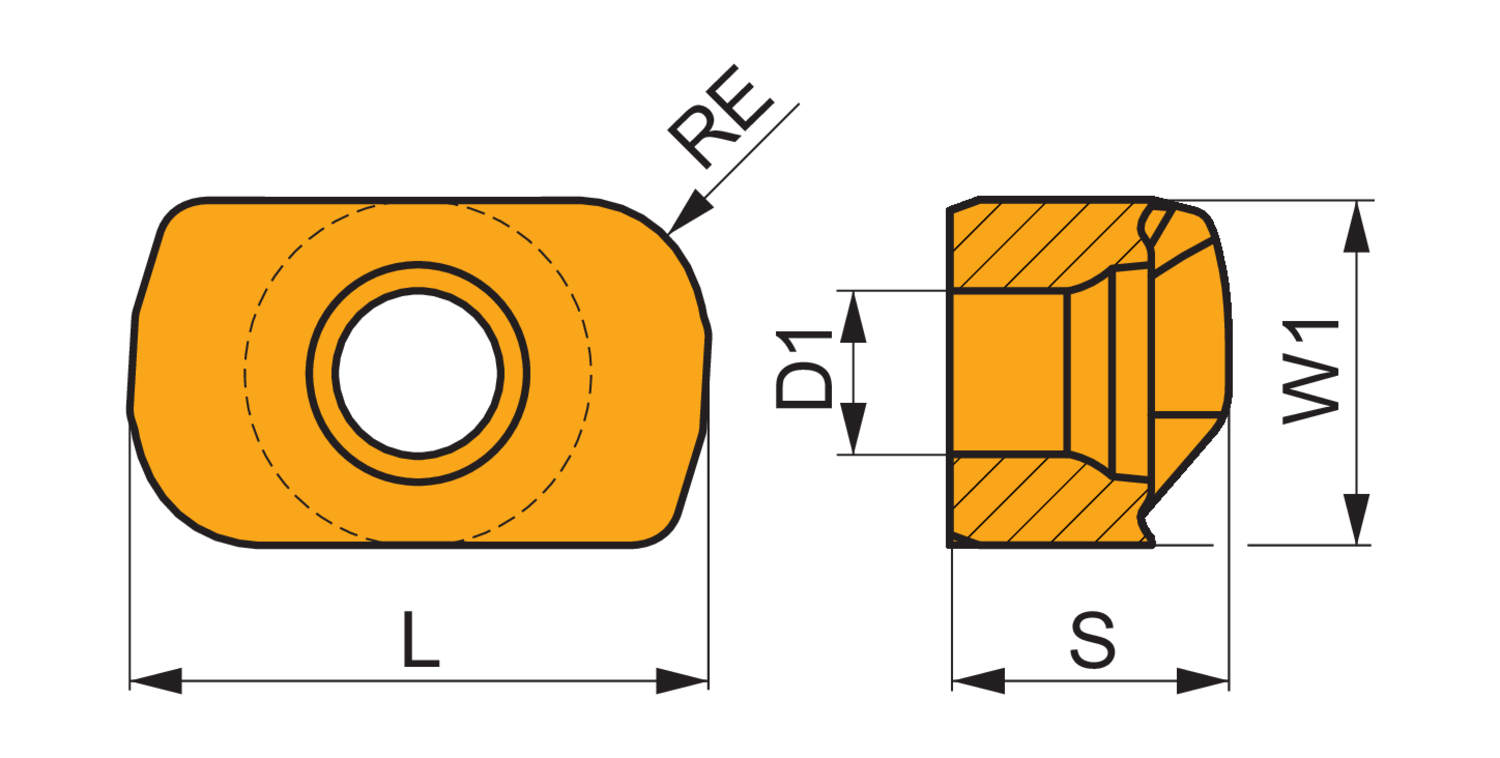

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 3 |
| Corner Radius (Mm.) | 2 |
| Fixing Hole Diameter (Mm.) | 2.76 |
| Insert Thickness (Mm.) | 4.7 |
| Insert Width (Mm.) | 5.8 |
| Max Depth of Cut (In.) | 0.118 |
| Coating | M8330 |
