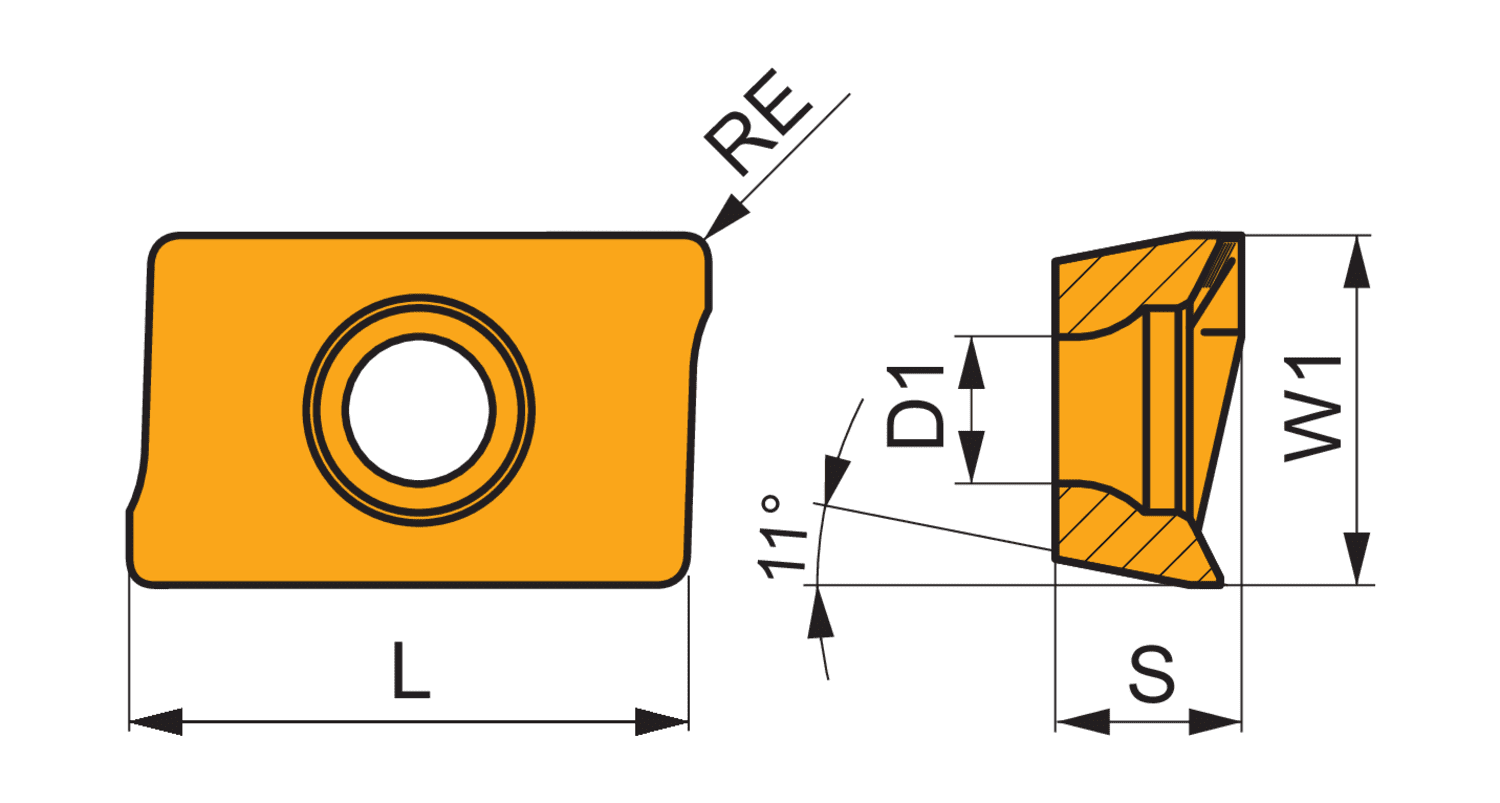

Single-sided milling insert APKT 1003 with chip-breakers, 85° parallelogram for a maximum depth of cut of .3543", with .0197" corner radius, an indexing accuracy according to ISO-tolerance class-K and M geometry with rounded cutting edges, 8215 PVD coated fine grained WC-Co carbide within ISO-grade range K10-K25 for machining of cast-iron with shoulder mills SAP10D
- Product Name ISO: APKT 1003PDER-M:8215
- Ordering Code ANSI: APKT 1003PDER-M:8215
- EDP Number: 6753394
- Coating: 8215
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 9 |
| Corner Radius (Mm.) | 0.5 |
| Fixing Hole Diameter (Mm.) | 2.88 |
| Insert Thickness (Mm.) | 3.5 |
| Insert Width (Mm.) | 6.7 |
| Max Depth of Cut (In.) | 0.354 |
| Coating | 8215 |
