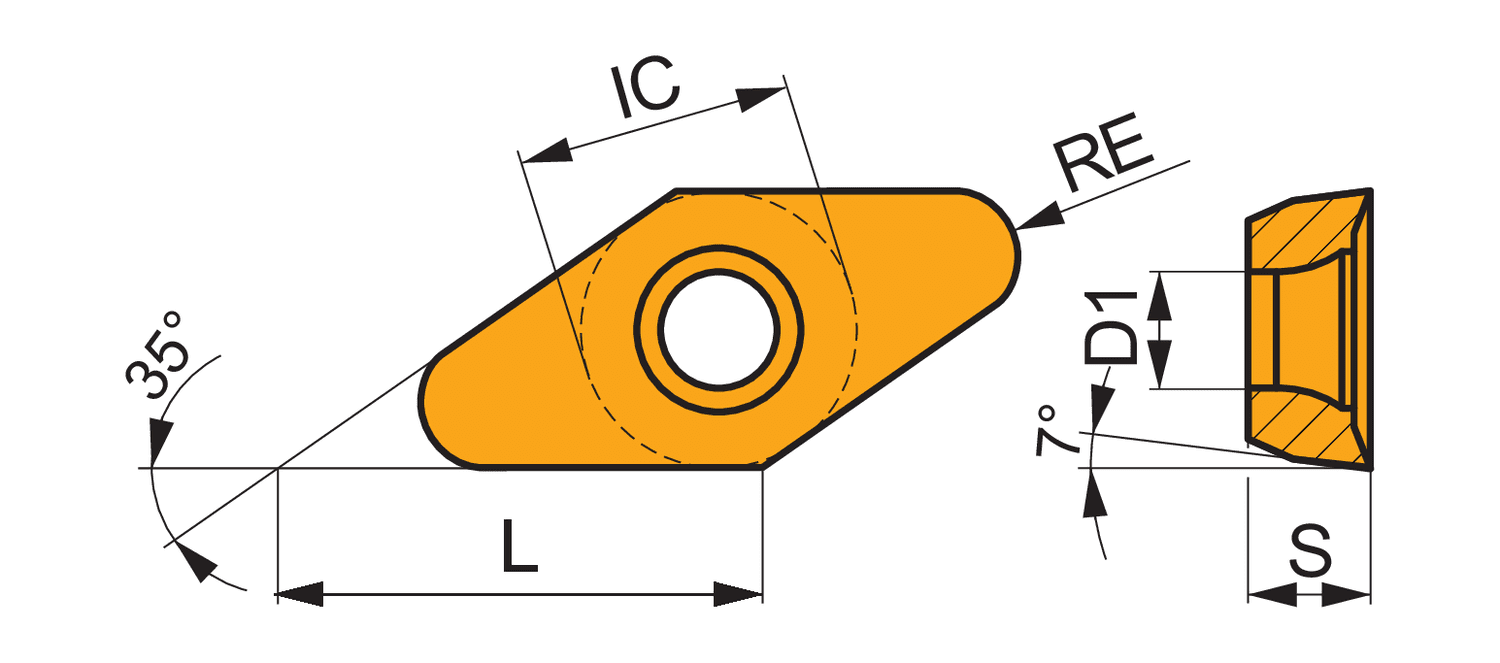

Single-sided milling insert VCGT 2205 with chip-breakers, 35° rhomboid for a maximum depth of cut of .7874", with .0591" corner radius, an indexing accuracy according to ISO-tolerance class-G and FA geometry with sharp cutting edges, HF7 uncoated fine grained WC-Co carbide within ISO-grade range N10-N25 for machining of non-ferrous metal with end mills SVC22C
- Product Name ISO: VCGT 220515F-FA:HF7
- Ordering Code ANSI: VCGT 220515F-FA:HF7
- EDP Number: 6751854
- Coating: HF7
- Material Application Priority Usage: N - Non-ferrous metals (metals including alloys without an appreciable amount of iron)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 20 |
| Corner Radius (Mm.) | 1.5 |
| Fixing Hole Diameter (Mm.) | 5.2 |
| Inscribing Circle Dia. (Mm.) | 12.7 |
| Insert Thickness (Mm.) | 5.5 |
| Max Depth of Cut (In.) | 0.787 |
| Coating | HF7 |
