Single-sided milling insert APMT 1604 with chip-breakers, 85° parallelogram for a maximum depth of cut of .5118", with " corner radius, an indexing accuracy according to ISO-tolerance class-M and R geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron
- Product Name ISO: APMT 1604PDSR-R:M8330
- Ordering Code ANSI: APMT 1604PDSR-R:M8330
- EDP Number: 7447836
- Coating: M8330
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

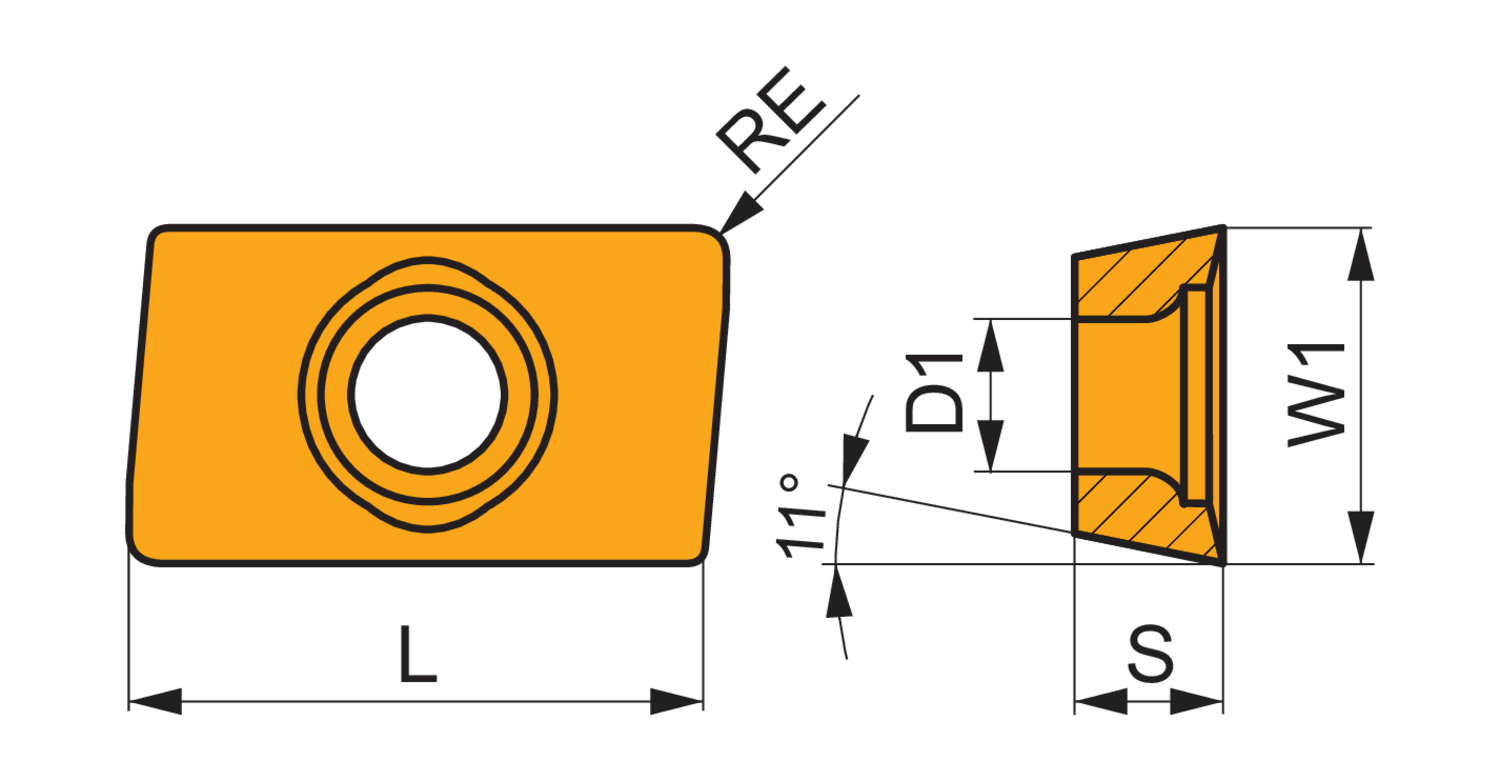

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 13 |
| Fixing Hole Diameter (Mm.) | 4.5 |
| Insert Thickness (Mm.) | 4.76 |
| Insert Width (Mm.) | 9.6 |
| Max Depth of Cut (In.) | 0.512 |
| Coating | M8330 |
