Single-sided milling insert LNET 1606 with chip-breakers, rectangular for a maximum depth of cut of .5906", with .063" corner radius, an indexing accuracy according to ISO-tolerance class-E and R geometry with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade range P25-P50 for machining of steel with shoulder mills with extended flute J(T)-SLSN
- Product Name ISO: LNET 160616SR-R:M8340
- Ordering Code ANSI: LNET 160616SR-R:M8340
- EDP Number: 6801306
- Coating: M8340
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

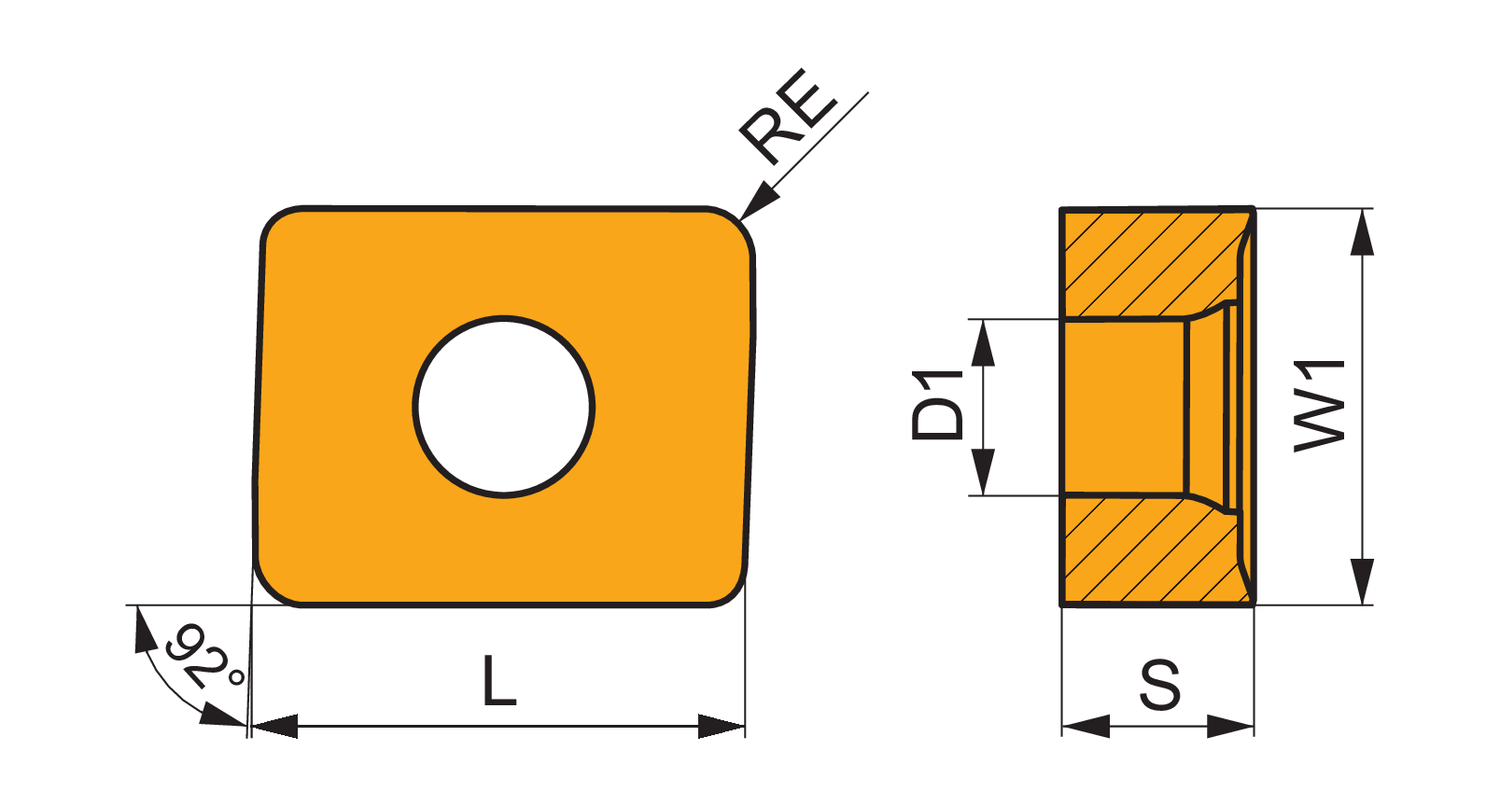

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 15 |
| Corner Radius (Mm.) | 1.6 |
| Fixing Hole Diameter (Mm.) | 5.9 |
| Insert Thickness (Mm.) | 6.38 |
| Insert Width (Mm.) | 13.2 |
| Max Depth of Cut (In.) | 0.591 |
| Coating | M8340 |
