Single-sided milling insert ODEW 0605 with a plane rake surface, octagonal for a maximum depth of cut of .122", with " corner radius, an indexing accuracy according to ISO-tolerance class-E, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range K20-K40 for machining of cast-iron with face mills SOD06D
- Product Name ISO: ODEW 0605ZZN:M8330
- Ordering Code ANSI: ODEW 0605ZZN:M8330
- EDP Number: 7447915
- Coating: M8330
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content)

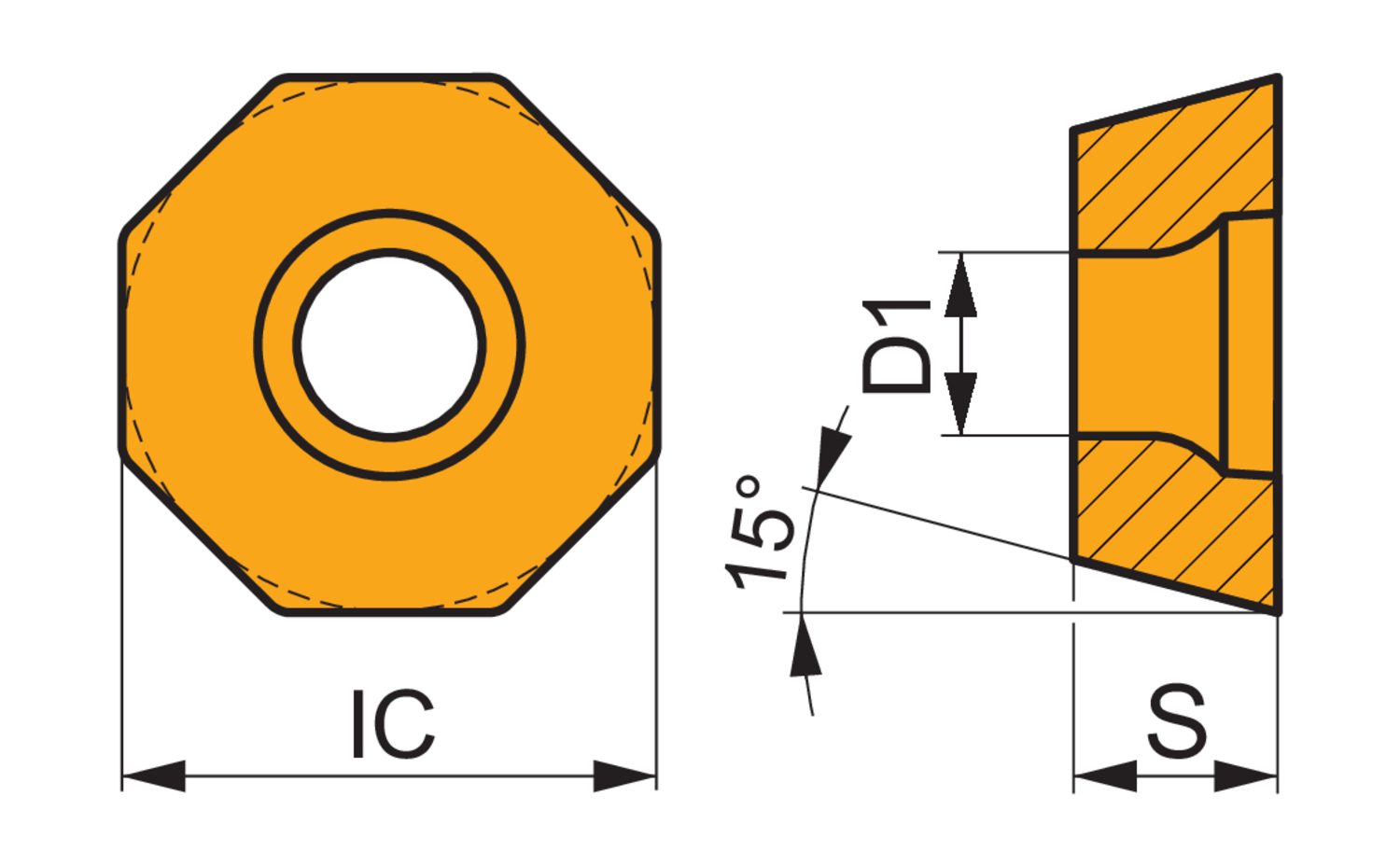

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 3.1 |
| Fixing Hole Diameter (Mm.) | 5.5 |
| Inscribing Circle Dia. (Mm.) | 15.875 |
| Insert Thickness (Mm.) | 5.56 |
| Max Depth of Cut (In.) | 0.122 |
| Coating | M8330 |
