Single-sided milling insert ODKT 0505 with chip-breakers, octagonal for a maximum depth of cut of .1063", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-K and FM geometry with rounded cutting edges and facet, M6330 PVD coated WC-Co carbide within ISO-grade range M20-M35 for machining of stainless-steel with copy face mills SOD05
- Product Name ISO: ODKT 0505ADSR-FM:M6330
- Ordering Code ANSI: ODKT 0505ADSR-FM:M6330
- EDP Number: 7455503
- Coating: M6330
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

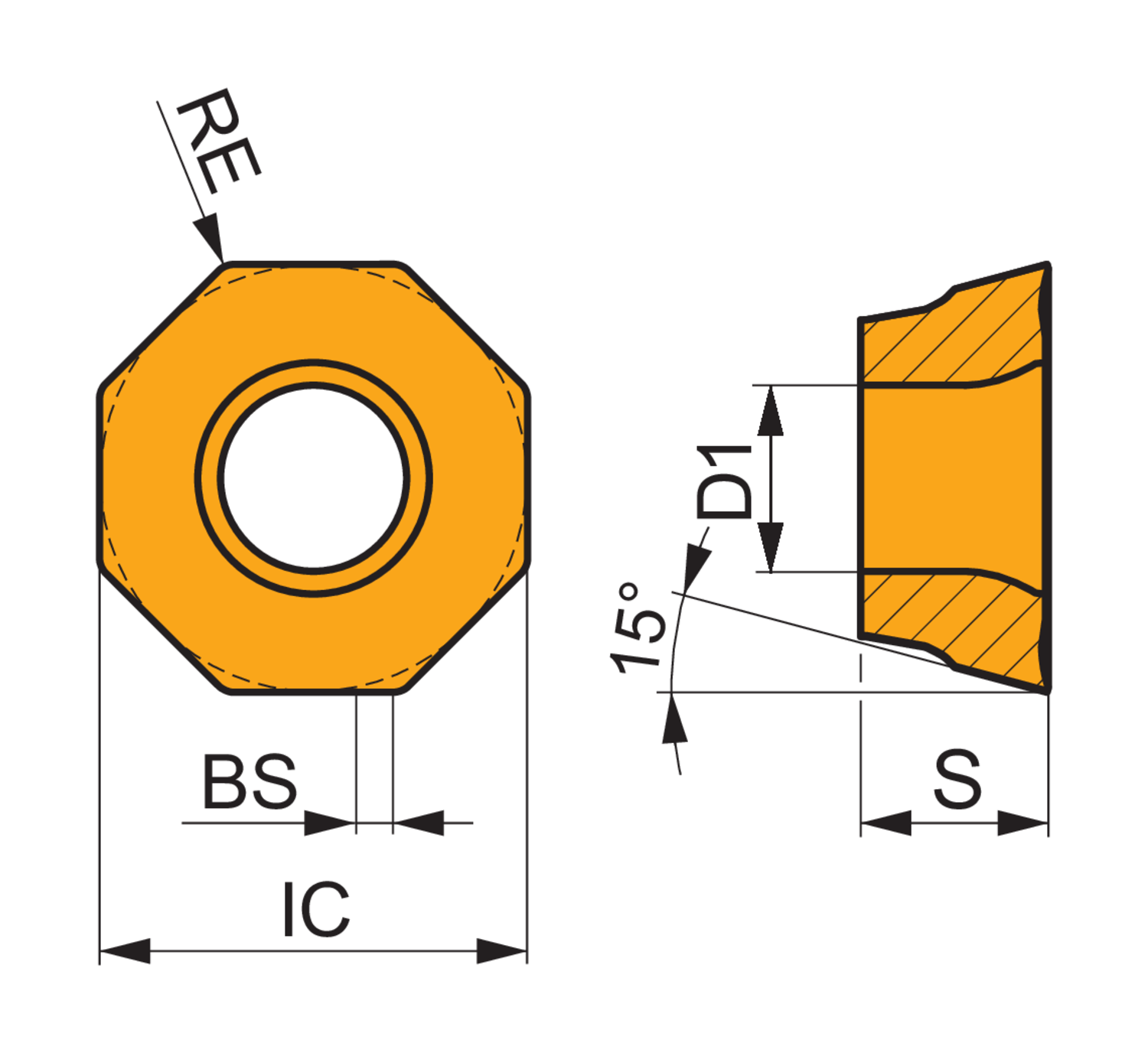

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 2.7 |
| Corner Radius (Mm.) | 0.8 |
| Fixing Hole Diameter (Mm.) | 5.5 |
| Inscribing Circle Dia. (Mm.) | 12.7 |
| Insert Thickness (Mm.) | 5.56 |
| Max Depth of Cut (In.) | 0.106 |
| Coating | M6330 |
