Single-sided milling insert XEHT 0604 with chip-breakers, special shape and wiper design for a maximum depth of cut of .1299", with " corner radius, an indexing accuracy according to ISO-tolerance class-H with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range P20-P40 for machining of steel with face mills SOE06Z
- Product Name ISO: XEHT 0604AESR:M8330
- Ordering Code ANSI: XEHT 0604AESR:M8330
- EDP Number: 7451118
- Coating: M8330
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
Product Measurement Standard | Metric |
Depth of Cut Maximum (Mm.) | 3.3 |

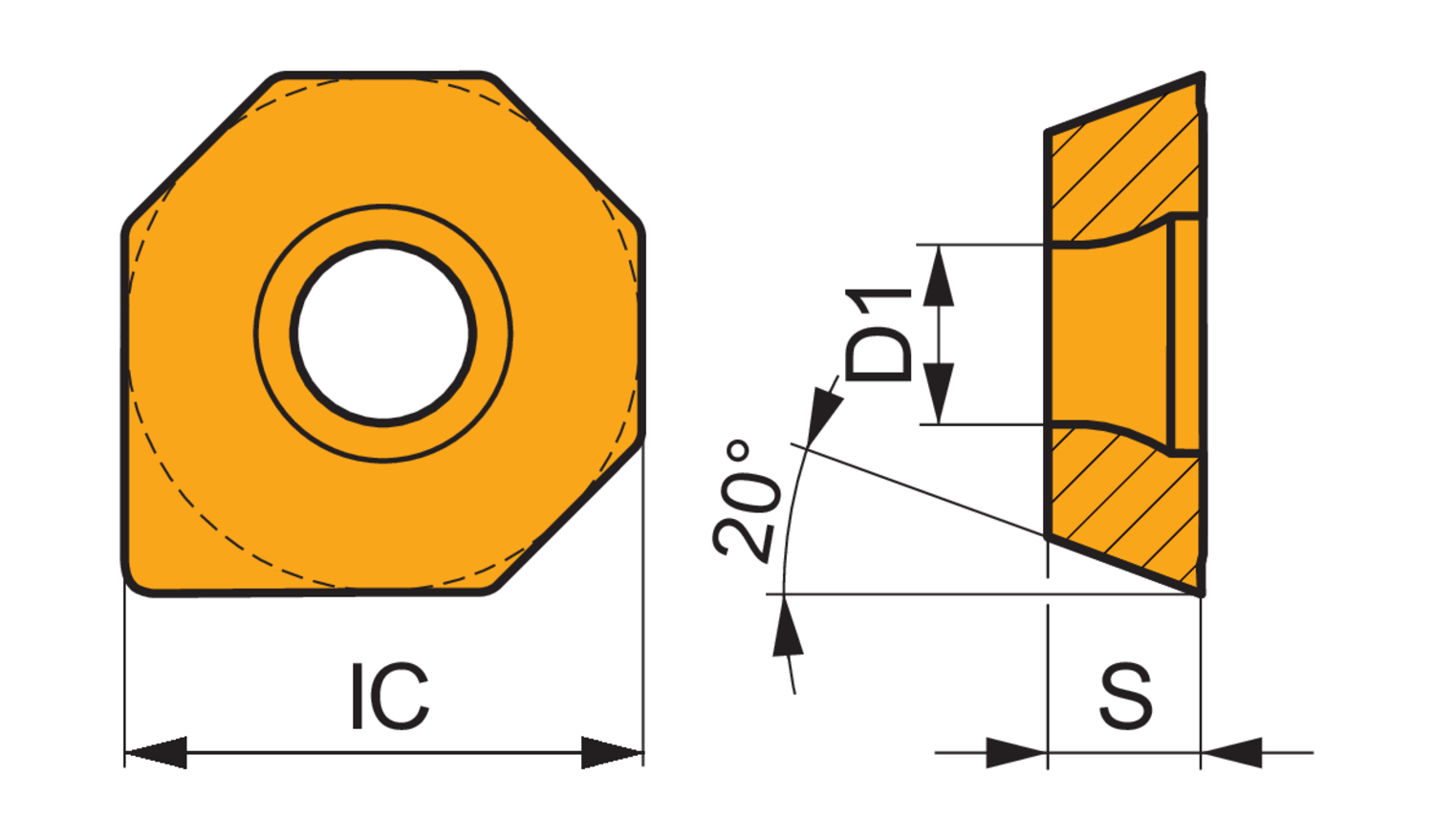

Fixing Hole Diameter (Mm.) | 5.5 |
Inscribing Circle Dia. (Mm.) | 16.05 |
Insert Thickness (Mm.) | 4.76 |
Max Depth of Cut (In.) | 0.13 |
Coating | M8330 |
