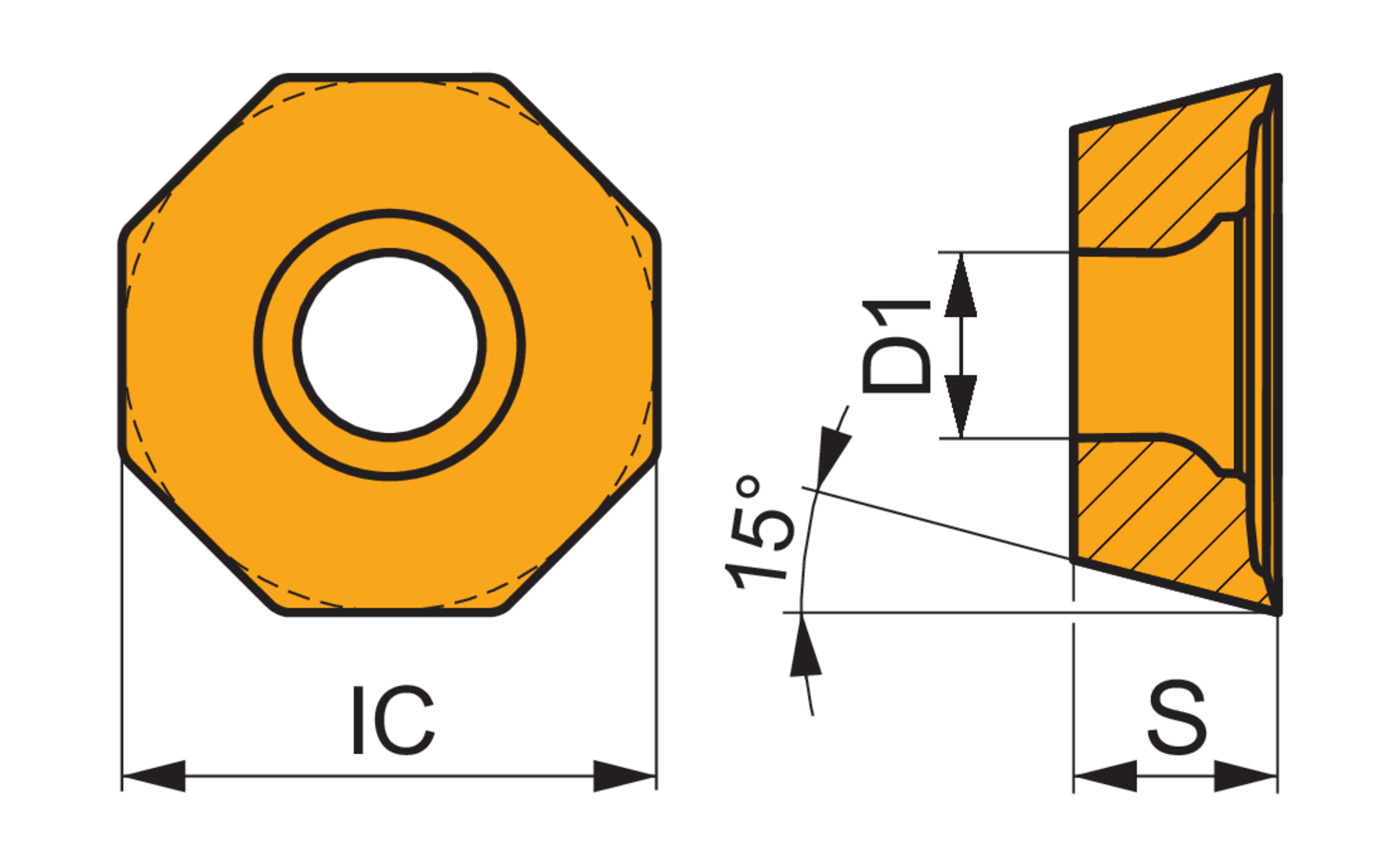

Single-sided milling insert ODMT 0605 with chip-breakers, octagonal for a maximum depth of cut of .122", with " corner radius, an indexing accuracy according to ISO-tolerance class-M, M9325 MT-CVD coated WC-Co carbide for machining of steel with face mills SOD06D
- Product Name ISO: ODMT 0605ZZN:M9325
- Ordering Code ANSI: ODMT 0605ZZN:M9325
- EDP Number: 6754560
- Coating: M9325
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 3.1 |
| Fixing Hole Diameter (Mm.) | 5.5 |
| Inscribing Circle Dia. (Mm.) | 15.875 |
| Insert Thickness (Mm.) | 5.56 |
| Max Depth of Cut (In.) | 0.122 |
| Coating | M9325 |
