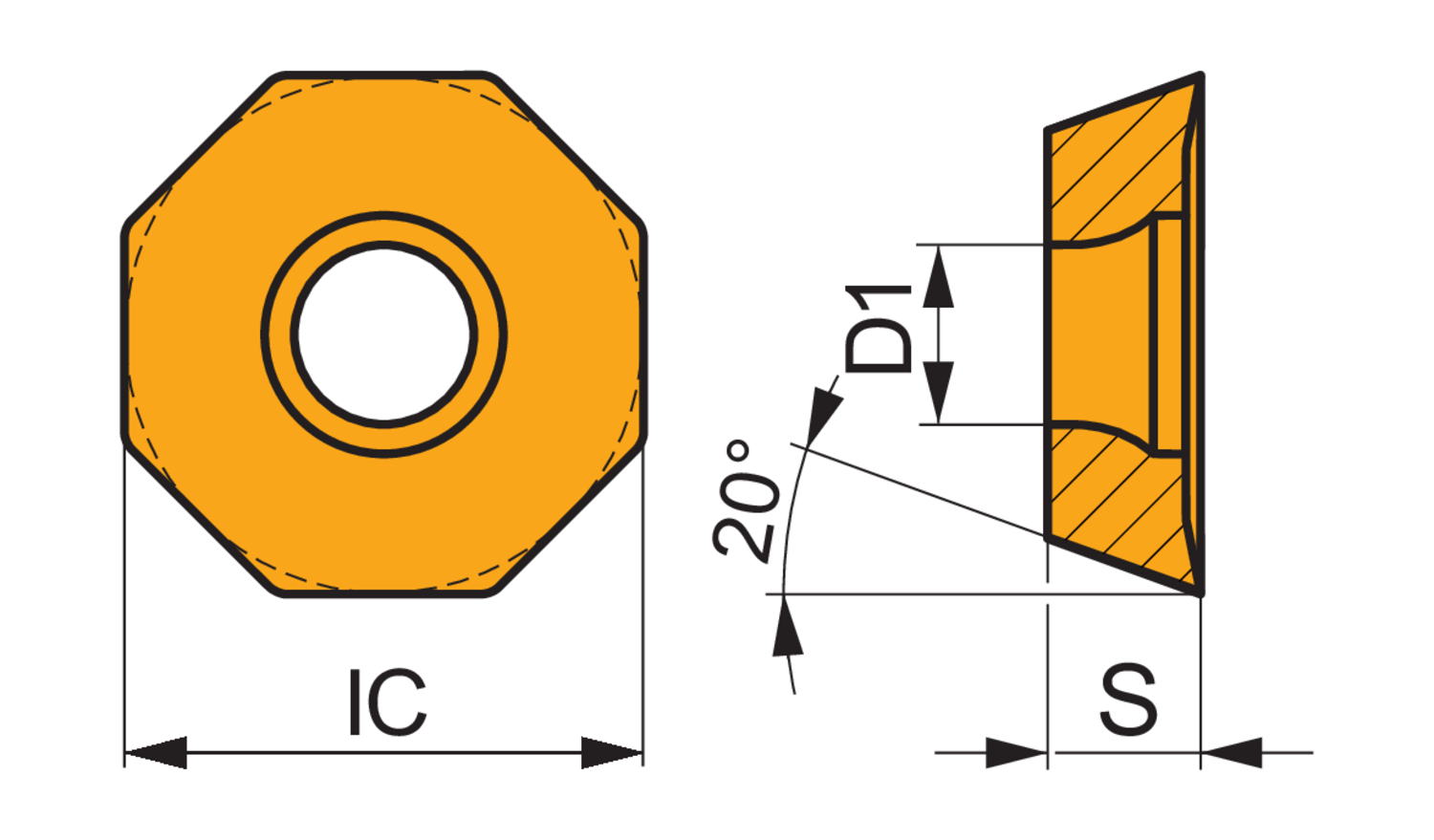

Single-sided milling insert OEHT 0604 with chip-breakers, octagonal for a maximum depth of cut of .1299", with " corner radius, an indexing accuracy according to ISO-tolerance class-H and M geometry with rounded cutting edges and facet, M8310 PVD coated fine grained WC-Co carbide within ISO-grade range P01-P10 for machining of steel with face mills SOE06Z
- Product Name ISO: OEHT 0604AESR-M:M8310
- Ordering Code ANSI: OEHT 0604AESR-M:M8310
- EDP Number: 6931657
- Coating: M8310
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 3.3 |
| Fixing Hole Diameter (Mm.) | 5.5 |
| Inscribing Circle Dia. (Mm.) | 16.05 |
| Insert Thickness (Mm.) | 4.76 |
| Max Depth of Cut (In.) | 0.13 |
| Coating | M8310 |
