Single-sided milling insert OFKR 0704 with chip-breakers, octagonal for a maximum depth of cut of .4724", with " corner radius, an indexing accuracy according to ISO-tolerance class-K and M geometry, M8340 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P50 and M20-M40 for machining of steel and stainless-steel
- Product Name ISO: OFKR 0704SN-M:M8340
- Ordering Code ANSI: OFKR 0704SN-M:M8340
- EDP Number: 6800838
- Coating: M8340
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 12 |
| Fixing Hole Diameter (Mm.) | 2.65 |

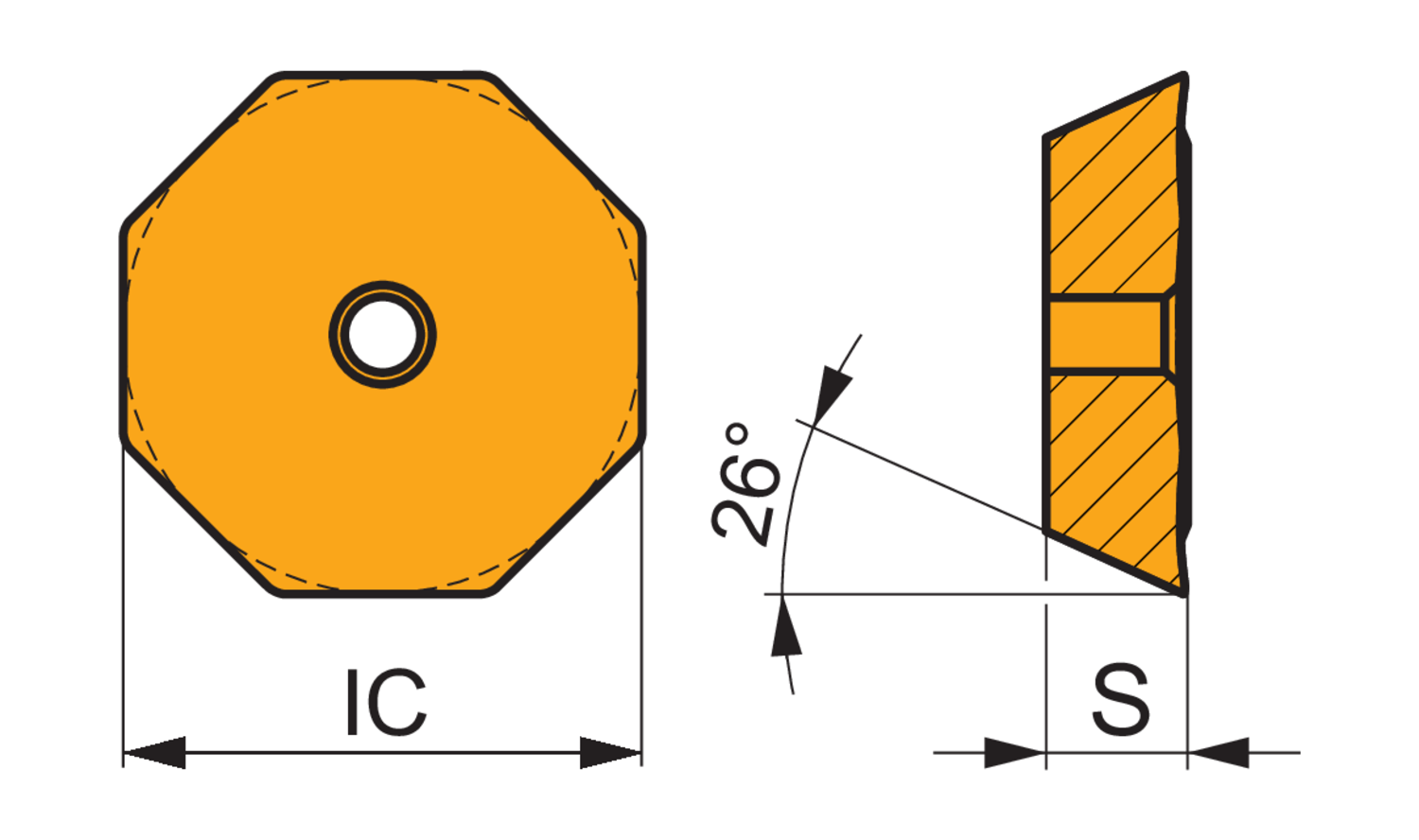

| Inscribing Circle Dia. (Mm.) | 17.845 |
| Insert Thickness (Mm.) | 4.56 |
| Max Depth of Cut (In.) | 0.472 |
| Coating | M8340 |
