Single-sided milling insert RCMT 10T3 with chip-breakers, round for a maximum depth of cut of .1969", with " corner radius, an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P50/M20-M40 and S20-S30 for machining of steel, stainless-steel and superalloy with copy face mills SRC10
- Product Name ISO: RCMT 10T3MOSN-M:M8340
- Ordering Code ANSI: RCMT 10T3MOSN-M:M8340
- EDP Number: 7445884
- Coating: M8340
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)

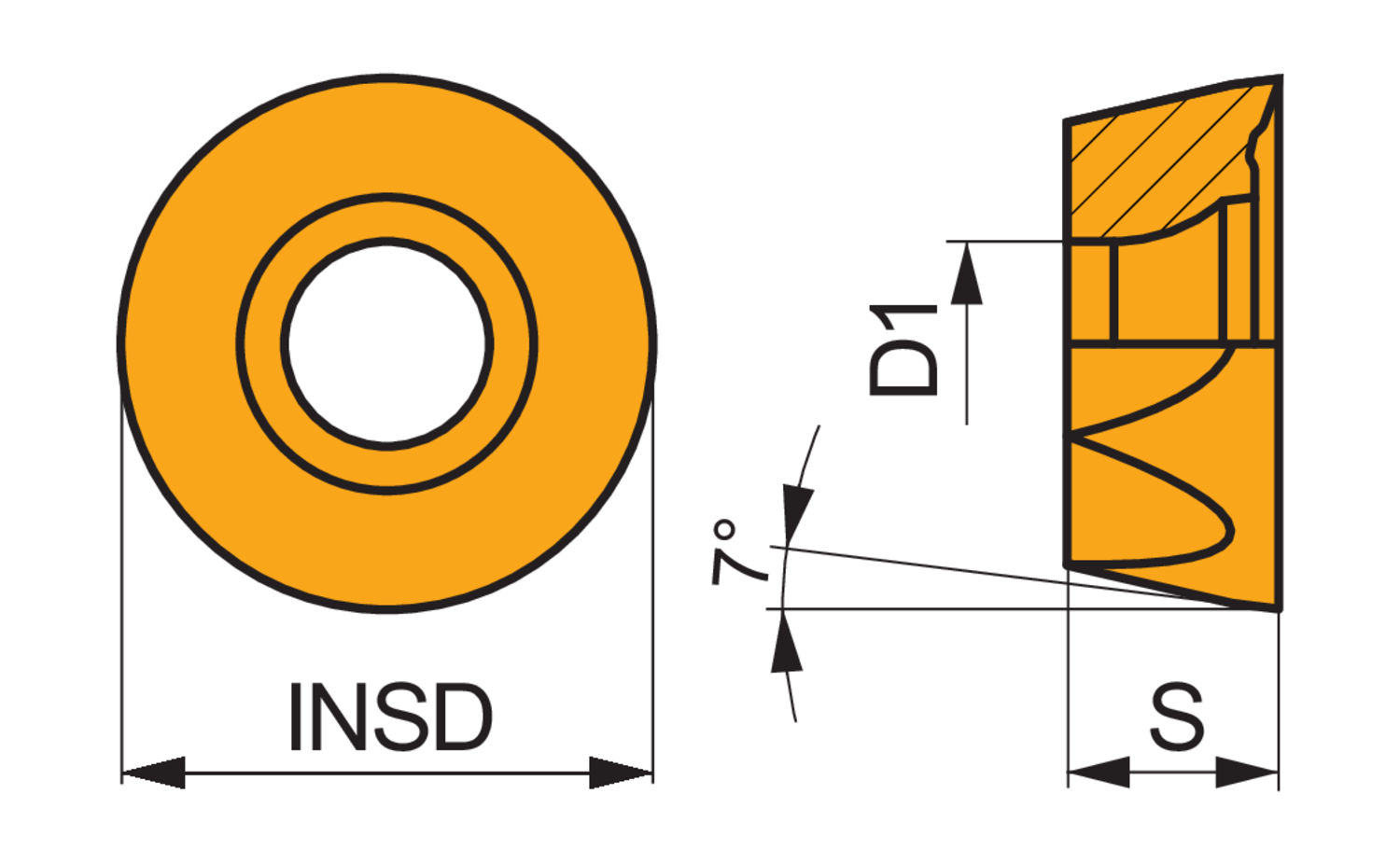

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 5 |
| Fixing Hole Diameter (Mm.) | 3.9 |
| Insert Dia. (Mm.) | 10 |
| Insert Thickness (Mm.) | 3.97 |
| Max Depth of Cut (In.) | 0.197 |
| Coating | M8340 |
