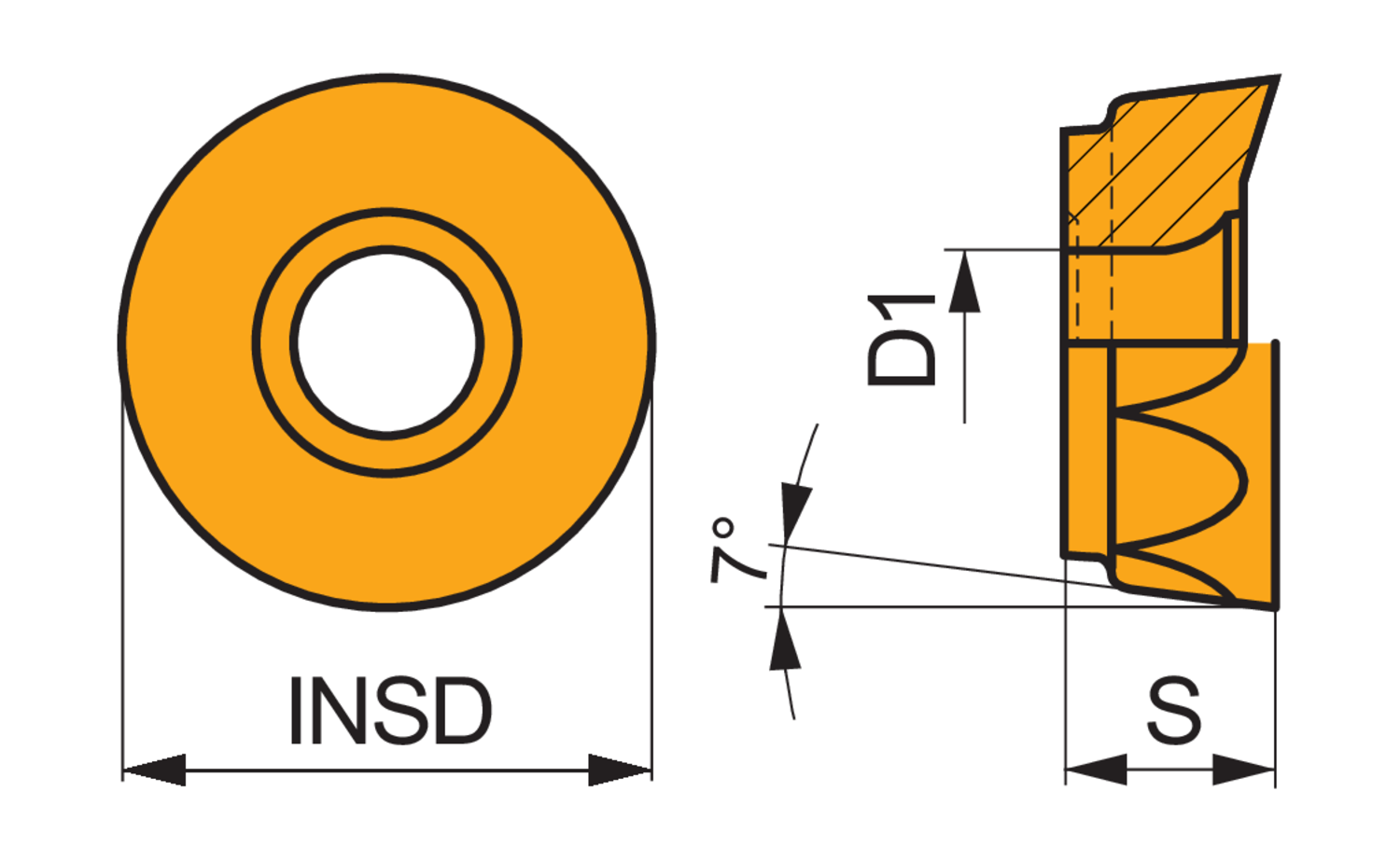

Single-sided milling insert RCMT 1204 with chip-breakers, round for a maximum depth of cut of .2362", with " corner radius, an indexing accuracy according to ISO-tolerance class-M and F geometry with rounded cutting edges, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range P20-P40 for machining of steel with copy face mills SRC12
- Product Name ISO: RCMT 1204MOEN-F:M8330
- Ordering Code ANSI: RCMT 1204MOEN-F:M8330
- EDP Number: 7447939
- Coating: M8330
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 6 |
| Fixing Hole Diameter (Mm.) | 4.4 |
| Insert Dia. (Mm.) | 12 |
| Insert Thickness (Mm.) | 4.76 |
| Max Depth of Cut (In.) | 0.236 |
| Coating | M8330 |
