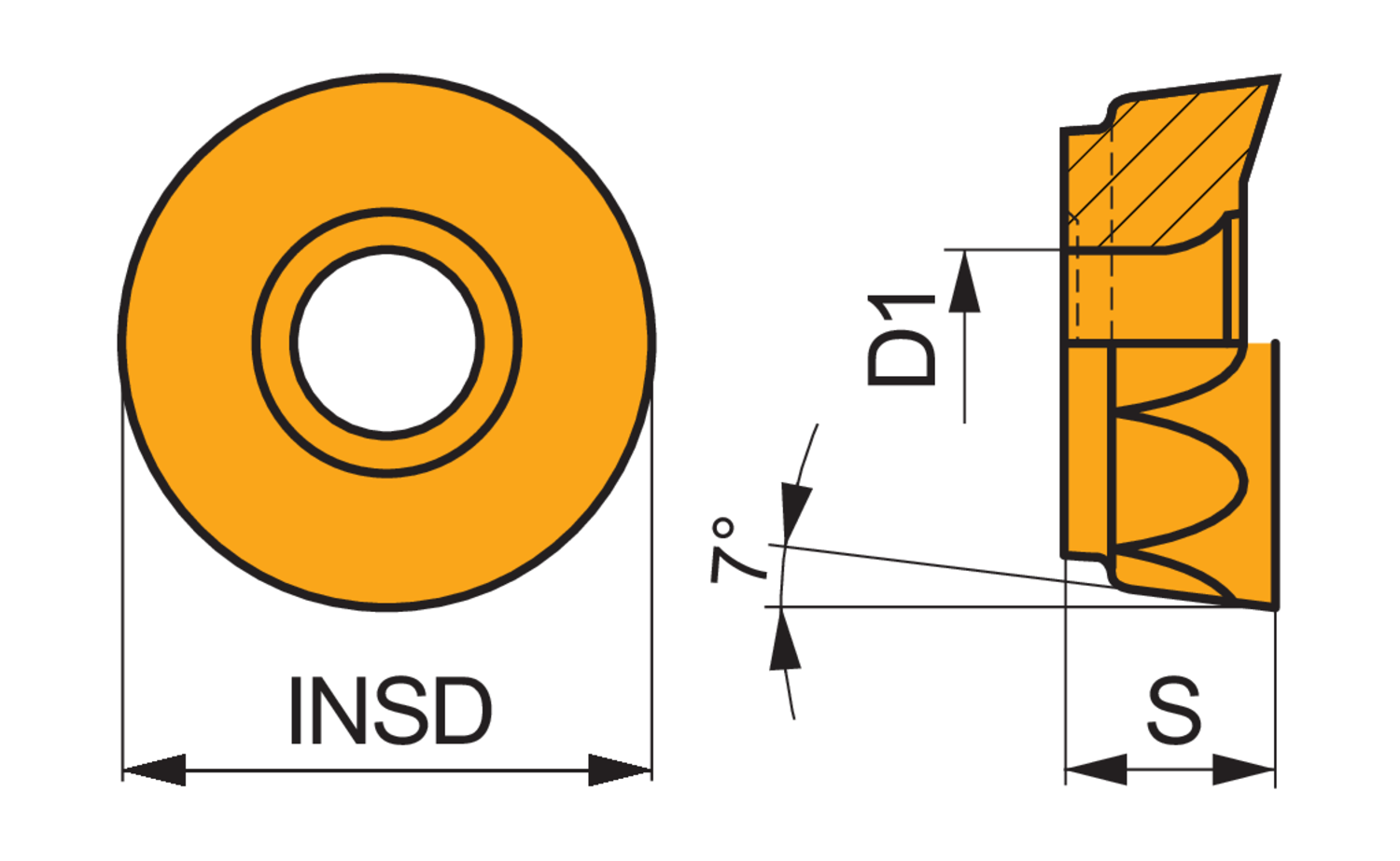

Single-sided milling insert RCMT 1606 with chip-breakers, round for a maximum depth of cut of .315", with " corner radius, an indexing accuracy according to ISO-tolerance class-M and R geometry with rounded cutting edges and facet, M8310 PVD coated fine grained WC-Co carbide within ISO-grade ranges P01-P10/K01-K10 and H05-H15 for machining of steel, cast-iron and hardened material with copy face mills SRC16
- Product Name ISO: RCMT 1606MOSN-R:M8310
- Ordering Code ANSI: RCMT 1606MOSN-R:M8310
- EDP Number: 6922553
- Coating: M8310
- Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 8 |
| Fixing Hole Diameter (Mm.) | 5.5 |
| Insert Dia. (Mm.) | 16 |
| Insert Thickness (Mm.) | 6.35 |
| Max Depth of Cut (In.) | 0.315 |
| Coating | M8310 |
