Single-sided milling insert RDET 1003 with chip-breakers, round for a maximum depth of cut of .0984", with " corner radius, an indexing accuracy according to ISO-tolerance class-E with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P50 and M20-M40 for machining of steel and stainless-steel
- Product Name ISO: RDET 1003MOSN:M8340
- Ordering Code ANSI: RDET 1003MOSN:M8340
- EDP Number: 6800840
- Coating: M8340
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

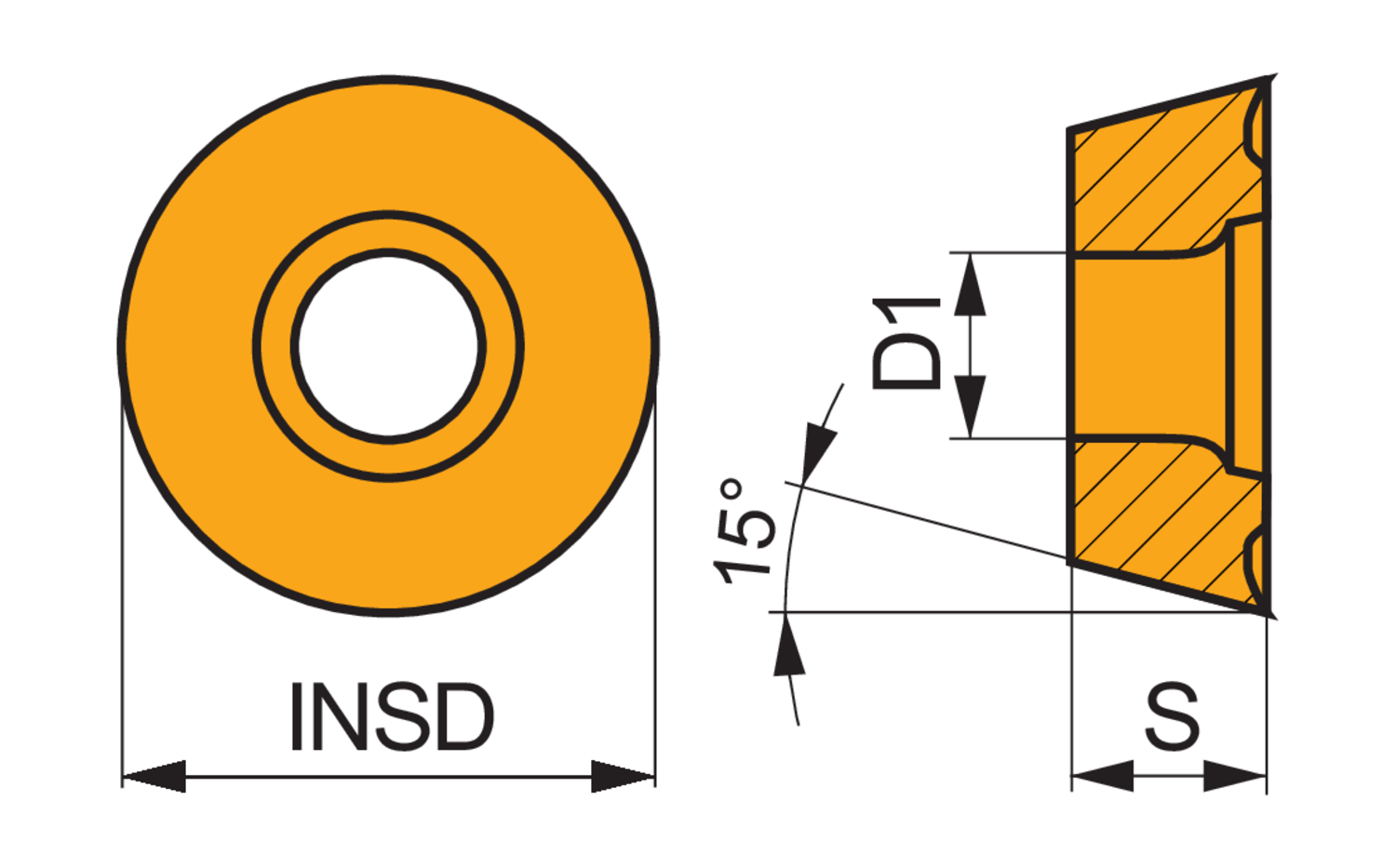

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 2.5 |
| Fixing Hole Diameter (Mm.) | 4.4 |
| Insert Dia. (Mm.) | 10 |
| Insert Thickness (Mm.) | 3.18 |
| Max Depth of Cut (In.) | 0.098 |
| Coating | M8340 |
