Single-sided milling insert RDHX 1003, round for a maximum depth of cut of .0984", with " corner radius, an indexing accuracy according to ISO-tolerance class-H with cutting edges with facet, M4303 PVD coated extra fine grained WC-Co carbide within ISO-grade ranges K01-K10 and H01-H10 for machining of cast-iron and hardened material with copy face mills SRD10
- Product Name ISO: RDHX 1003MOT:M4303
- Ordering Code ANSI: RDHX 1003MOT:M4303
- EDP Number: 7637289
- Coating: M4303
- Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content)

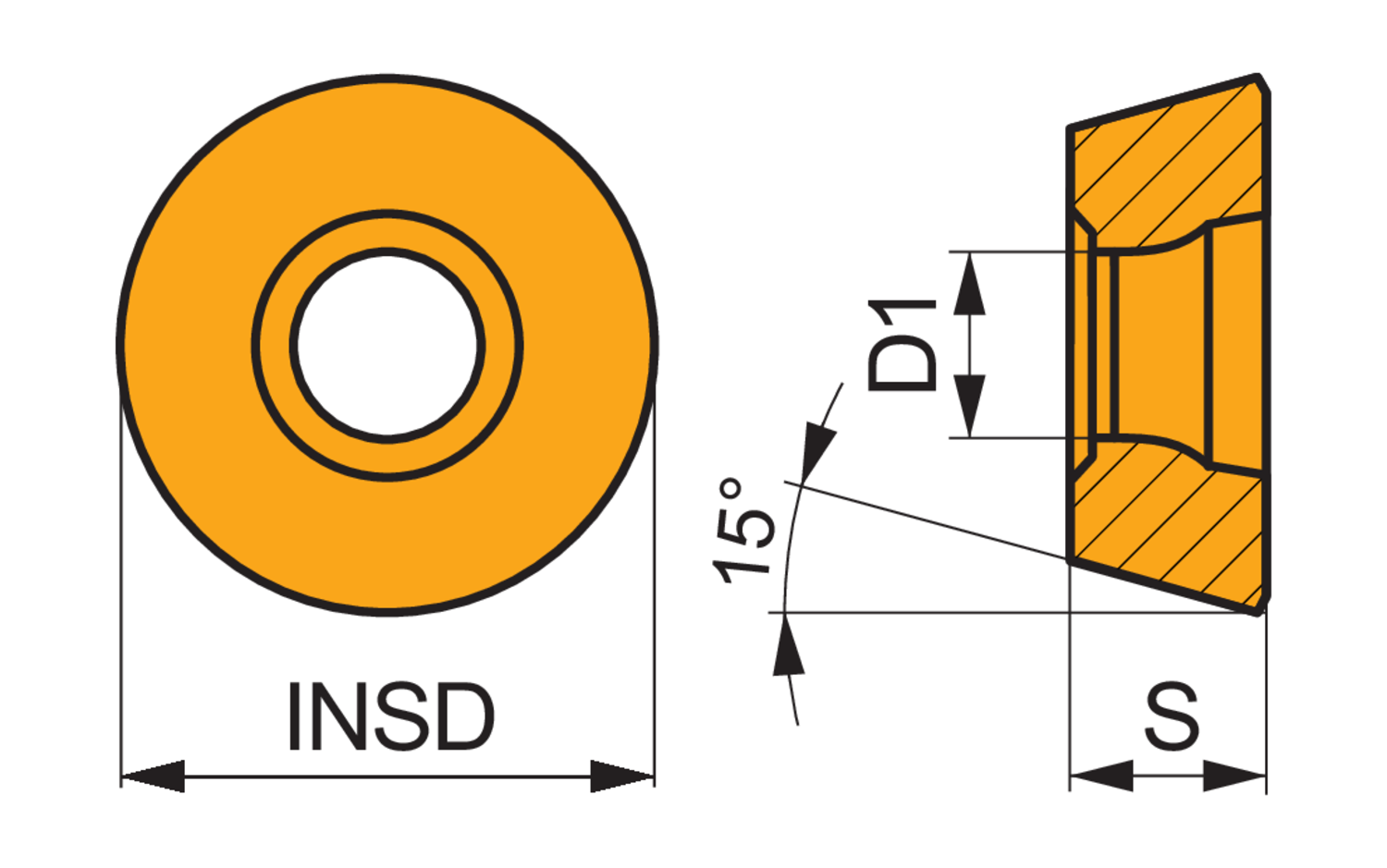

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 2.5 |
| Fixing Hole Diameter (Mm.) | 3.9 |
| Insert Dia. (Mm.) | 10 |
| Insert Thickness (Mm.) | 3.18 |
| Max Depth of Cut (In.) | 0.098 |
| Coating | M4303 |
