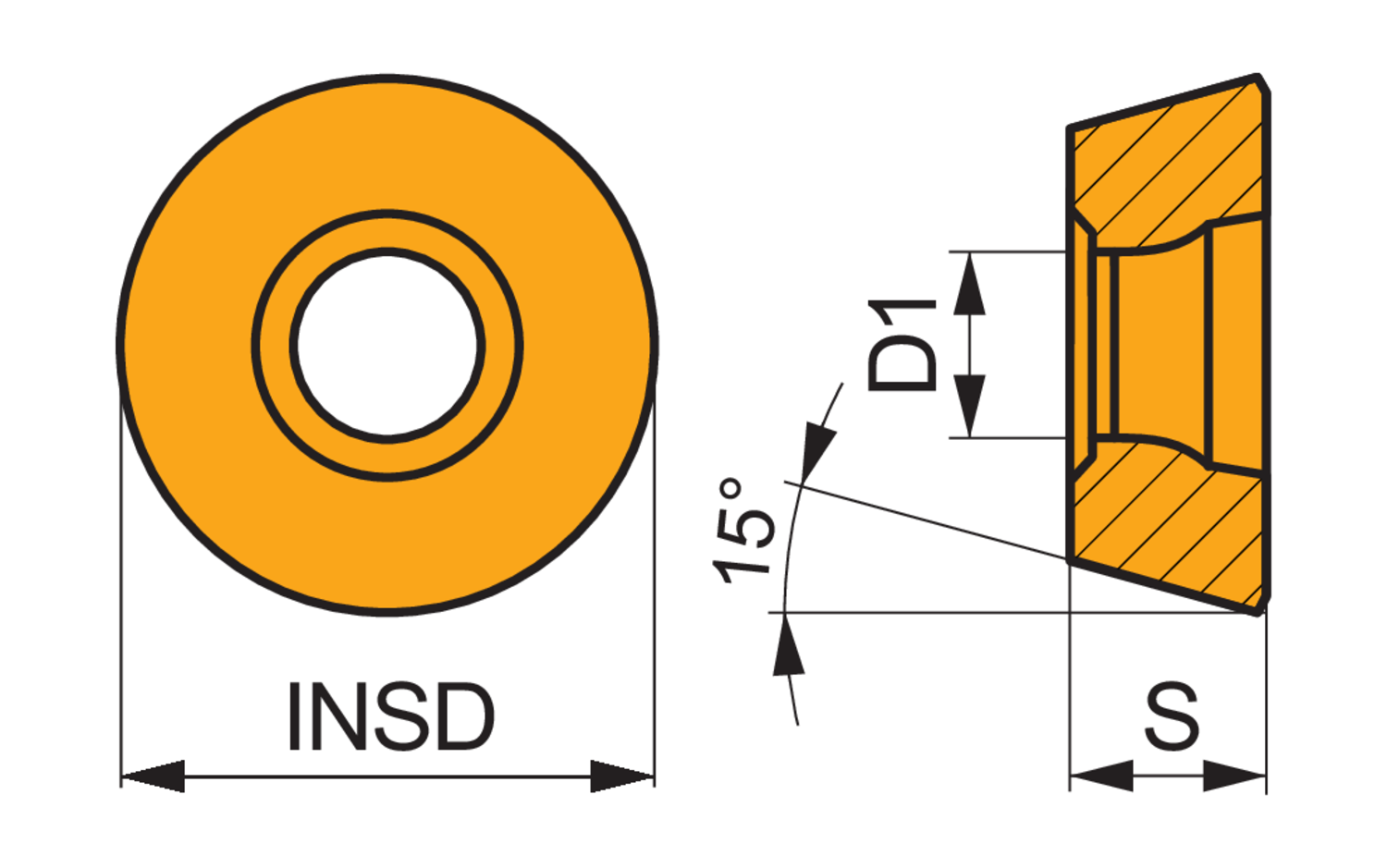

Single-sided milling insert RDMX 12T3, round for a maximum depth of cut of .1181", with " corner radius, an indexing accuracy according to ISO-tolerance class-M with cutting edges with facet, M8325 PVD coated WC-(Ti, Ta, Nb)C-Co carbide for machining with copy face mills SRD12
- Product Name ISO: RDMX 12T3MOT:M8325
- Ordering Code ANSI: RDMX 12T3MOT:M8325
- EDP Number: 6801040
- Coating: M8325
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 3 |
| Fixing Hole Diameter (Mm.) | 3.9 |
| Insert Dia. (Mm.) | 12 |
| Insert Thickness (Mm.) | 3.97 |
| Max Depth of Cut (In.) | 0.118 |
| Coating | M8325 |
