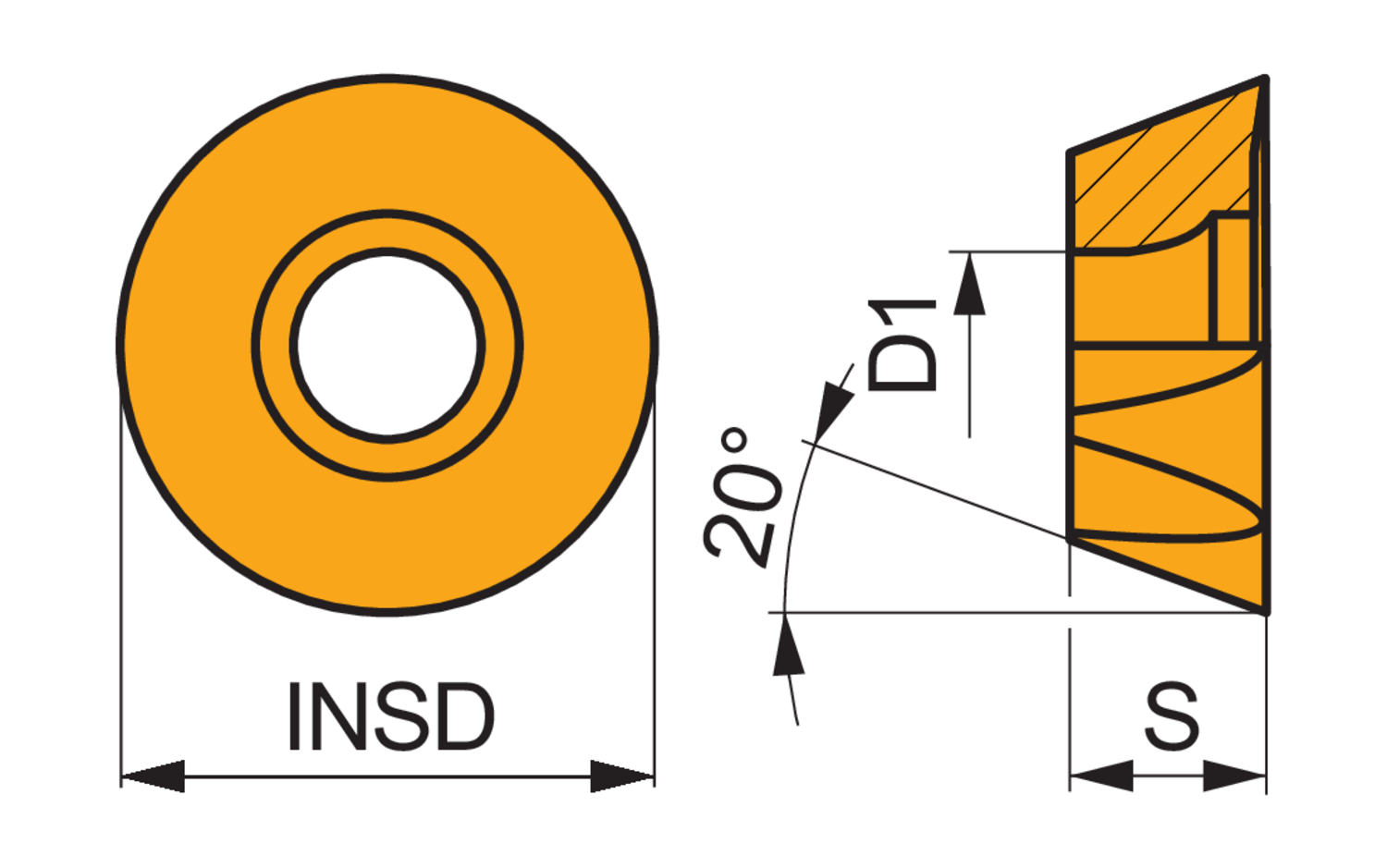

Single-sided milling insert REHT 1604 with chip-breakers, round for a maximum depth of cut of .1575", with " corner radius, an indexing accuracy according to ISO-tolerance class-H and MM geometry with rounded cutting edges, M8340 PVD coated fine grained WC-Co carbide within ISO-grade ranges M20-M40 and S20-S30 for machining of stainless-steel and superalloy with face mills SOE06Z
- Product Name ISO: REHT 1604M0EN-MM:M8340
- Ordering Code ANSI: REHT 1604M0EN-MM:M8340
- EDP Number: 6931662
- Coating: M8340
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 4 |
| Fixing Hole Diameter (Mm.) | 5.5 |
| Insert Dia. (Mm.) | 16 |
| Insert Thickness (Mm.) | 4.76 |
| Max Depth of Cut (In.) | 0.157 |
| Coating | M8340 |
