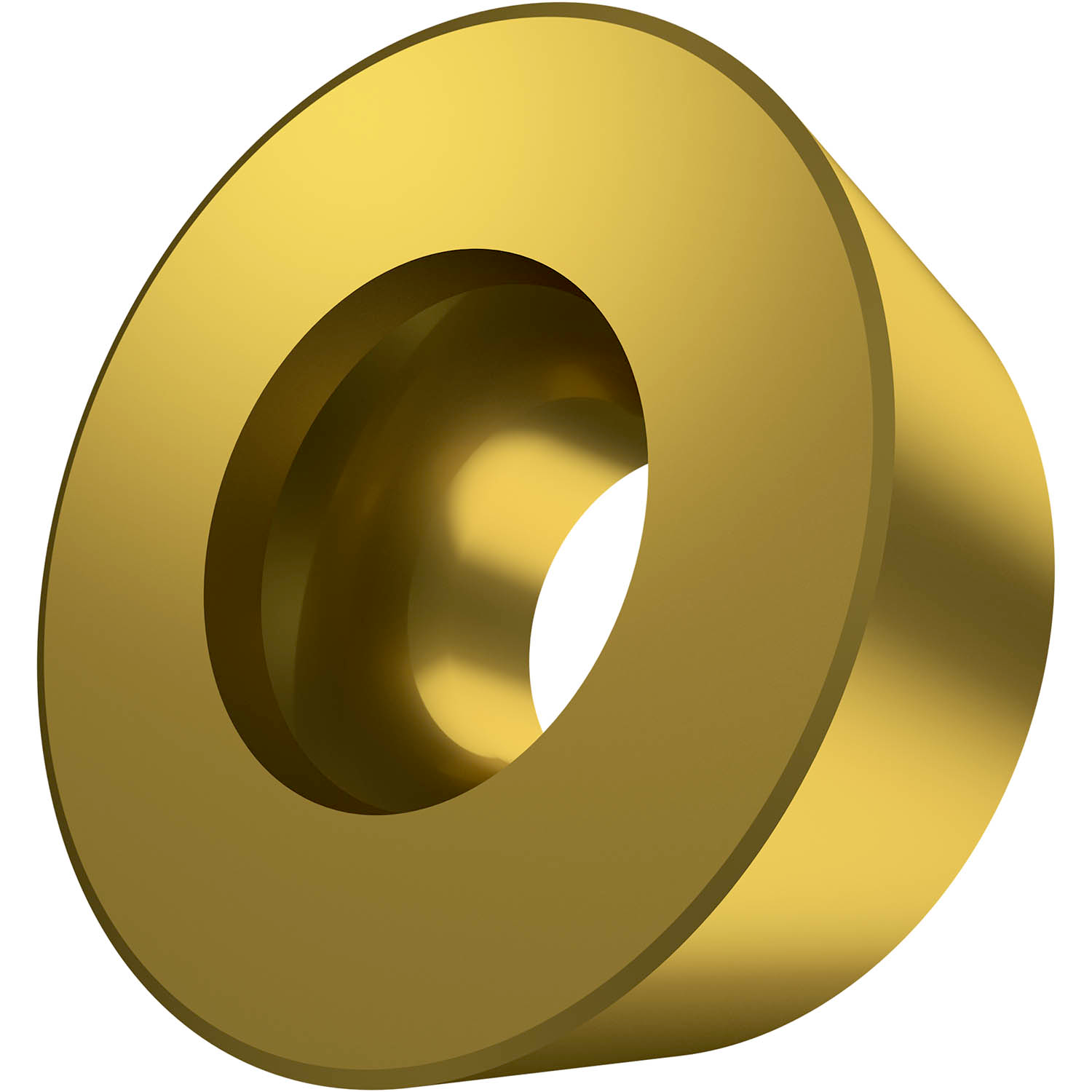

Single-sided milling insert RPEW 1204 with a plane rake surface, round for a maximum depth of cut of .1181", with " corner radius, an indexing accuracy according to ISO-tolerance class-E with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide
- Product Name ISO: RPEW 1204MOSN:M8340
- Ordering Code ANSI: RPEW 1204MOSN:M8340
- EDP Number: 6835886
- Coating: M8340

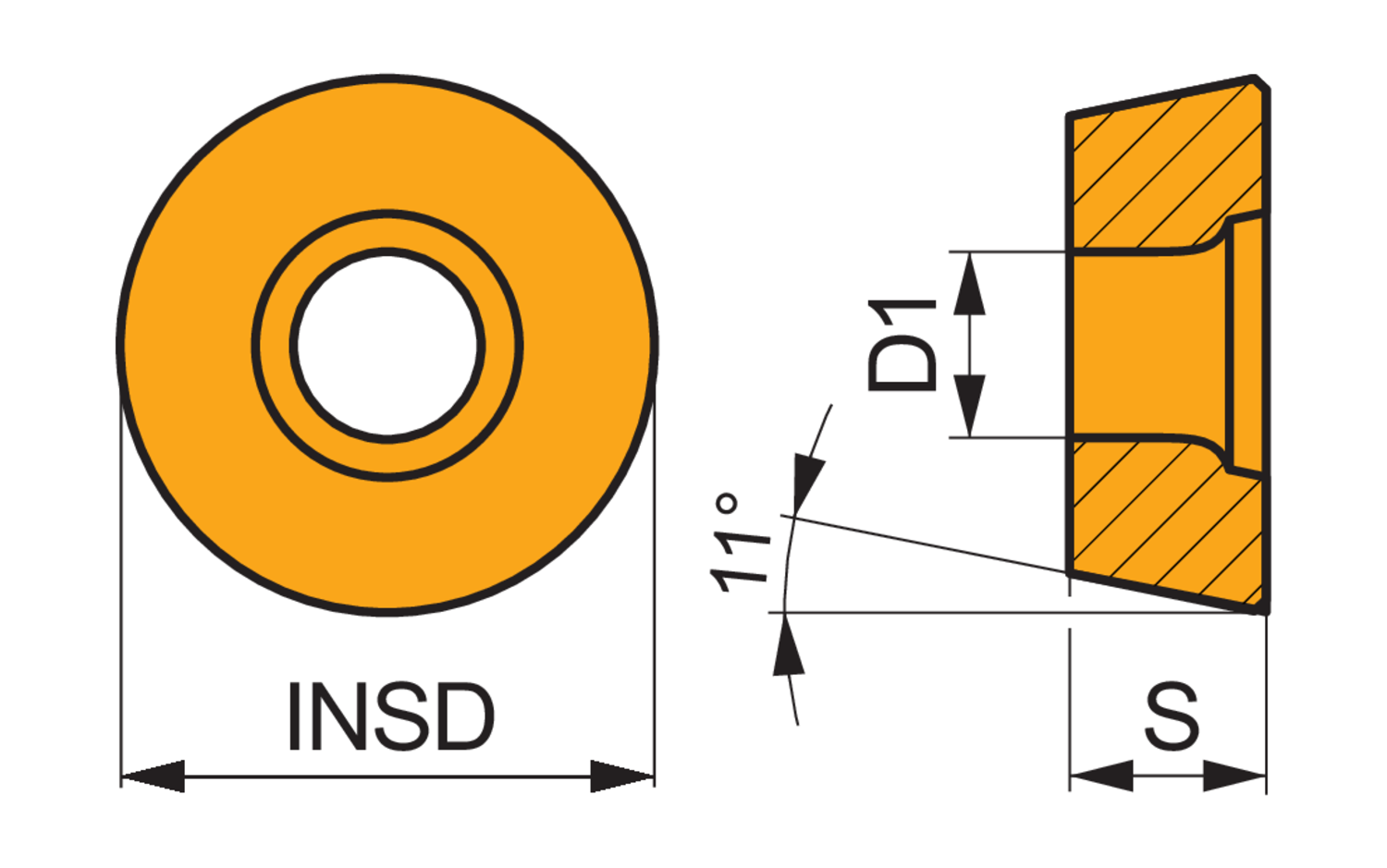

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 3 |
| Fixing Hole Diameter (Mm.) | 4.4 |
| Insert Dia. (Mm.) | 12 |
| Insert Thickness (Mm.) | 4.76 |
| Max Depth of Cut (In.) | 0.118 |
| Coating | M8340 |
