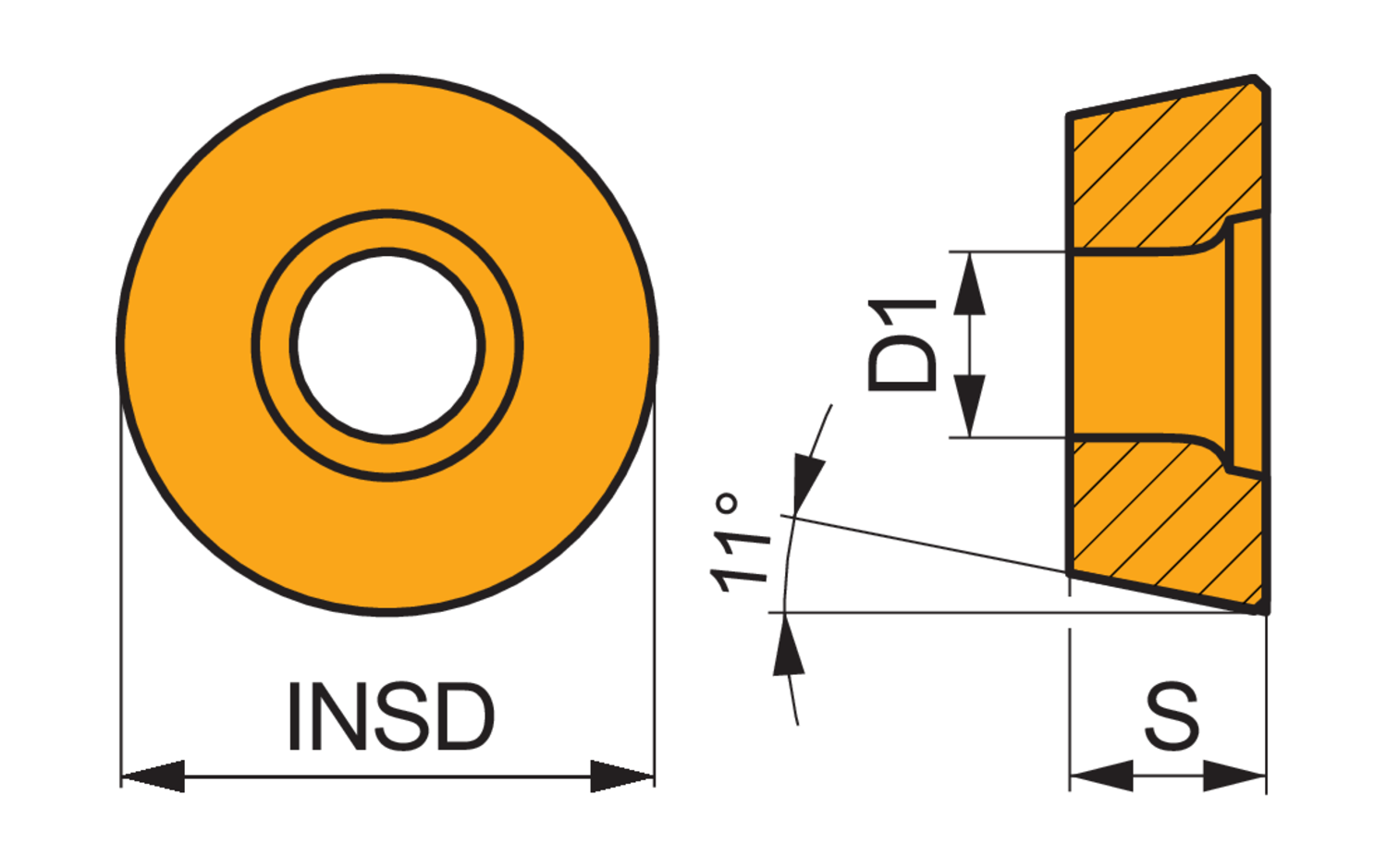

Single-sided milling insert RPEW 1204 with a plane rake surface, round for a maximum depth of cut of .1181", with " corner radius, an indexing accuracy according to ISO-tolerance class-E with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range K20-K40 for machining of cast-iron
- Product Name ISO: RPEW 1204MOSN:M8330
- Ordering Code ANSI: RPEW 1204MOSN:M8330
- EDP Number: 7447966
- Coating: M8330
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 3 |
| Fixing Hole Diameter (Mm.) | 4.4 |
| Insert Dia. (Mm.) | 12 |
| Insert Thickness (Mm.) | 4.76 |
| Max Depth of Cut (In.) | 0.118 |
| Coating | M8330 |
