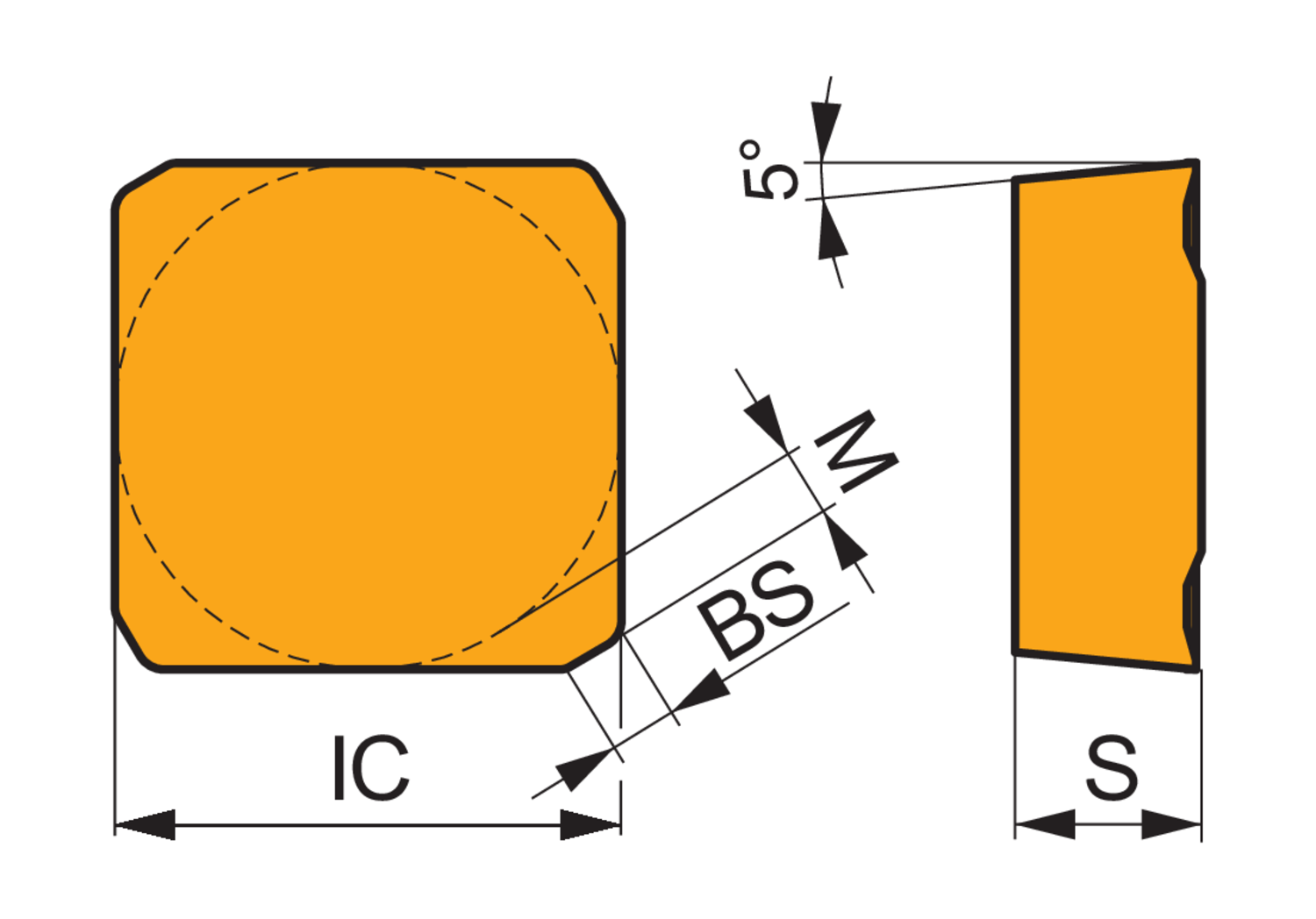

Single-sided milling insert SBMR 2207 with chip-breakers, square for a maximum depth of cut of .5906", with " corner radius, an indexing accuracy according to ISO-tolerance class-M and R geometry with rounded cutting edges and facet, M8326 PVD coated WC-Co carbide within ISO-grade range P20-P40 for machining of steel with face mills FSB22X
- Product Name ISO: SBMR 2207DZSR-R:M8326
- Ordering Code ANSI: SBMR 2207DZSR-R:M8326
- EDP Number: 6801310
- Coating: M8326
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 15 |
| Inscribing Circle Dia. (Mm.) | 22 |
| Insert Length (Mm.) | 22 |
| Insert Thickness (Mm.) | 8 |
| Max Depth of Cut (In.) | 0.591 |
| Coating | M8326 |
