Single-sided milling insert SDKT 1205 with chip-breakers, square for a maximum depth of cut of .3937", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-K and FM geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range P20-P40 for machining of steel with copy face mills SOD05
- Product Name ISO: SDKT 1205PDSR-FM:M8330
- Ordering Code ANSI: SDKT 1205PDSR-FM:M8330
- EDP Number: 7447976
- Coating: M8330
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

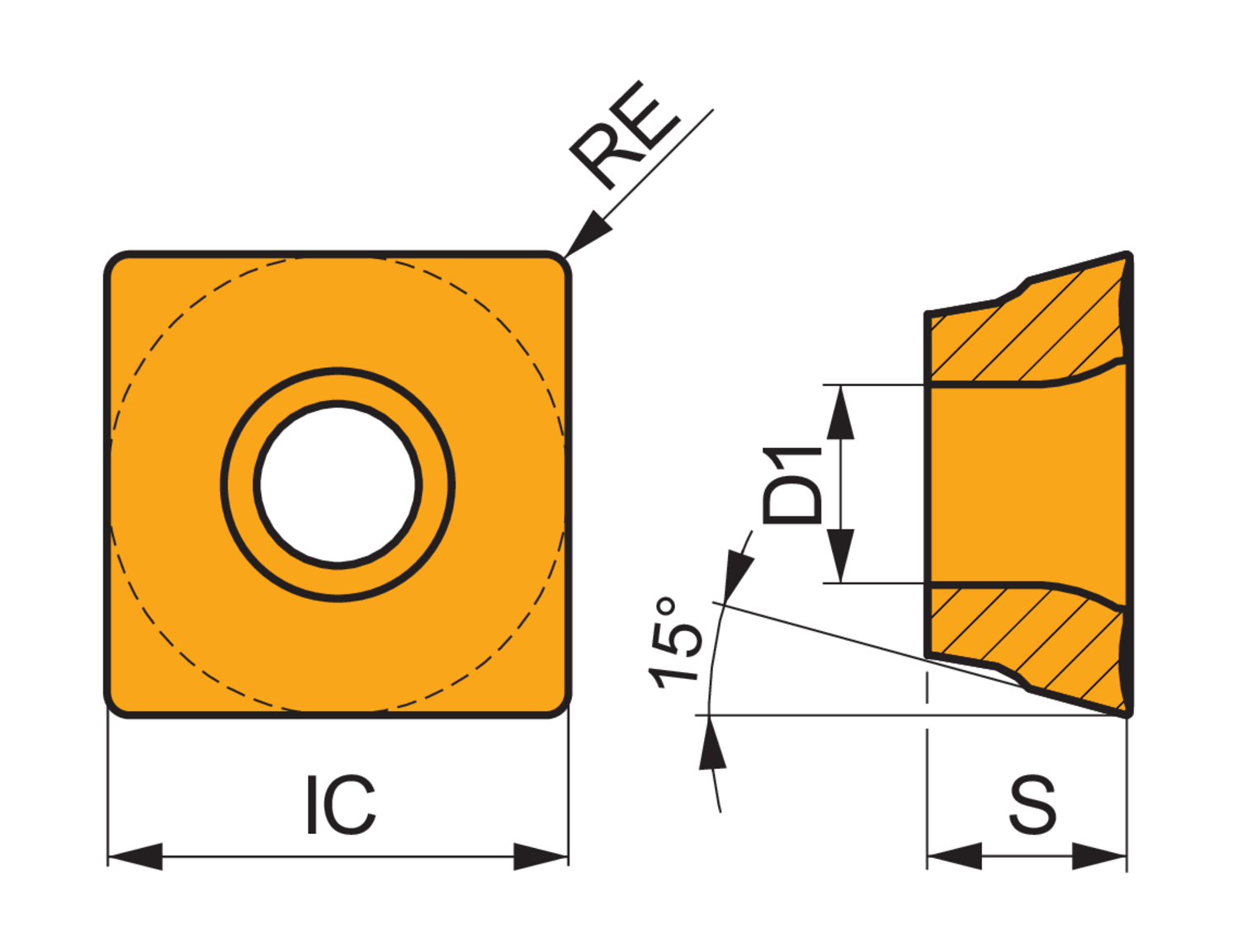

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 10 |
| Corner Radius (Mm.) | 0.8 |
| Fixing Hole Diameter (Mm.) | 5.5 |
| Inscribing Circle Dia. (Mm.) | 12.7 |
| Insert Thickness (Mm.) | 5.56 |
| Max Depth of Cut (In.) | 0.394 |
| Coating | M8330 |
