Single-sided milling insert SDMX 1205, square for a maximum depth of cut of .4724", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range P20-P40 for machining of steel with shoulder mills with extended flute J(T)-CSD12X
- Product Name ISO: SDMX 120508EN-M:M8330
- Ordering Code ANSI: SDMX 120508EN-M:M8330
- EDP Number: 7447983
- Coating: M8330
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content)

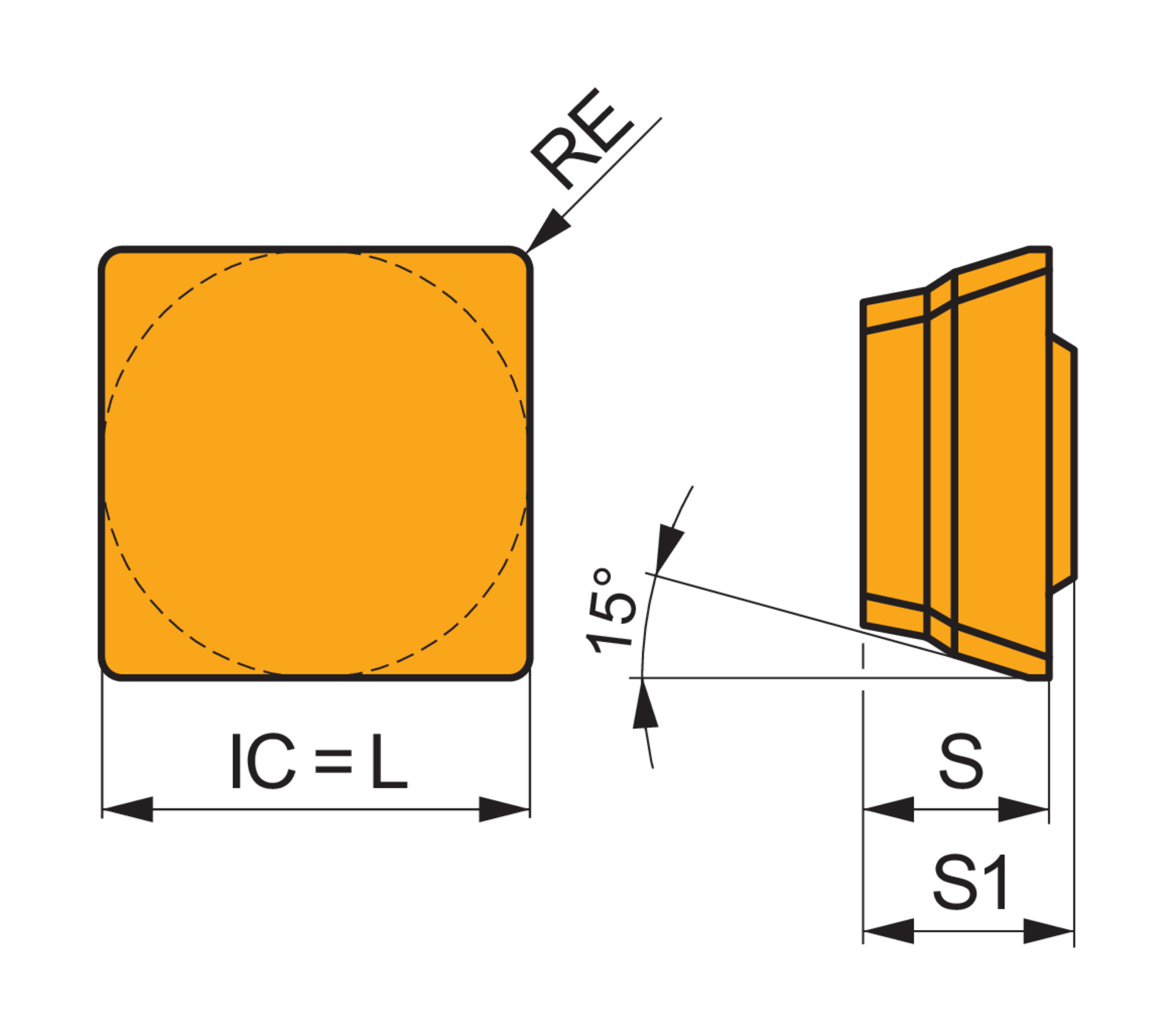

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 12 |
| Corner Radius (Mm.) | 0.8 |
| Inscribing Circle Dia. (Mm.) | 12.7 |
| Insert Thickness (Mm.) | 5.56 |
| Max Depth of Cut (In.) | 0.472 |
| Coating | M8330 |
