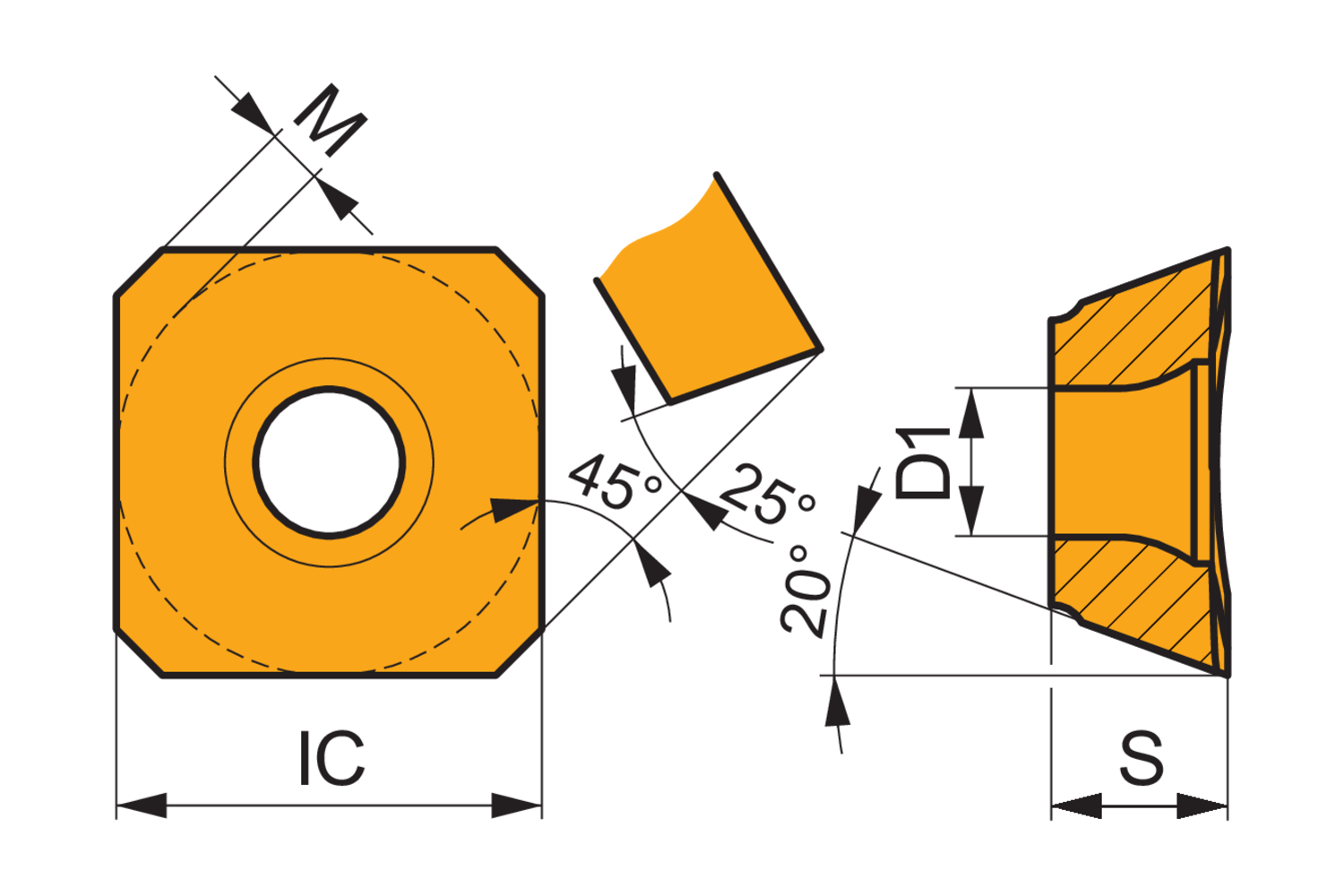

Single-sided milling insert SEET 09T3 with chip-breakers, square for a maximum depth of cut of .1772", with " corner radius, an indexing accuracy according to ISO-tolerance class-E with rounded cutting edges, M9340 MT-CVD coated WC-Co carbide within ISO-grade range M30-M40 for machining of stainless-steel with face mills SSE09
- Product Name ISO: SEET 09T3AFEN:M9340
- Ordering Code ANSI: SEET 09T3AFEN:M9340
- EDP Number: 6755675
- Coating: M9340
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 4.5 |
| Fixing Hole Diameter (Mm.) | 3.5 |
| Inscribing Circle Dia. (Mm.) | 9.525 |
| Insert Thickness (Mm.) | 3.97 |
| Max Depth of Cut (In.) | 0.177 |
| Coating | M9340 |
