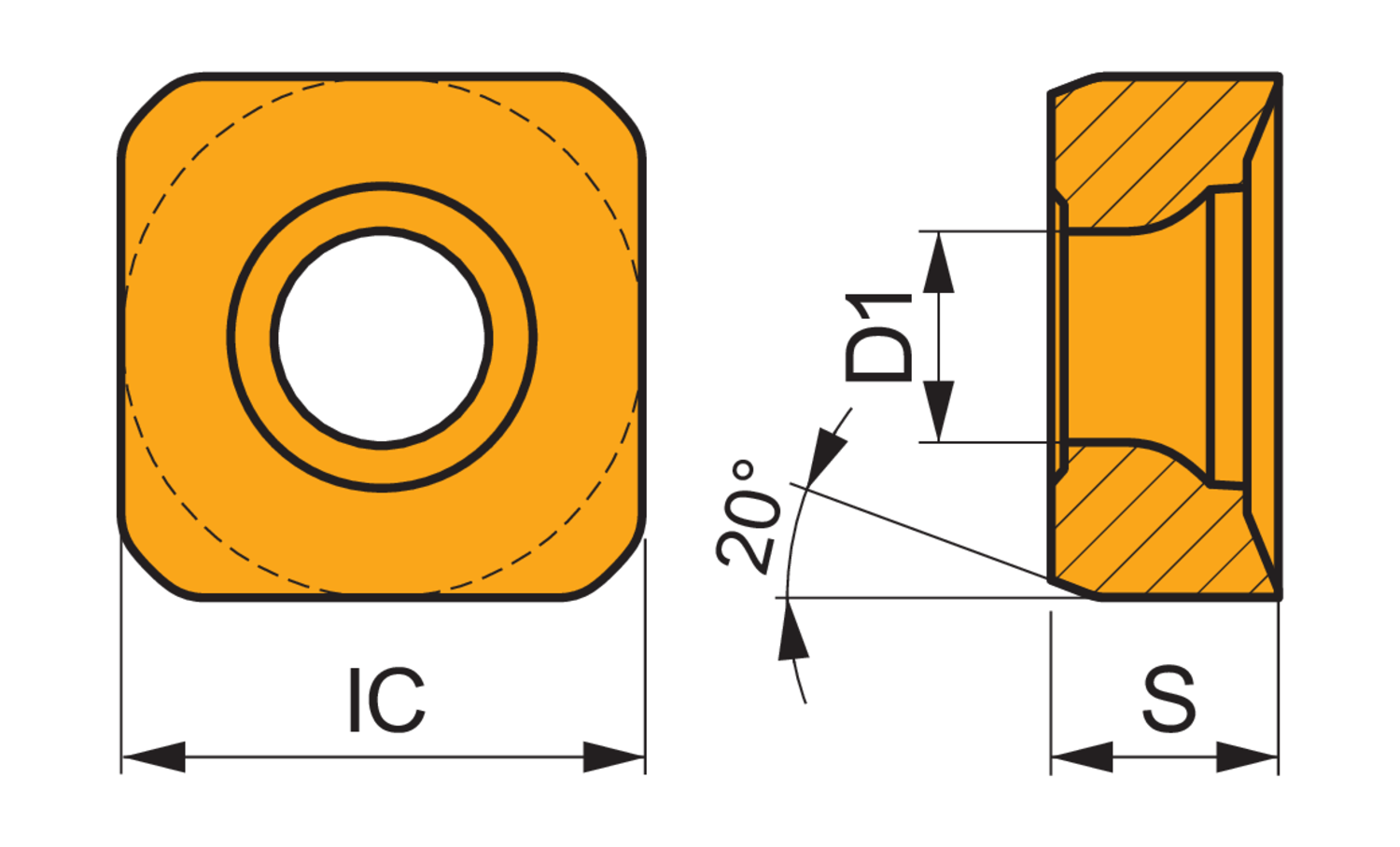

Single-sided milling insert SNMT 1205 with chip-breakers, square for a maximum depth of cut of .2559", with " corner radius, an indexing accuracy according to ISO-tolerance class-M and R geometry with rounded cutting edges and facet, M5315 MT-CVD coated WC-Co carbide for machining with face mills SSN12Z
- Product Name ISO: SNMT 1205AZSR-R:M5315
- Ordering Code ANSI: SNMT 1205AZSR-R:M5315
- EDP Number: 6754628
- Coating: M5315
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 6.5 |
| Fixing Hole Diameter (Mm.) | 5.2 |
| Inscribing Circle Dia. (Mm.) | 12.7 |
| Insert Thickness (Mm.) | 5.56 |
| Max Depth of Cut (In.) | 0.256 |
| Coating | M5315 |
