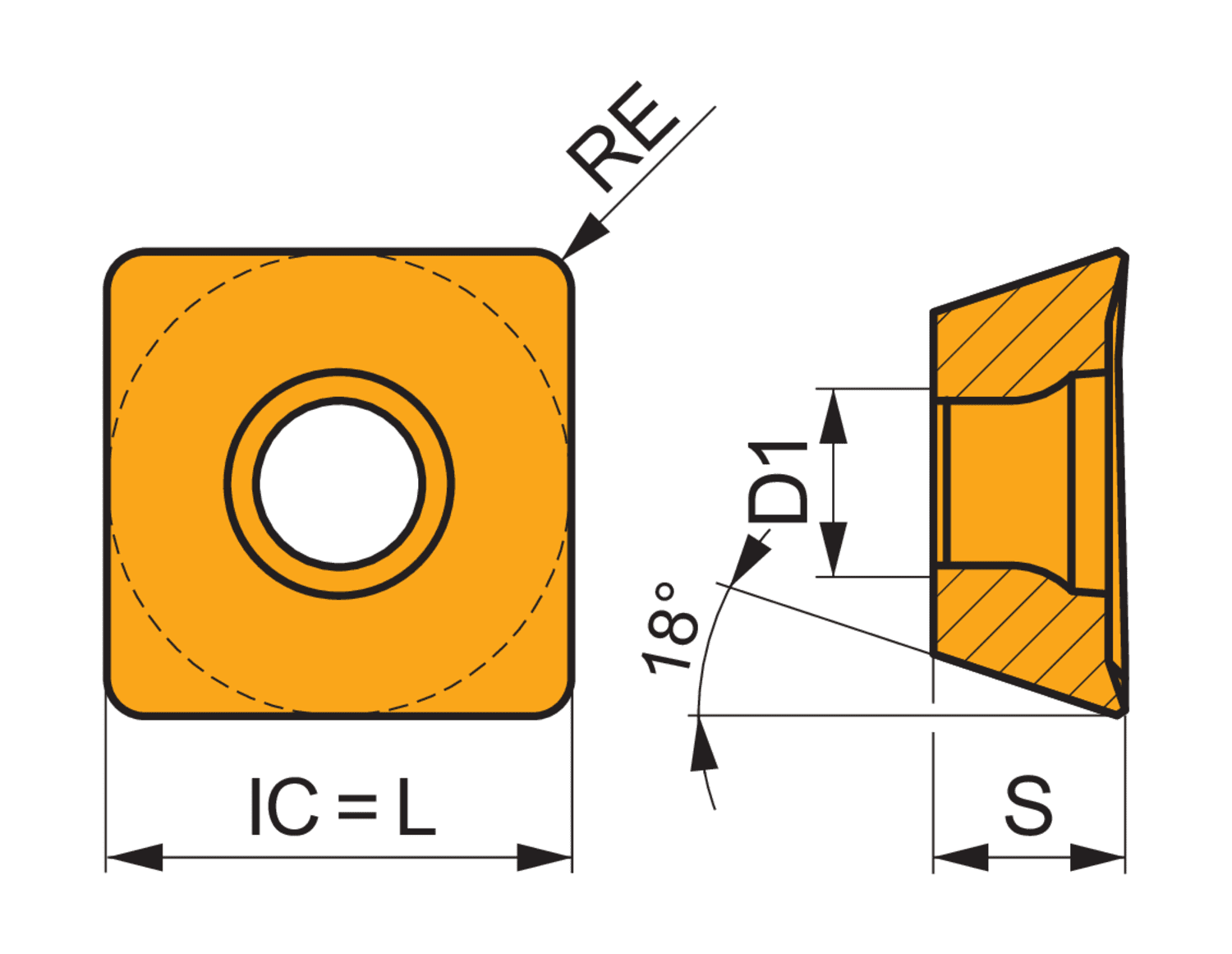

Single-sided milling insert SOMT 09T3 with chip-breakers, square for a maximum depth of cut of .315", with .0157" corner radius, an indexing accuracy according to ISO-tolerance class-M and MI geometry, M8310 PVD coated fine grained WC-Co carbide within ISO-grade ranges P01-P10 and K01-K10 for machining of steel and cast-iron with chamfer mills N-SSO09 or shoulder mills SSO09
- Product Name ISO: SOMT 09T304-MI:M8310
- Ordering Code ANSI: SOMT 09T304-MI:M8310
- EDP Number: 6756266
- Coating: M8310
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 8 |
| Corner Radius (Mm.) | 0.4 |
| Fixing Hole Diameter (Mm.) | 3.5 |
| Inscribing Circle Dia. (Mm.) | 9.55 |
| Insert Thickness (Mm.) | 3.97 |
| Max Depth of Cut (In.) | 0.315 |
| Coating | M8310 |
