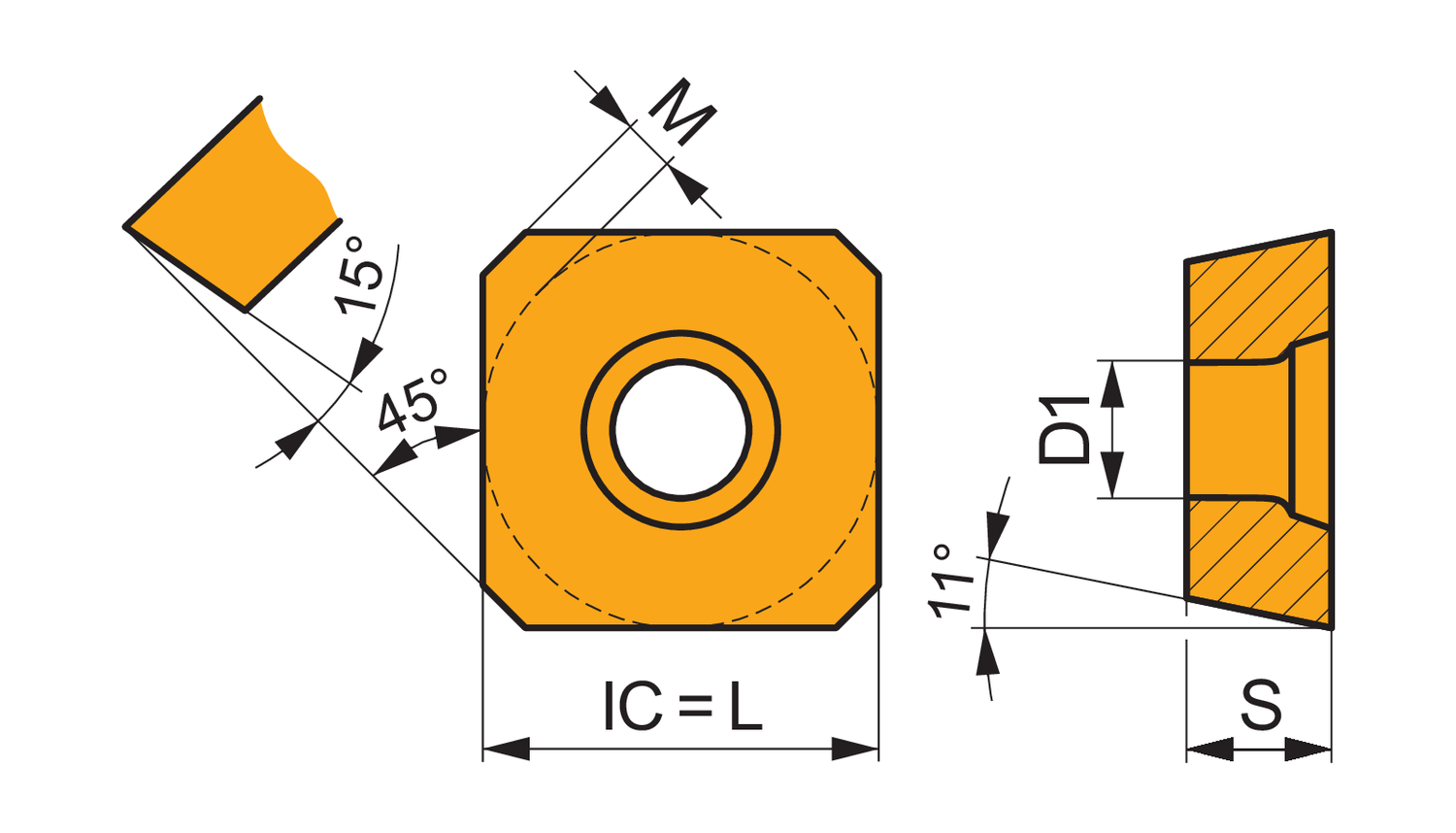

Single-sided milling insert SPEW 1204 with a plane rake surface, square for a maximum depth of cut of .4724", with " corner radius, an indexing accuracy according to ISO-tolerance class-E with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range K20-K40 for machining of cast-iron with shoulder mills with extended flute J(T)-SSAP
- Product Name ISO: SPEW 1204ADSN:M8330
- Ordering Code ANSI: SPEW 1204ADSN:M8330
- EDP Number: 7451038
- Coating: M8330
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 12 |
| Fixing Hole Diameter (Mm.) | 5.5 |
| Inscribing Circle Dia. (Mm.) | 12.7 |
| Insert Thickness (Mm.) | 4.76 |
| Max Depth of Cut (In.) | 0.472 |
| Coating | M8330 |
