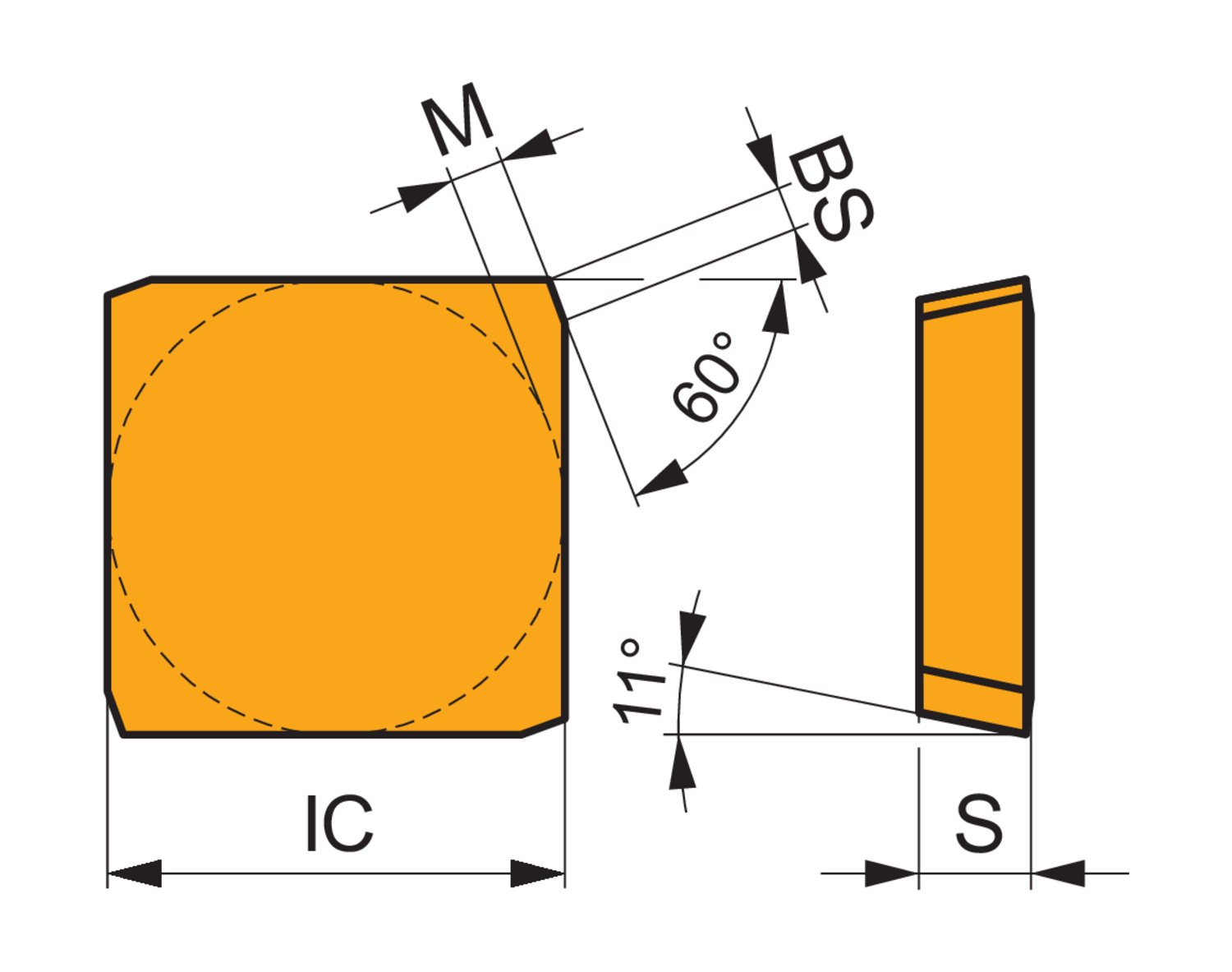

Single-sided milling insert SPGN 2506 with a plane rake surface, square for a maximum depth of cut of .7087", with " corner radius, an indexing accuracy according to ISO-tolerance class-G with rounded cutting edges and facet, M8326 PVD coated WC-Co carbide
- Product Name ISO: SPGN 2506DZSR:M8326
- Ordering Code ANSI: SPGN 84DZSR:M8326
- EDP Number: 6801312
- Coating: M8326
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 18 |
| Inscribing Circle Dia. (Mm.) | 25 |
| Insert Thickness (Mm.) | 6.35 |
| Max Depth of Cut (In.) | 0.709 |
| Coating | M8326 |
