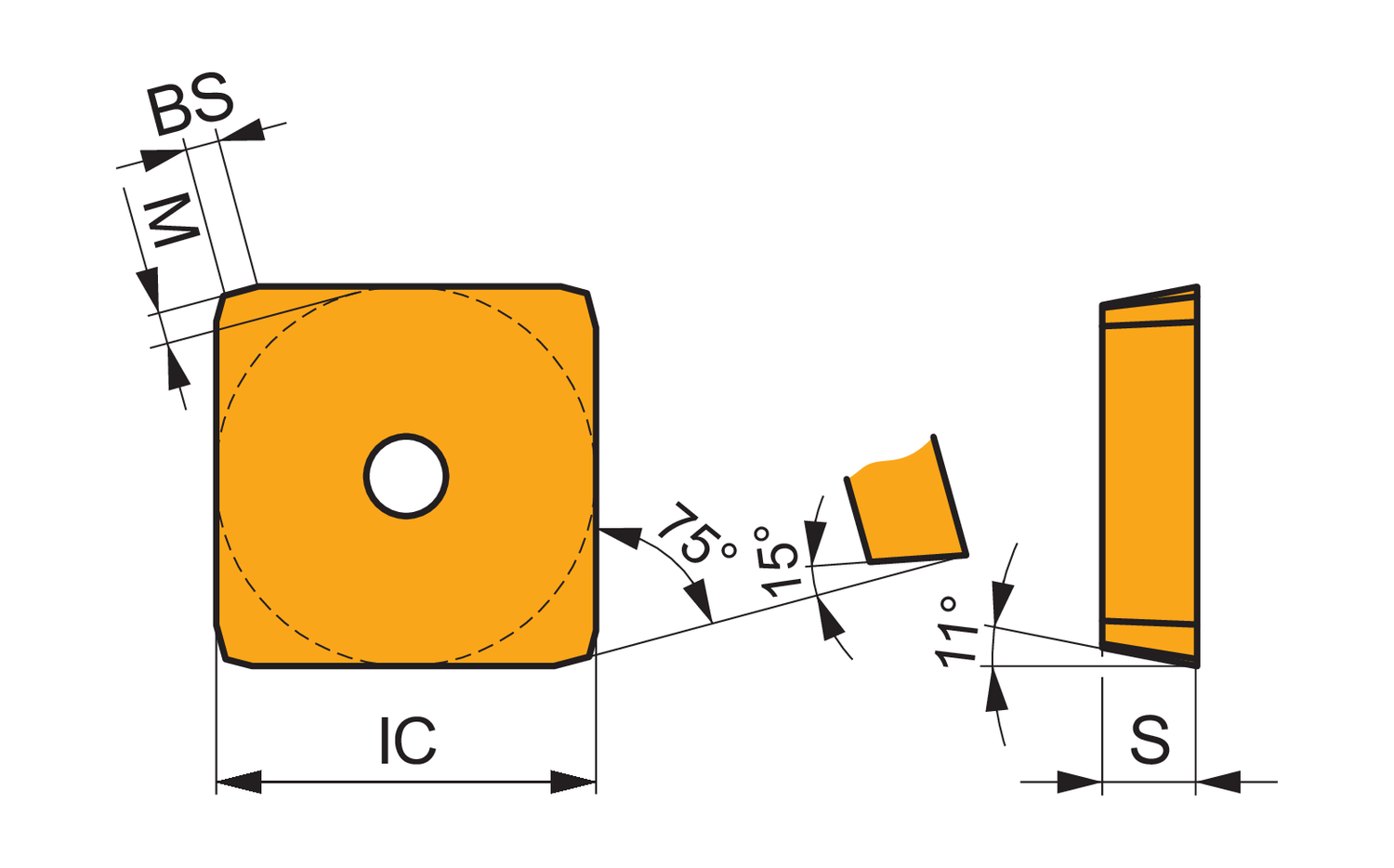

Single-sided milling insert SPKN 1203 with a plane rake surface, square for right hand cutting with a maximum depth of cut of .3543", with " corner radius, an indexing accuracy according to ISO-tolerance class-K with rounded cutting edges, M8340 PVD coated fine grained WC-Co carbide
- Product Name ISO: SPKN 1203EDER:M8340
- Ordering Code ANSI: SPKN 42EDER:M8340
- EDP Number: 6803598
- Coating: M8340
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 9 |
| Inscribing Circle Dia. (Mm.) | 12.7 |
| Insert Thickness (Mm.) | 3.18 |
| Max Depth of Cut (In.) | 0.354 |
| Coating | M8340 |
