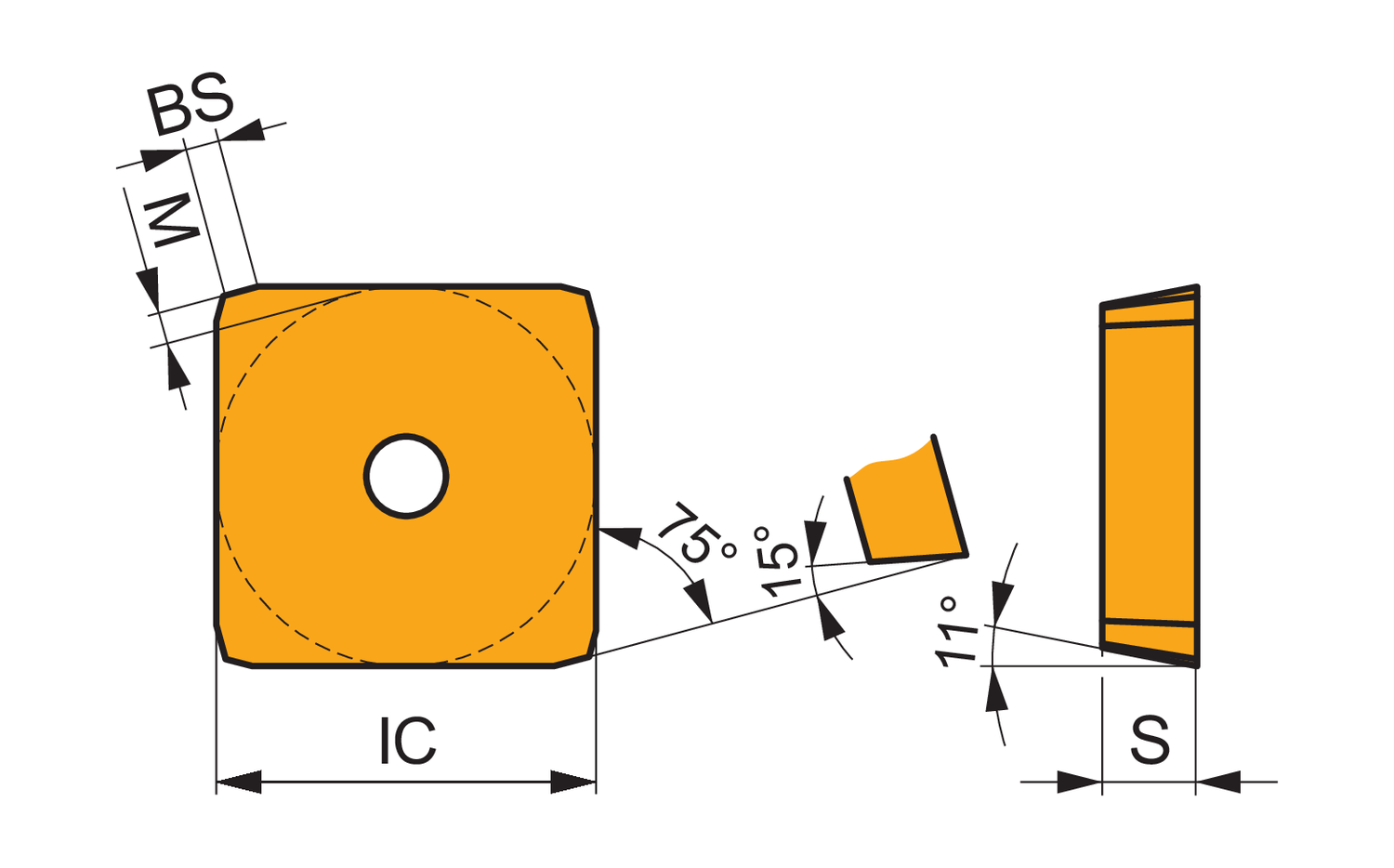

Single-sided milling insert SPKN 1504 with a plane rake surface, square for right hand cutting with a maximum depth of cut of .5118", with " corner radius, an indexing accuracy according to ISO-tolerance class-K with rounded cutting edges and facet, M9325 MT-CVD coated WC-Co carbide
- Product Name ISO: SPKN 1504EDSR:M9325
- Ordering Code ANSI: SPKN 53EDSR:M9325
- EDP Number: 6754579
- Coating: M9325
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 13 |
| Inscribing Circle Dia. (Mm.) | 15.875 |
| Insert Thickness (Mm.) | 4.76 |
| Max Depth of Cut (In.) | 0.512 |
| Coating | M9325 |
