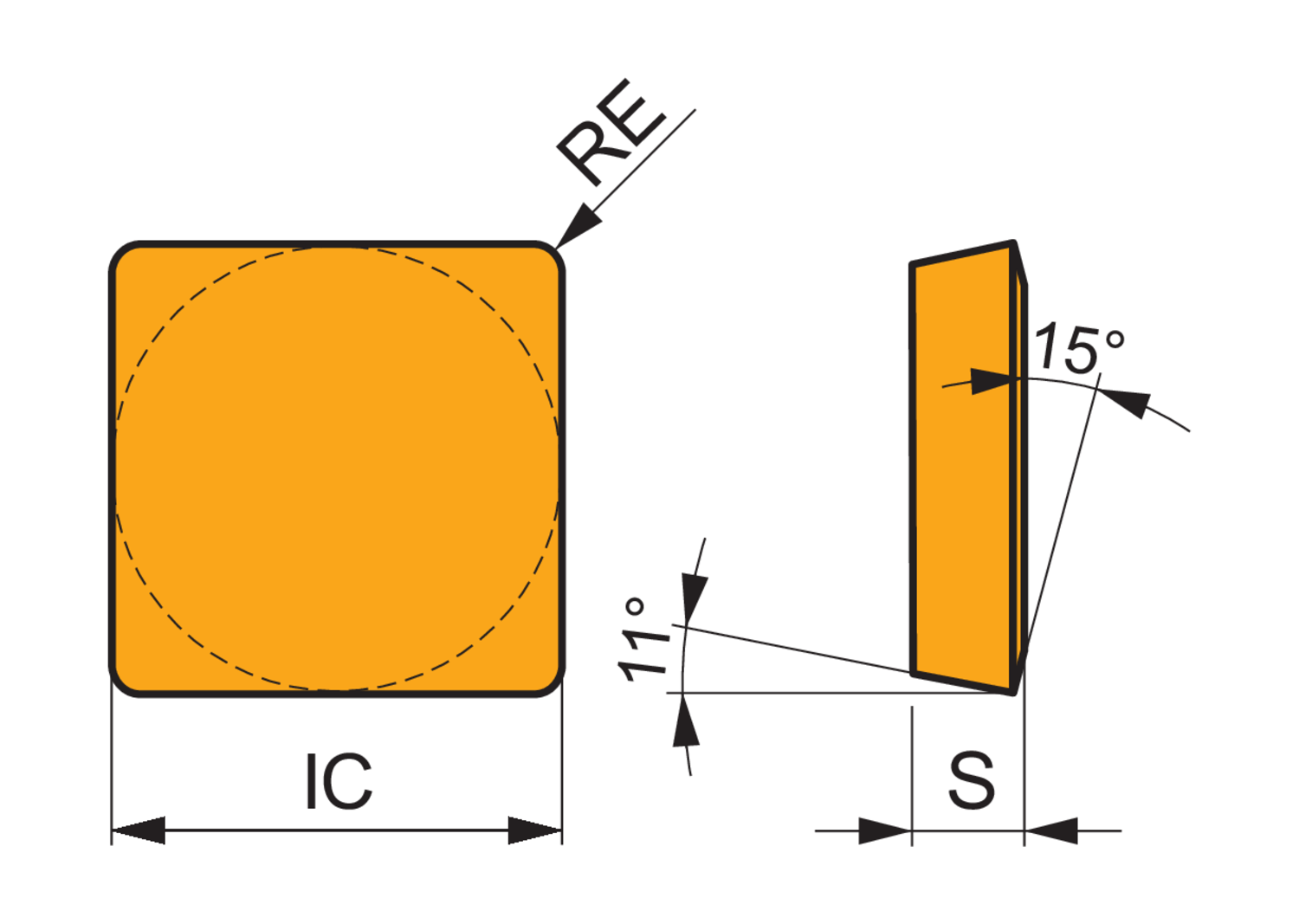

Single-sided milling insert SPUN 1203 with a plane rake surface, square for a maximum depth of cut of .3543", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-U, S26 uncoated WC-(Ti, Ta, Nb)C-Co carbide
- Product Name ISO: SPUN 120308:S26
- Ordering Code ANSI: SPU 422:S26
- EDP Number: 6751791
- Coating: S26
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 9 |
| Corner Radius (Mm.) | 0.8 |
| Inscribing Circle Dia. (Mm.) | 12.7 |
| Insert Thickness (Mm.) | 3.18 |
| Max Depth of Cut (In.) | 0.354 |
| Coating | S26 |
