Single-sided milling insert SPUN 2506 with a plane rake surface, square for a maximum depth of cut of .7087", with .0787" corner radius, an indexing accuracy according to ISO-tolerance class-U with rounded cutting edges and facet, M5326 MT-CVD coated WC-Co carbide for machining of cast-iron
- Product Name ISO: SPUN 250620S:M5326
- Ordering Code ANSI: SPU 845S:M5326
- EDP Number: 6801301
- Coating: M5326

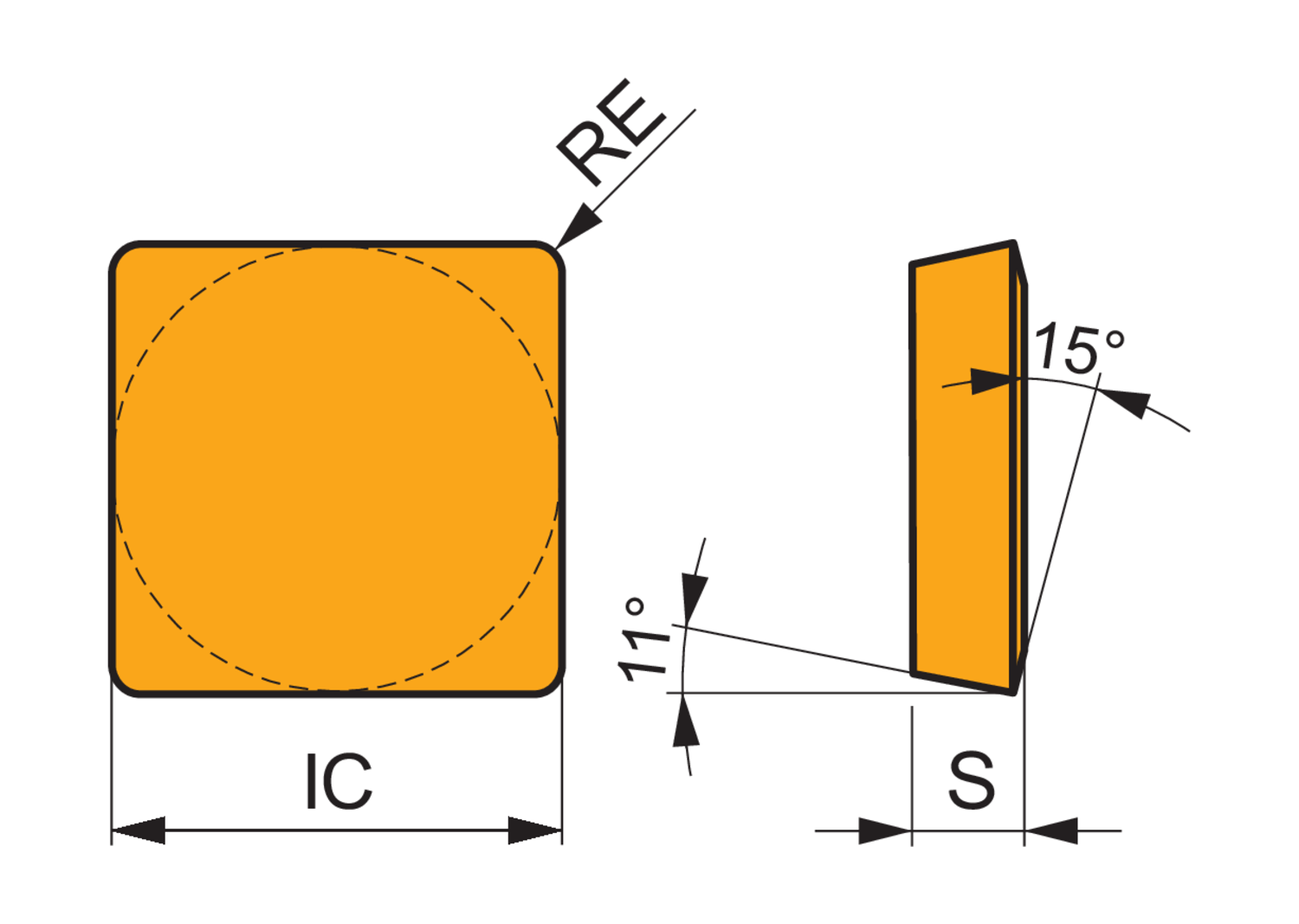

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 18 |
| Corner Radius (Mm.) | 2 |
| Inscribing Circle Dia. (Mm.) | 25.4 |
| Insert Thickness (Mm.) | 6.35 |
| Max Depth of Cut (In.) | 0.709 |
| Coating | M5326 |
