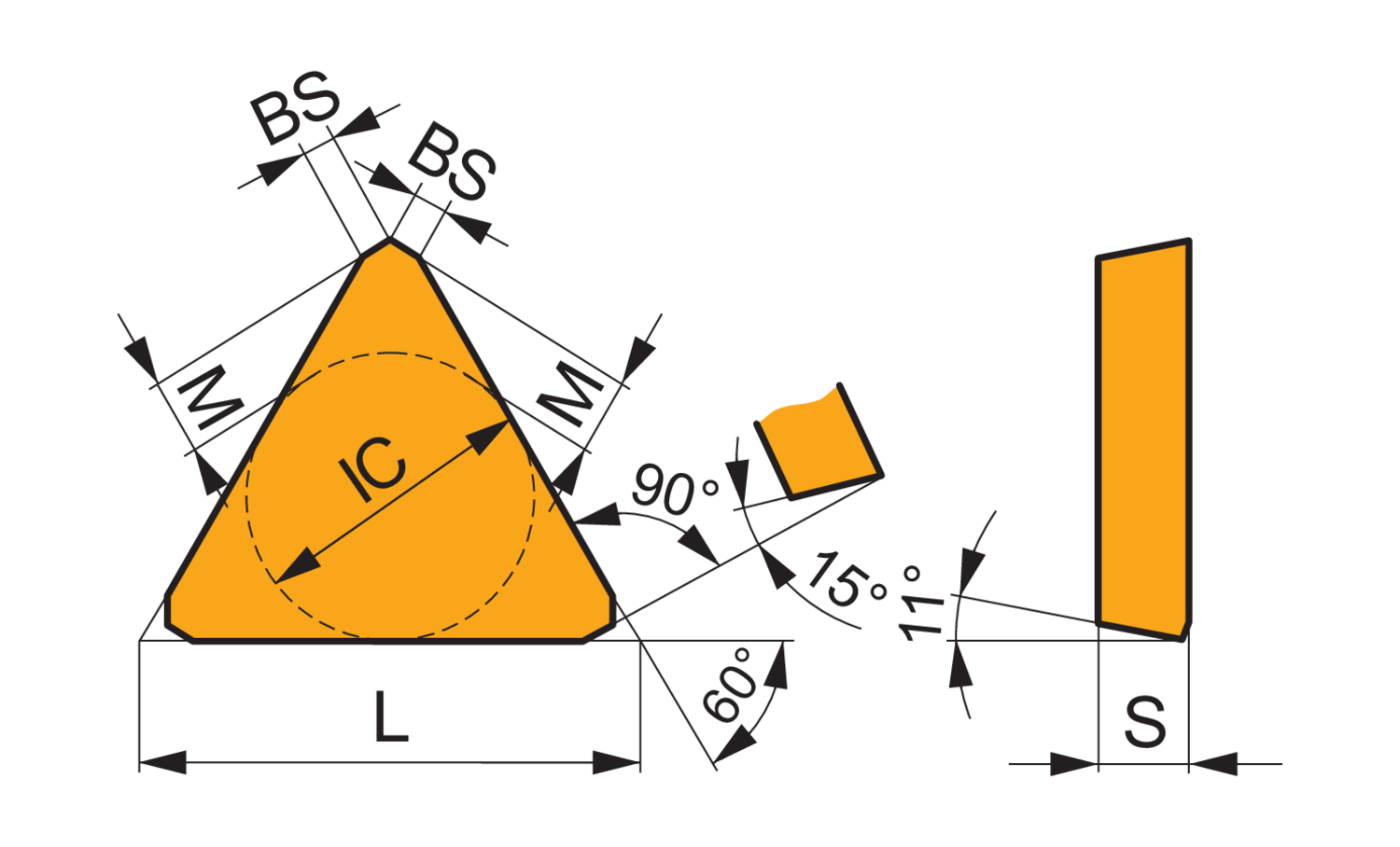

Single-sided milling insert TPCN 1603 with a plane rake surface, triangular for a maximum depth of cut of .4724", with " corner radius, an indexing accuracy according to ISO-tolerance class-C with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron

• Product Name ISO: TPCN 1603PDSN:M8330
• Ordering Code ANSI: TPCN 32PDSN:M8330
• EDP Number: 7451104
• Coating: M8330
• Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
