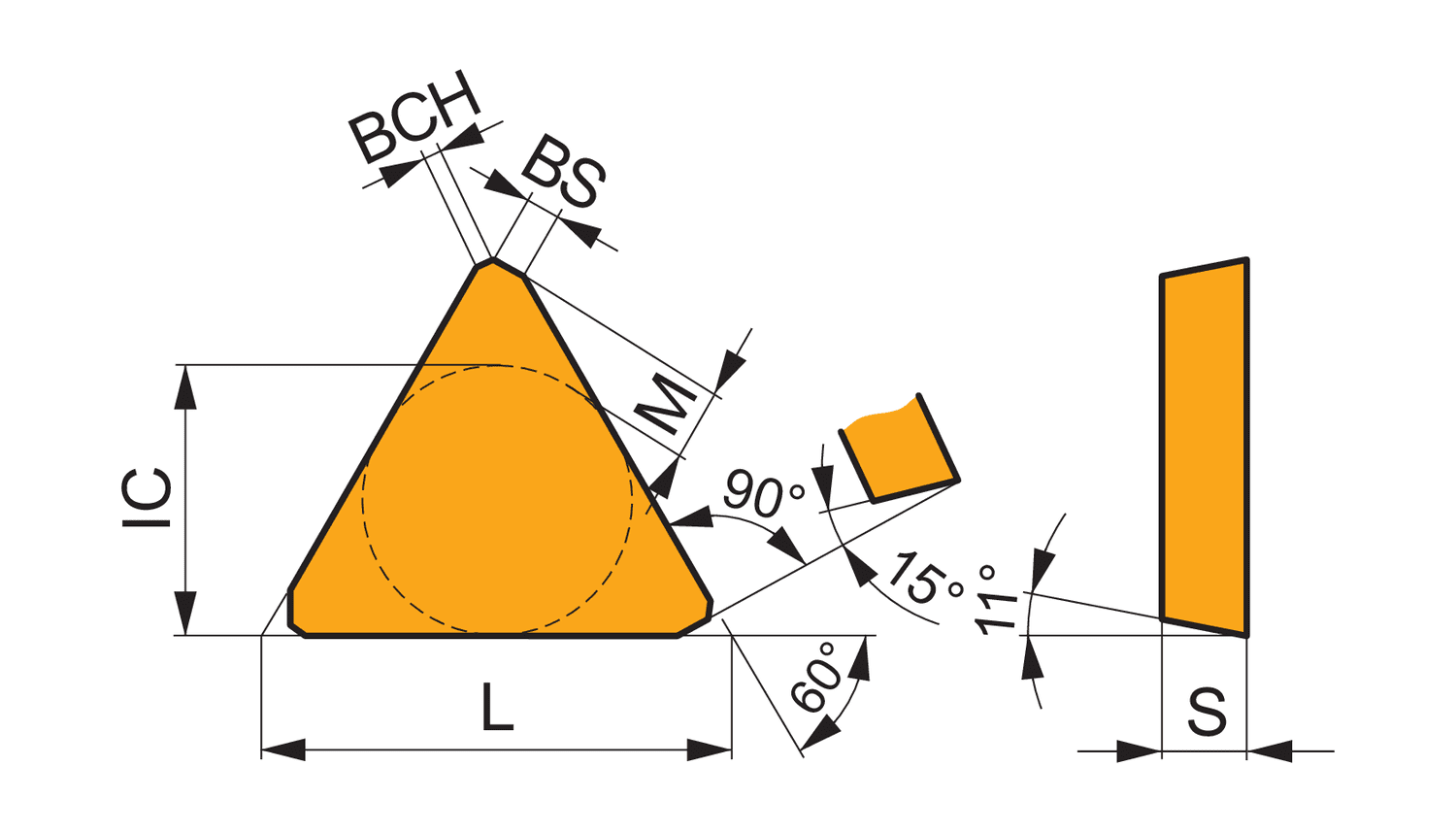

Single-sided milling insert TPKN 2204 with a plane rake surface, triangular for a maximum depth of cut of .6693", with " corner radius, an indexing accuracy according to ISO-tolerance class-K with rounded cutting edges, 8215 PVD coated fine grained WC-Co carbide within ISO-grade range K10-K25 for machining of cast-iron
- Product Name ISO: TPKN 2204PDER:8215
- Ordering Code ANSI: TPKN 43PDER:8215
- EDP Number: 6753422
- Coating: 8215
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 17 |
| Inscribing Circle Dia. (Mm.) | 12.7 |
| Insert Thickness (Mm.) | 4.76 |
| Max Depth of Cut (In.) | 0.669 |
| Coating | 8215 |
