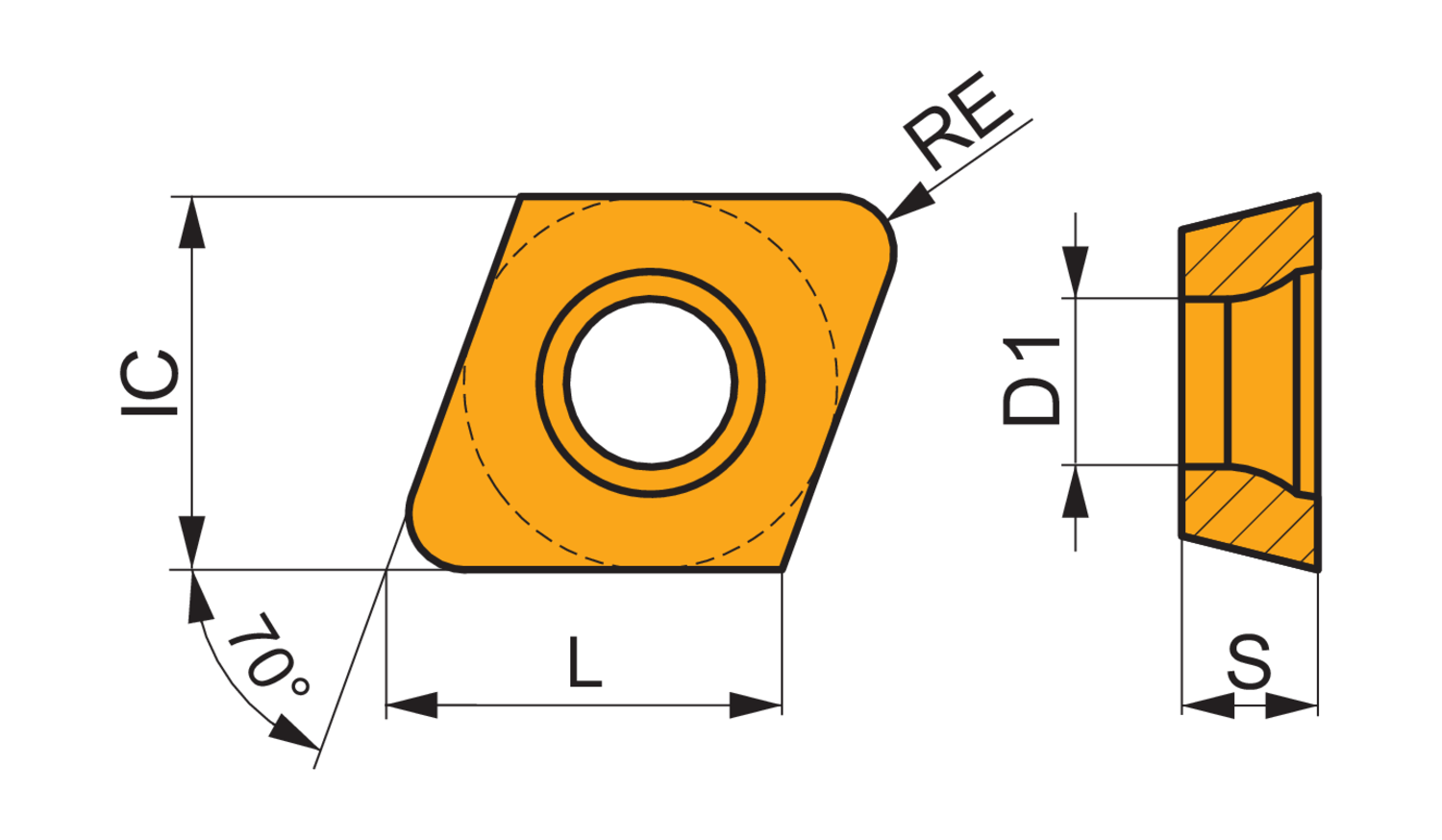

Single-sided milling insert XDHW 0702 with a plane rake surface, 70° rhomboid for a maximum depth of cut of .0394", with .0394" corner radius, an indexing accuracy according to ISO-tolerance class-H with rounded cutting edges, M8310 PVD coated fine grained WC-Co carbide within ISO-grade ranges K01-K10 and H05-H15 for machining of cast-iron and hardened material
- Product Name ISO: XDHW 070210EN:M8310
- Ordering Code ANSI: XDHW 070210EN:M8310
- EDP Number: 6756267
- Coating: M8310
- Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 1 |
| Corner Radius (Mm.) | 1 |
| Fixing Hole Diameter (Mm.) | 2.95 |
| Inscribing Circle Dia. (Mm.) | 6.5 |
| Insert Thickness (Mm.) | 2.38 |
| Max Depth of Cut (In.) | 0.039 |
| Coating | M8310 |
