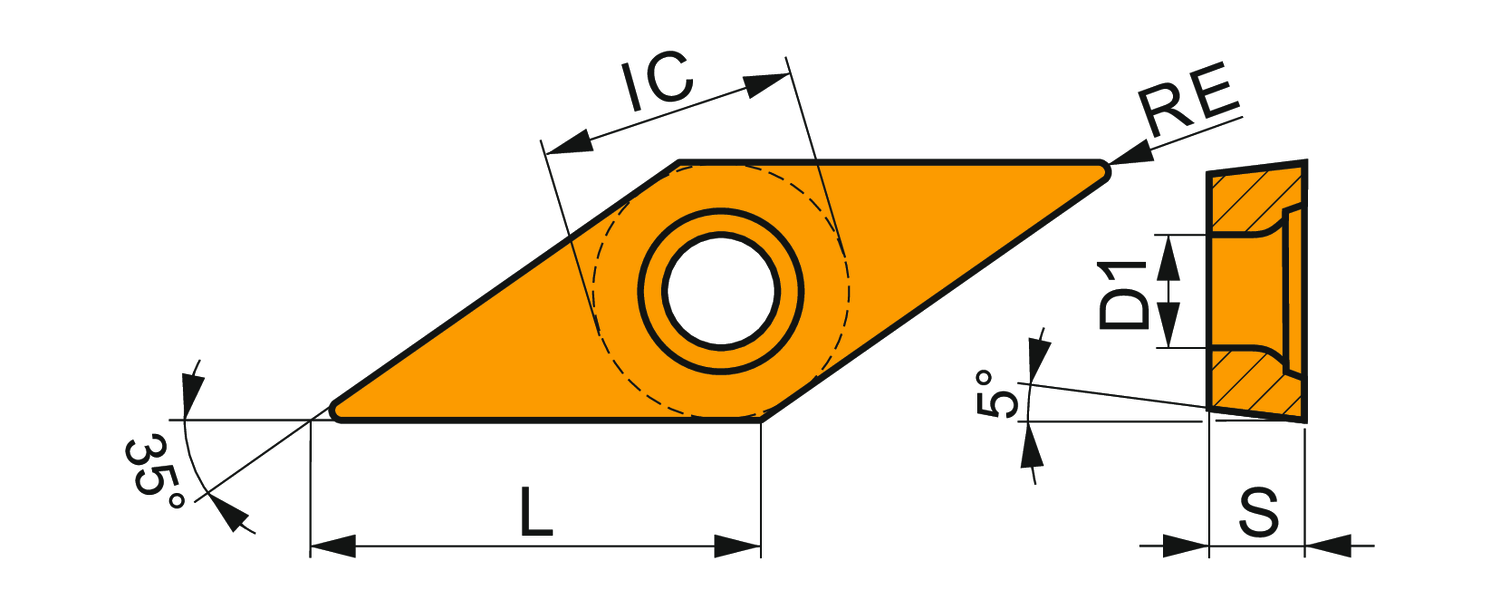

Single-sided positive turning insert, 35° rhomboid with 5° clearance, inscribed circle diameter of 1/4", 1/8" thick, 1/128" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker FM, in grade T8315, a PVD coated fine grained WC-Co carbide within ISO range M05-M20, for fine to medium machining of stainless-steels
- Product Name ISO: VBMT 110302E-FM:T8315
- Ordering Code ANSI: VBMT 220.5-FM:T8315
- EDP Number: 6753628
- Coating: T8315
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 2 |
| Corner Radius (Mm.) | 0.2 |
| Fixing Hole Diameter (Mm.) | 2.8 |
| Inscribing Circle Dia. (Mm.) | 6.35 |
| Insert Thickness (Mm.) | 3.18 |
| Max Depth of Cut (In.) | 0.079 |
| Insert Geometry | Positive |
| Coating | T8315 |
