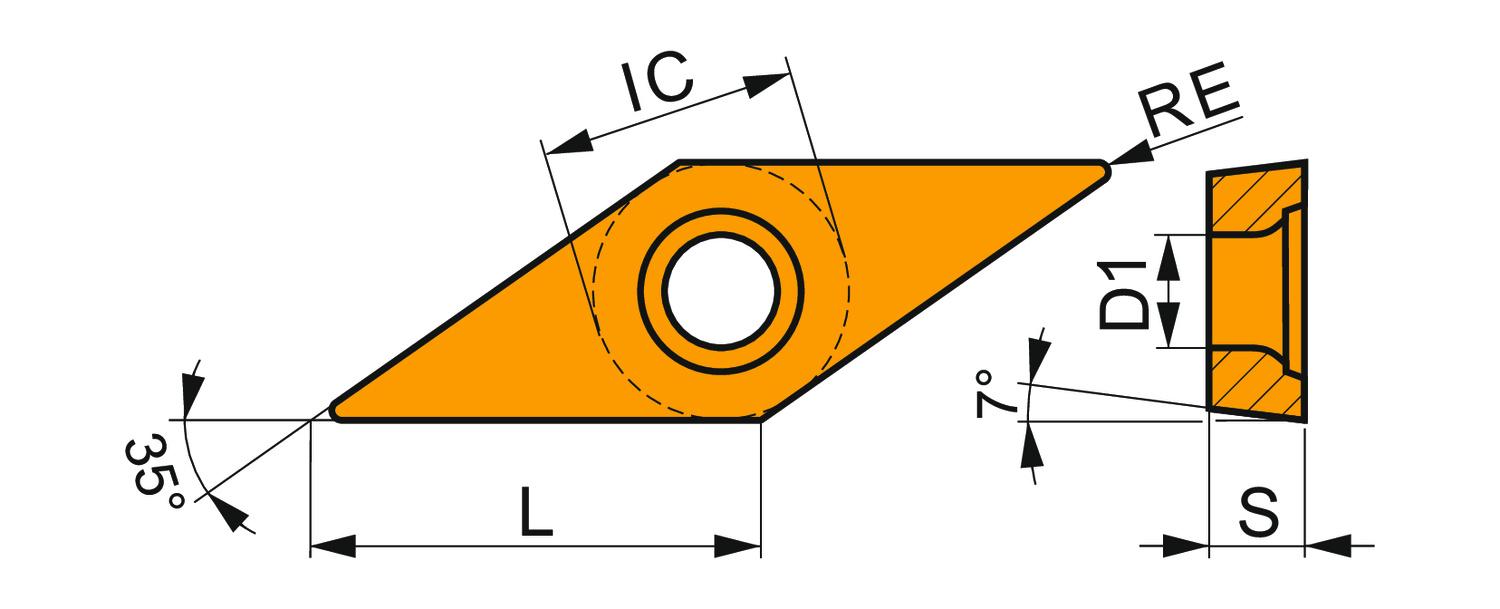

Single-sided positive turning insert, 35° rhomboid with 7° clearance, inscribed circle diameter of 5/32", 3/32" thick, 1/128" nose radius, indexing accuracy according to ISO-tolerance class- G, , chip-breaker AL with sharp cutting edges, in grade HF7, an uncoated fine grained WC-Co carbide within ISO range N10-N25, for fine to heavy machining of non-ferrous metals
- Product Name ISO: VCGT 070202F-AL:HF7
- Ordering Code ANSI: VCGT 1.21.50.5F-AL:HF7
- EDP Number: 6756194
- Coating: HF7
- Material Application Priority Usage: N - Non-ferrous metals (metals including alloys without an appreciable amount of iron)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 1.8 |
| Corner Radius (Mm.) | 0.2 |
| Fixing Hole Diameter (Mm.) | 2.2 |
| Inscribing Circle Dia. (Mm.) | 3.97 |
| Insert Thickness (Mm.) | 2.38 |
| Max Depth of Cut (In.) | 0.071 |
| Insert Geometry | Positive |
| Coating | HF7 |
