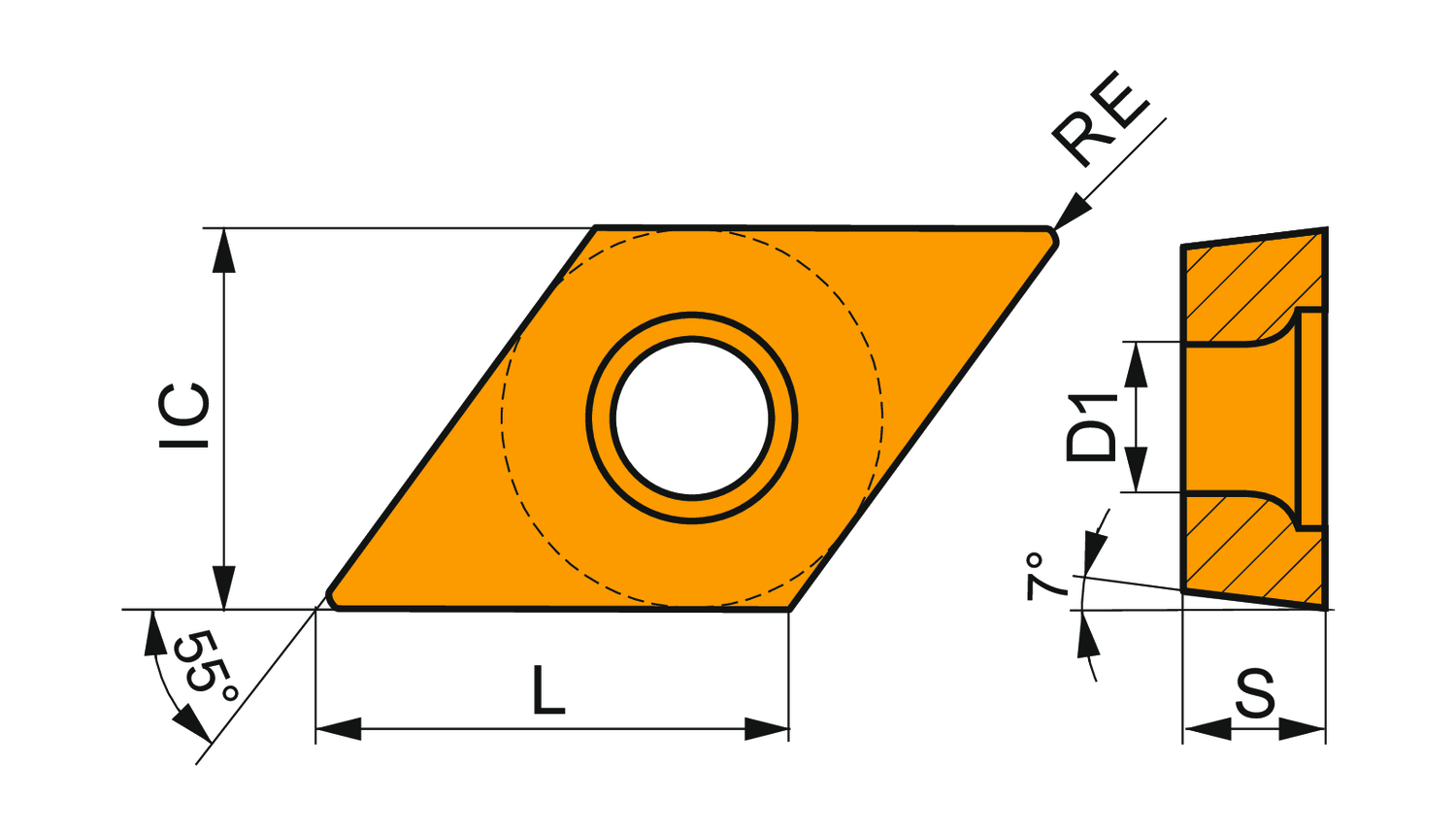

Single-sided positive turning insert, 55° rhomboid with 7° clearance, inscribed circle diameter of 0.375 inch, 0.156 inch thick, 0.016 inch nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM with rounded cutting edges, in grade T8415.
- Product Name ISO: DCMT 11T304E-FM:T8415
- Ordering Code ANSI: DCMT 32.51-FM:T8415
- EDP Number: 8553230
- Coating: T8415
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Corner Radius (Mm.) | 0.4 |
| Fixing Hole Diameter (Mm.) | 4.4 |
| Inscribing Circle Dia. (Mm.) | 9.525 |
| Insert Thickness (Mm.) | 3.97 |
| Insert Geometry | Positive |
| Coating | T8415 |
