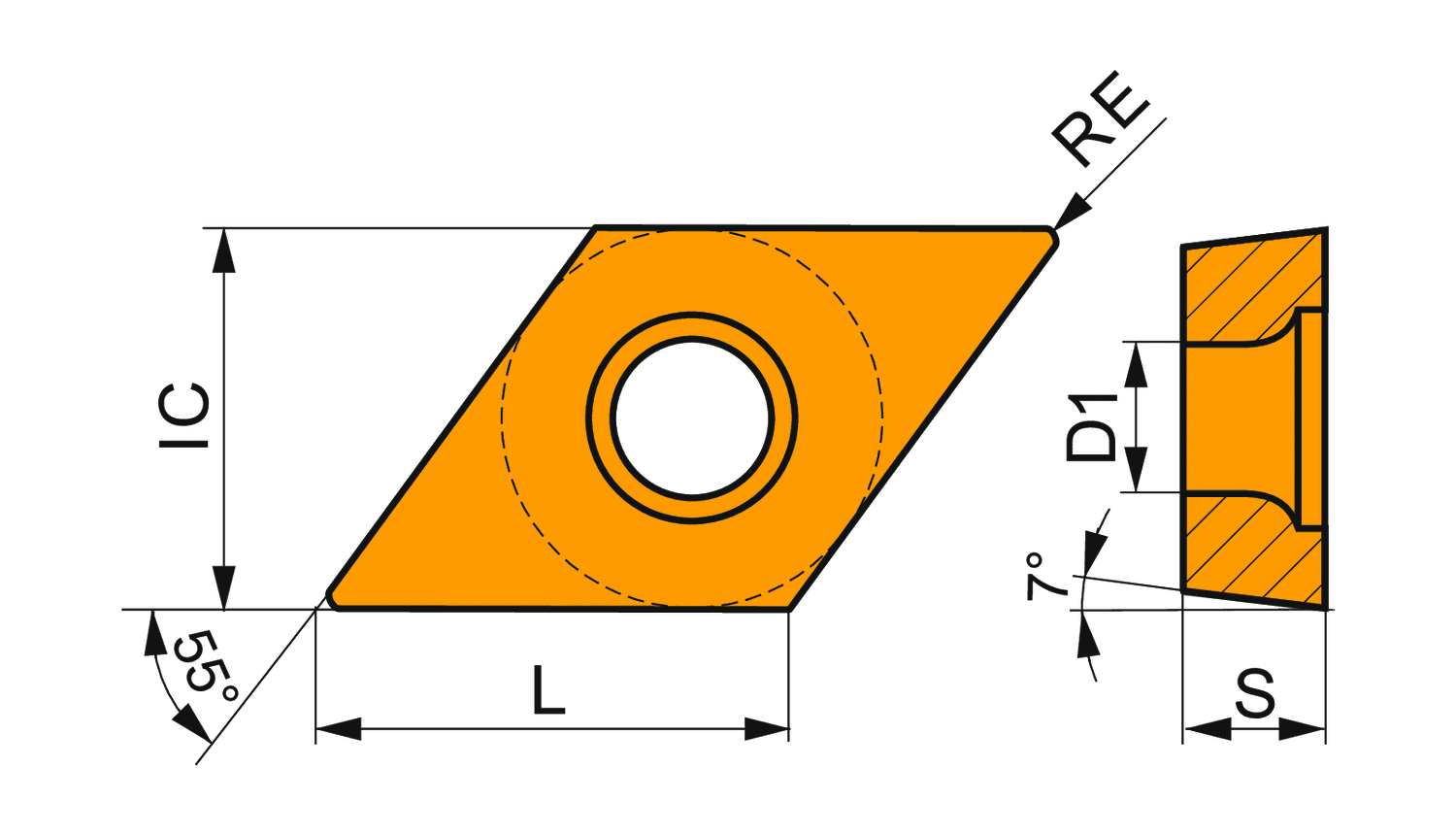

Single-sided positive turning insert, 55° rhomboid with 7° clearance, inscribed circle diameter of 3/8", 5/32" thick, 1/32" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker FM, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P15-P35 and M10-M30, for fine to medium machining of steels and stainless-steels
- Product Name ISO: DCMT 11T308E-FM:T9325
- Ordering Code ANSI: DCMT 32.52-FM:T9325
- EDP Number: 6753785
- Coating: T9325
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 3 |
| Corner Radius (Mm.) | 0.8 |
| Fixing Hole Diameter (Mm.) | 4.4 |
| Inscribing Circle Dia. (Mm.) | 9.525 |
| Insert Thickness (Mm.) | 3.97 |
| Max Depth of Cut (In.) | 0.118 |
| Insert Geometry | Positive |
| Coating | T9325 |
