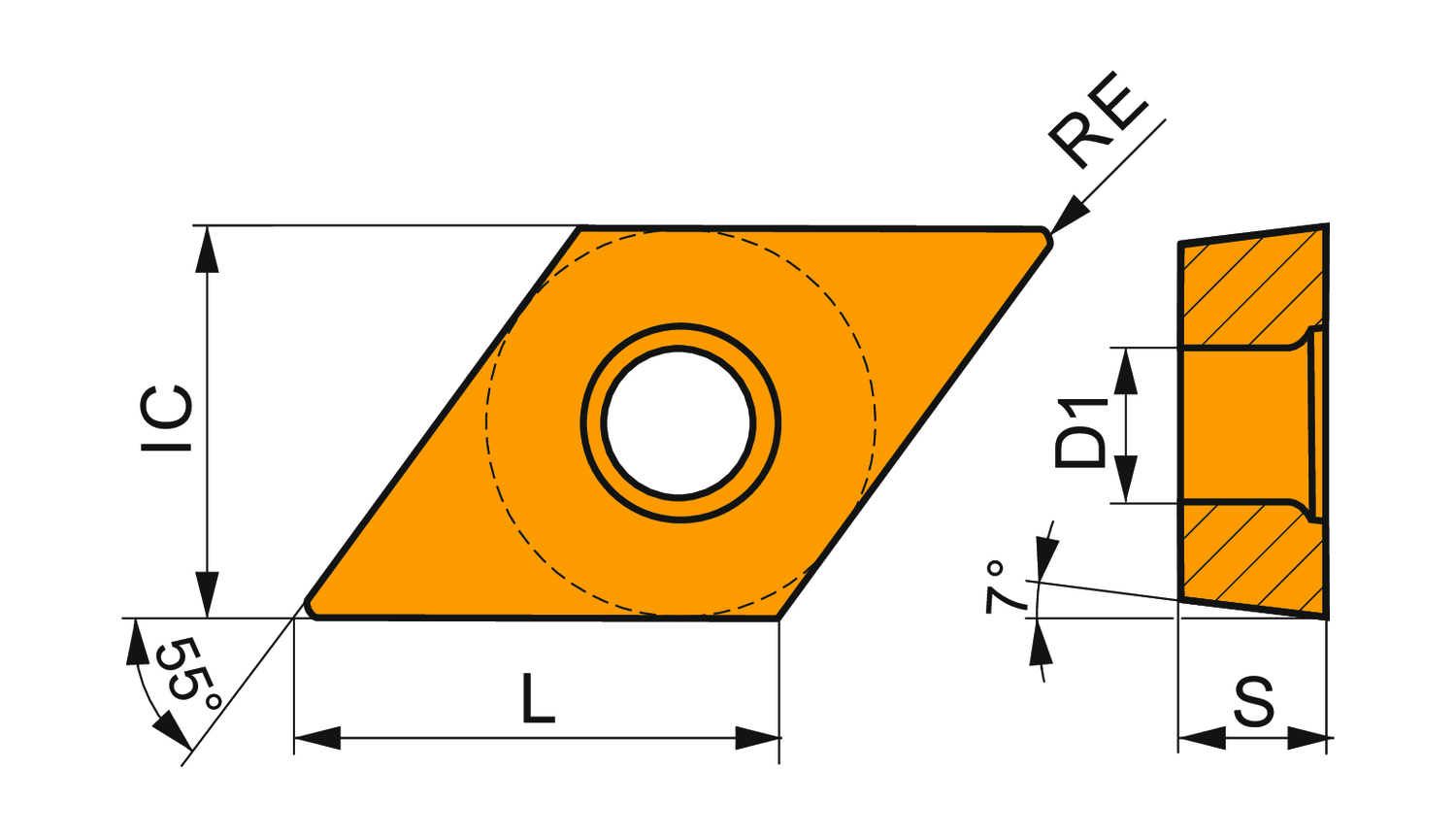

Single-sided positive turning insert, 55° rhomboid with 7° clearance, inscribed circle diameter of 9.525mm, 3.97mm thick, 0.1mm nose radius, indexing accuracy according to ISO-tolerance class-G, chip-breaker SF3 with rounded cutting edges, in grade T6310, a PVD coated extra fine grained WC-Co carbide within ISO ranges M01-M15 and S01-S15, for fine to medium machining of stainless-steels and super-alloys
- Product Name ISO: DCGT 11T301E-SF3:T6310
- Ordering Code ANSI: DCGT 32.50.2-SF3:T6310
- EDP Number: 7600316
- Coating: T6310
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 1.8 |
| Corner Radius (Mm.) | 0.1 |
| Fixing Hole Diameter (Mm.) | 4.4 |
| Inscribing Circle Dia. (Mm.) | 9.525 |
| Insert Thickness (Mm.) | 4.22 |
| Max Depth of Cut (In.) | 0.071 |
| Insert Geometry | Positive |
| Coating | T6310 |
