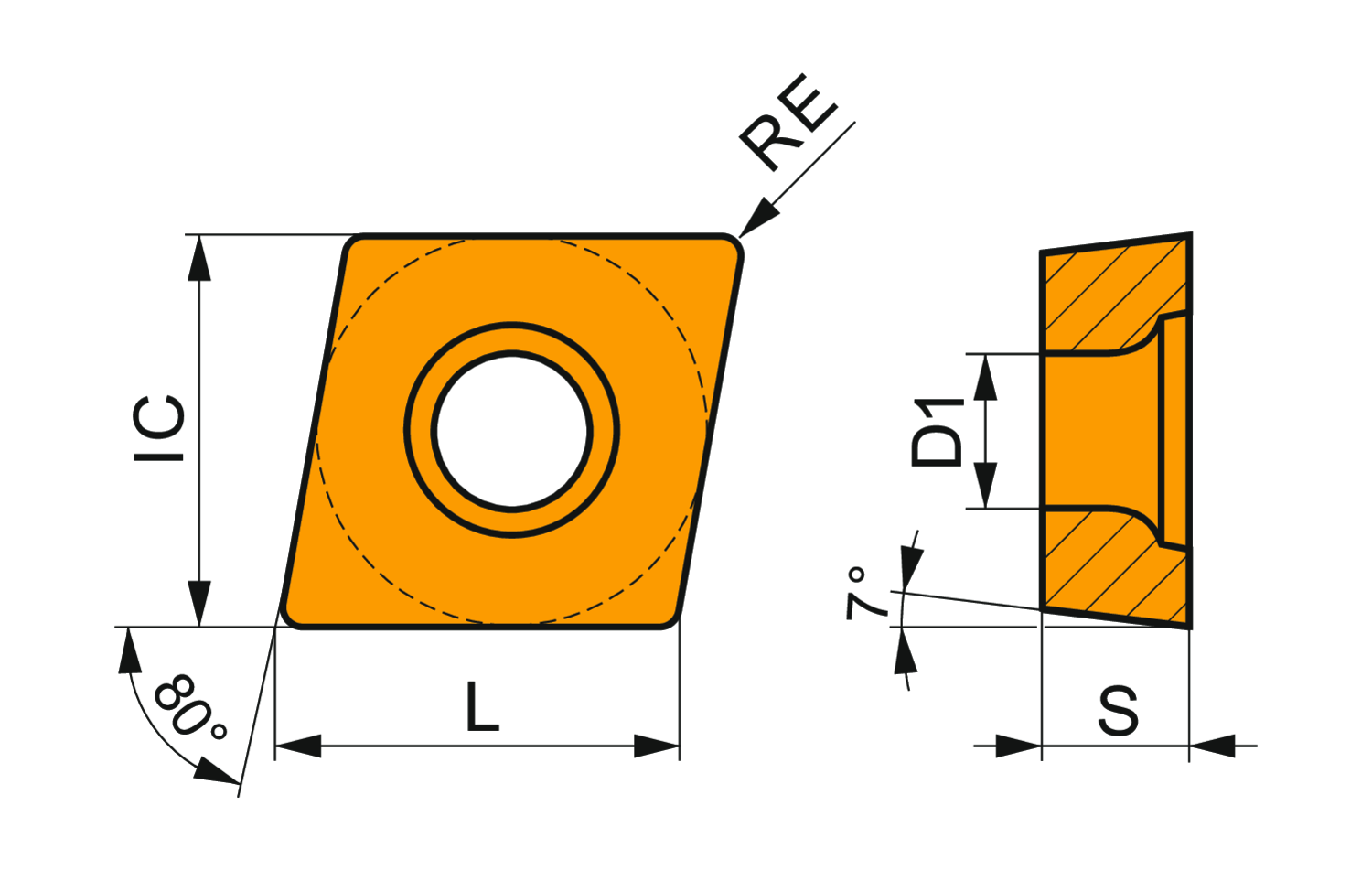

Single-sided positive turning insert, 80° rhomboid with 7° clearance, inscribed circle diameter of 0.25 inch, 0.094 inch thick, 0.016 inch nose radius and indexing accuracy according to ISO-tolerance class-M, in grade T8415.
- Product Name ISO: CCMW 060204:T8415
- Ordering Code ANSI: CCMW 21.51:T8415
- EDP Number: 8553217
- Coating: T8415
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 4.2 |
| Corner Radius (Mm.) | 0.4 |
| Fixing Hole Diameter (Mm.) | 2.8 |
| Inscribing Circle Dia. (Mm.) | 6.35 |
| Insert Thickness (Mm.) | 2.38 |
| Max Depth of Cut (In.) | 0.165 |
| Insert Geometry | Positive |
| Coating | T8415 |
