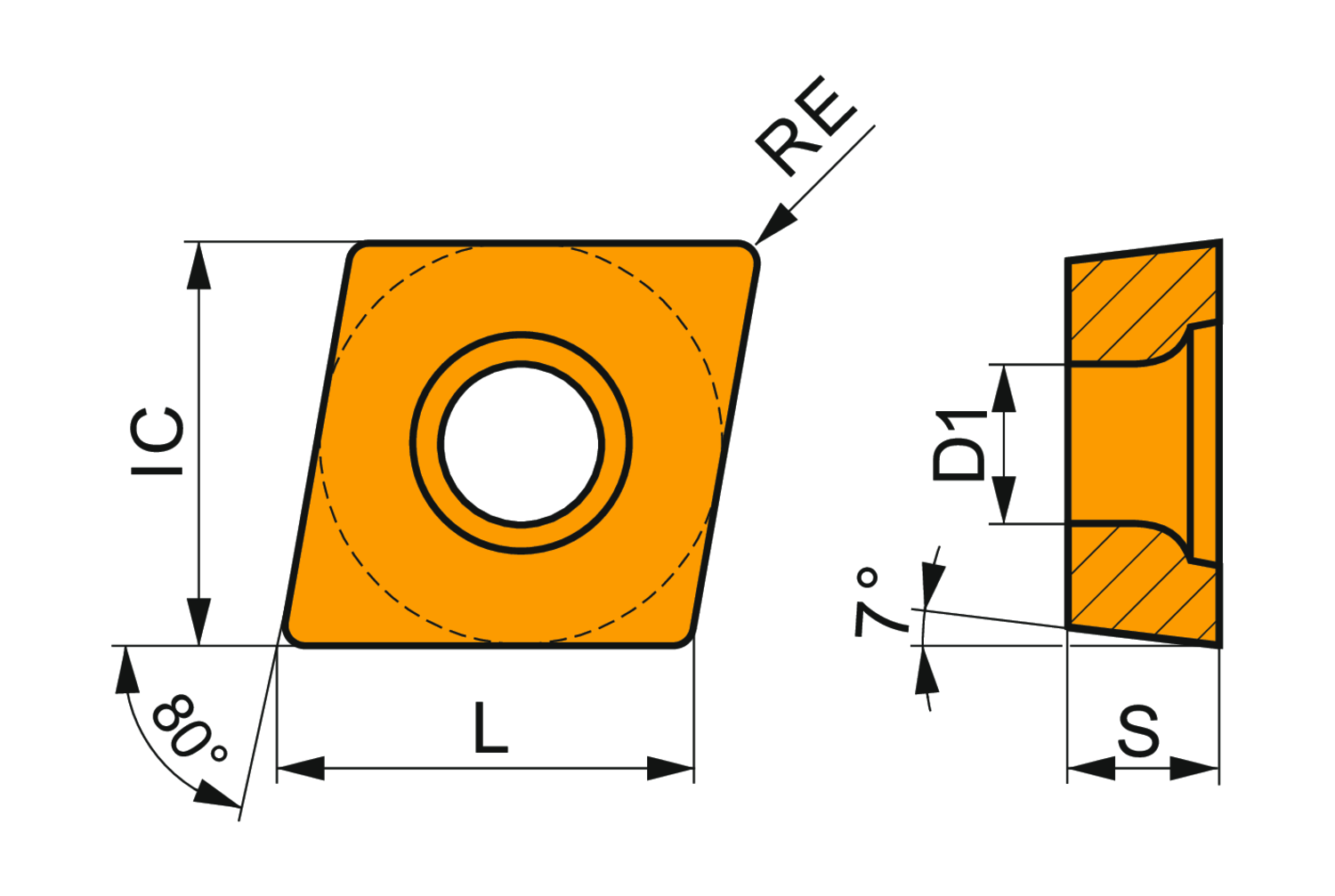

Single-sided positive turning insert, 80° rhomboid with 7° clearance, inscribed circle diameter of 0.375 inch, 0.156 inch thick, 0.016 inch nose radius, indexing accuracy according to ISO-tolerance class-G, chip-breaker SF3 with rounded cutting edges, in grade T8415.
- Product Name ISO: CCGT 09T304E-SF3:T8415
- Ordering Code ANSI: CCGT 32.51-SF3:T8415
- EDP Number: 8553197
- Coating: T8415
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 2.8 |
| Corner Radius (Mm.) | 0.4 |
| Fixing Hole Diameter (Mm.) | 4.4 |
| Inscribing Circle Dia. (Mm.) | 9.525 |
| Insert Thickness (Mm.) | 4.22 |
| Max Depth of Cut (In.) | 0.11 |
| Insert Geometry | Positive |
| Coating | T8415 |
