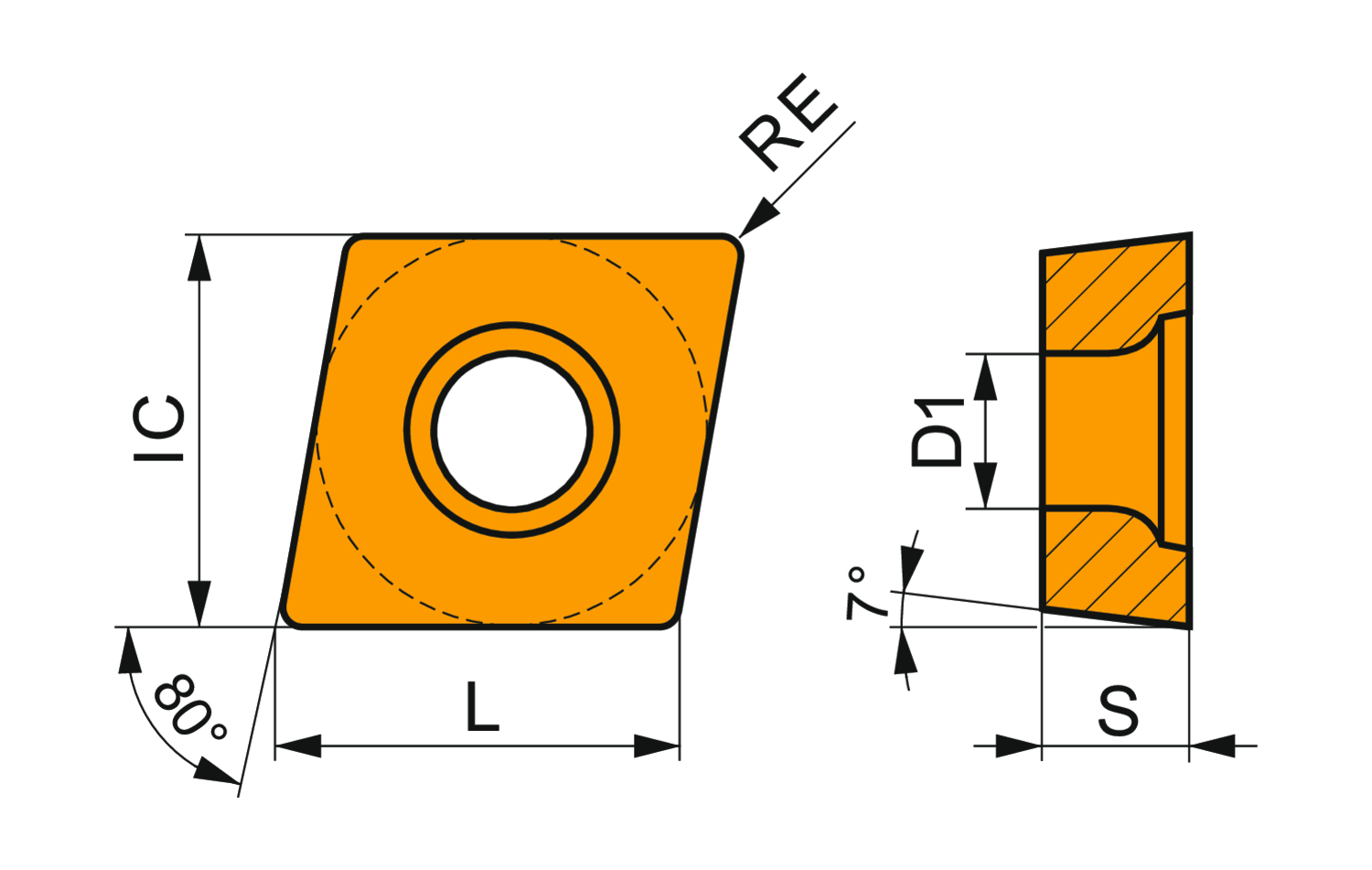

Single-sided positive turning insert, 80° rhomboid with 7° clearance, inscribed circle diameter of 0.375 inch, 0.156 inch thick, 0.031 inch nose radius and indexing accuracy according to ISO-tolerance class-M, in grade T8415.
- Product Name ISO: CCMW 09T308:T8415
- Ordering Code ANSI: CCMW 32.52:T8415
- EDP Number: 8553219
- Coating: T8415
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 6.3 |
| Corner Radius (Mm.) | 0.8 |
| Fixing Hole Diameter (Mm.) | 4.4 |
| Inscribing Circle Dia. (Mm.) | 9.525 |
| Insert Thickness (Mm.) | 3.97 |
| Max Depth of Cut (In.) | 0.248 |
| Insert Geometry | Positive |
| Coating | T8415 |
