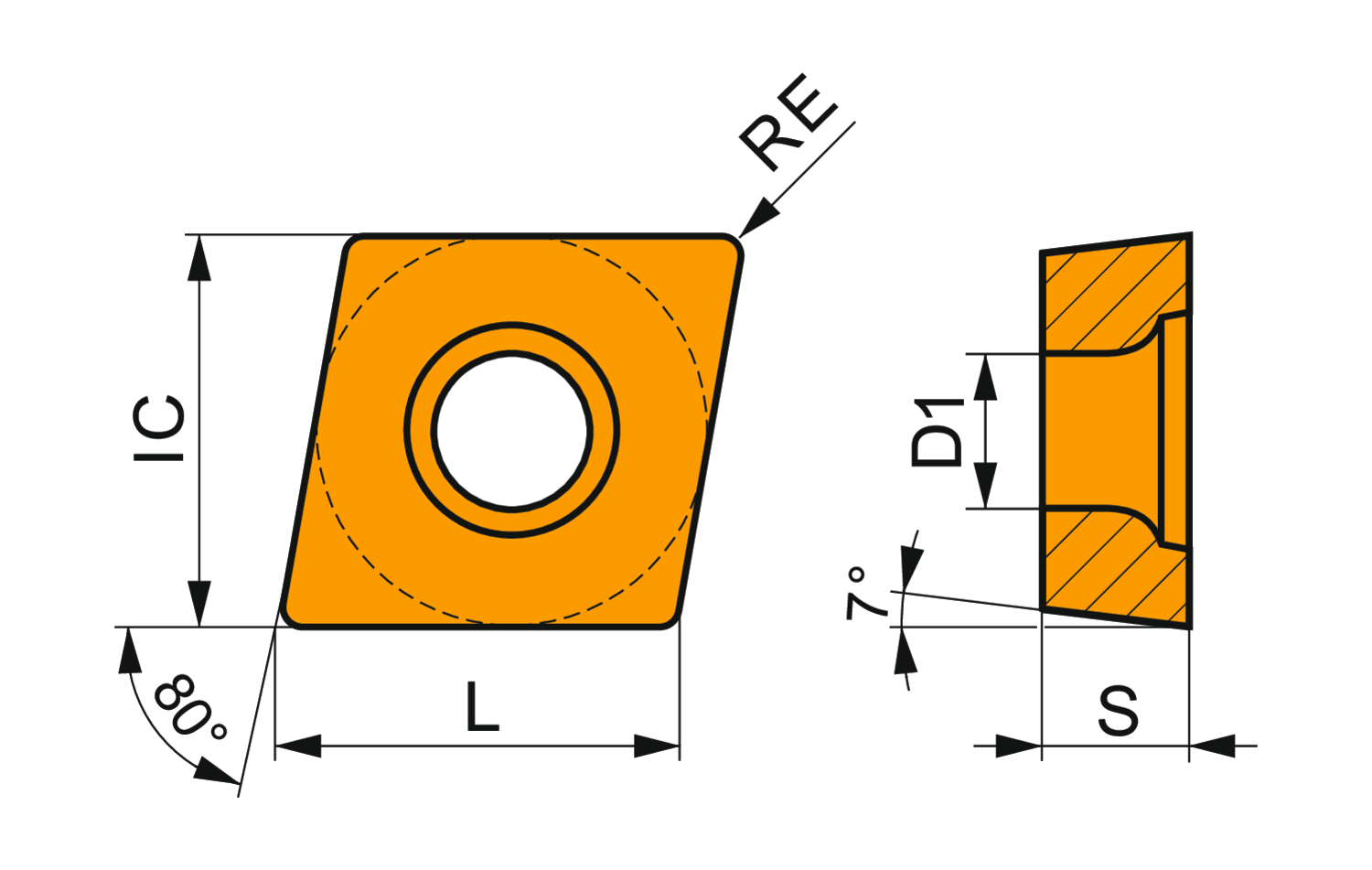

Single-sided positive turning insert, 80° rhomboid with 7° clearance, inscribed circle diameter of 1/2", 3/16" thick, 1/64" nose radius and indexing accuracy according to ISO-tolerance class- M, in grade T5315, a MT-CVD coated WC-Co carbide within ISO range K10-K25, for fine to medium machining of cast-irons
- Product Name ISO: CCMW 120404:T5315
- Ordering Code ANSI: CCMW 431:T5315
- EDP Number: 6922809
- Coating: T5315
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 8.4 |
| Corner Radius (Mm.) | 0.4 |
| Fixing Hole Diameter (Mm.) | 5.5 |
| Inscribing Circle Dia. (Mm.) | 12.7 |
| Insert Thickness (Mm.) | 4.76 |
| Max Depth of Cut (In.) | 0.331 |
| Insert Geometry | Positive |
| Coating | T5315 |
